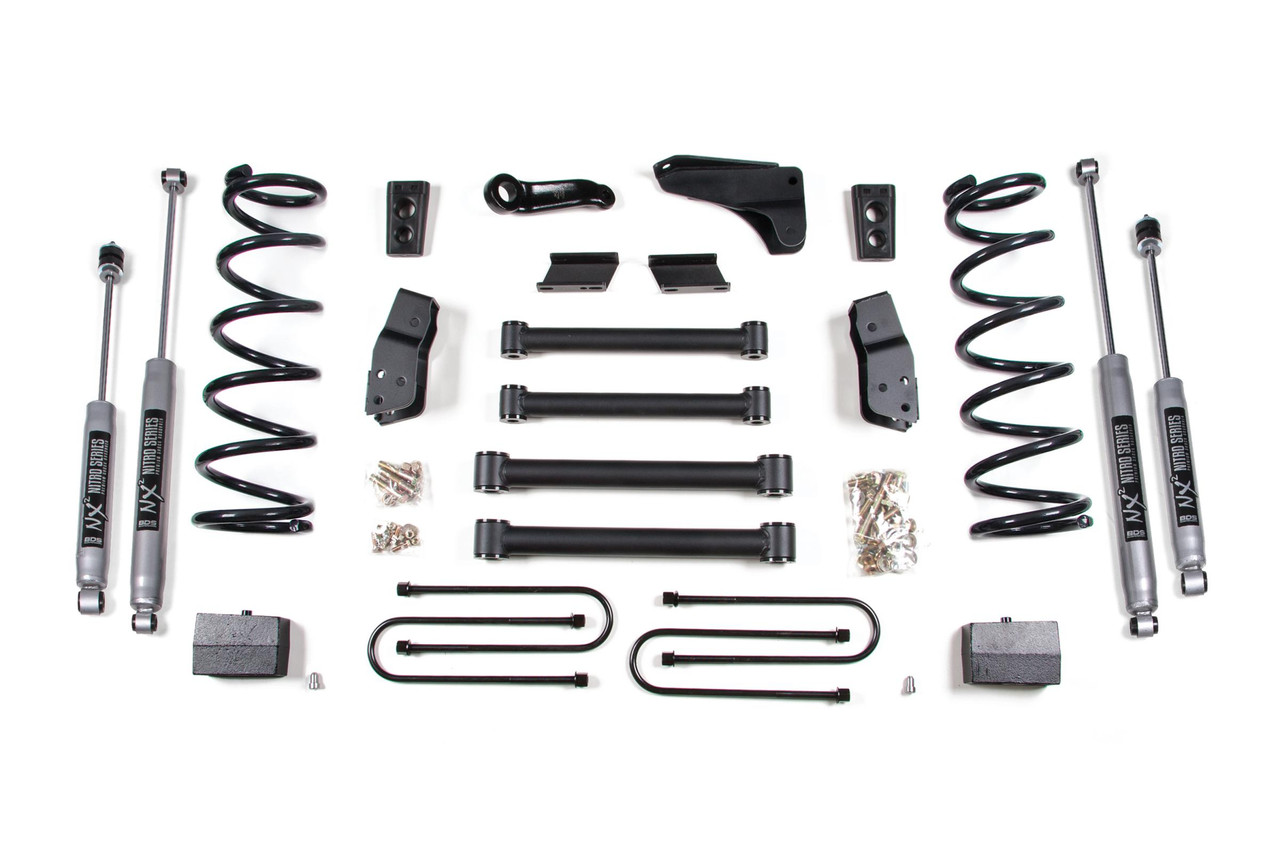

BDS SUSPENSION BDS236H 6 INCH LIFT KIT DODGE RAM 2500/3500 03-07 4WD DIESEL LEAF SPRINGS 3.5 INCH AXLE NX2 NITRO SHOCKS

Improve the ride and style of your 2003-2007 Dodge RAM 2500 and 3500 4WD diesel powered truck with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36 inch Tires.

BDS engineered new lower control arms are longer than stock to rotate the axle for proper alignment and built a relocation mounting bracket to flatten out the angle of the upper control arm to maintain your factory handling characteristics.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, all four control arms plus relocation bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4 inch

1. Measure rear axle tube before ordering. Some 4 inch axle models with dual overloads will require u-bolt 4068.
2. Although unusual, if driveline vibration occurs, order appropriate transfer case drop kit 122602 (03-05 Diesel Auto), 122605 (06-08 Diesel Auto), or 122606 (03-13 Diesel Auto with OE mount P/N 52121938AA) available in options or t-case index kit. #122801 auto or #122802 for manual transmission.
3. Optional transfer case drop kits fit automatic transmission models only.
4. Exhaust modification will be required for dual rear shock kit 122009 on 6.7L Diesel models.
5. If your Truck has had the steering gear box changed and the sector shaft diameter measures 1-1/2 inch-1-5/8 inch you will need to add part # BDS082404 to your kit.

• Tubular short arms improve strength, handling and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option

Leaf Springs

• BDS leaf springs provide a 5 inch rear lift and come with u-bolts.
• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Axle Diameter 3.5 Inch Axle

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Kit Components:

• Includes two BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring, UPC Code 658848611294
• Includes one BDS012611, 03-07 Dodge 3/4-1 ton Box Kit, UPC Code 658848612734
• Includes one BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit, UPC Code 658848616398
• Includes two BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609600
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709
• Includes four UBT4064, 9/16 x 3-1/2 x 12-1/2 Round U-bolt, UPC Code 711745613027

Elevate the presence of your 2003-2007 Dodge RAM 2500 or 3500 4WD diesel truck with the BDS SUSPENSION BDS236H 6 Inch Lift Kit. This comprehensive lift kit is meticulously designed to enhance both performance and aesthetics, providing an impressive six inches of lift while allowing clearance for tires up to 36 inches.

BDS's innovative engineering includes longer lower control arms that improve axle alignment without compromising factory handling capabilities. The kit features diesel-specific Pro-Ride coil springs in the front, providing a smooth, progressive ride over rough terrain. Accompanied by all necessary control arms, a forged drop pitman arm, and a track bar bracket for optimal steering correction, this kit ensures a seamless upgrade.

In the rear, heavy-duty cast steel blocks combined with longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks deliver exceptional support and comfort while maintaining factory payload ratings. The multi-leaf progressive design of the BDS leaf springs enhances stability and reduces axle wrap, providing a controlled driving experience.

The BDS236H Lift Kit includes components that are straightforward to install, with heavy-duty control arm brackets and a front sway bar correction that guarantees excellent handling performance. The nitrogen-charged NX2 shocks deliver enhanced ride quality and off-road prowess, thanks to their twin-tube design and precision valving.

Whether you're navigating rocky trails or cruising on the highway, this lift kit transforms your truck into a formidable force with uncompromised capability and style. It's an investment in both performance and aesthetics that redefines your off-road experience. Trust BDS Suspension for quality and reliability on any adventure.
