BDS SUSPENSION BDS2306 RECOIL TRACTION BAR KIT RAM 3500 19-24

Improve traction on your 2019-2024 Ram 3500 4WD without limiting wheel travel with a BDS Recoil Traction Bar Mounting Kit, made with heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap.

Full float design for bind-free performance and can be installed with a range of lift heights.

Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut.

Using a forged housing with large 1-1/4-nch x 12 threaded shank, a single sided snap ring and 1-piece flex ball, the flex ends are capable of up to 15 degrees of misalignment in either direction.

At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Traction bar ends are greaseable and rebuildable
• Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Install Time:

• 3-4 hrs Moderately Easy

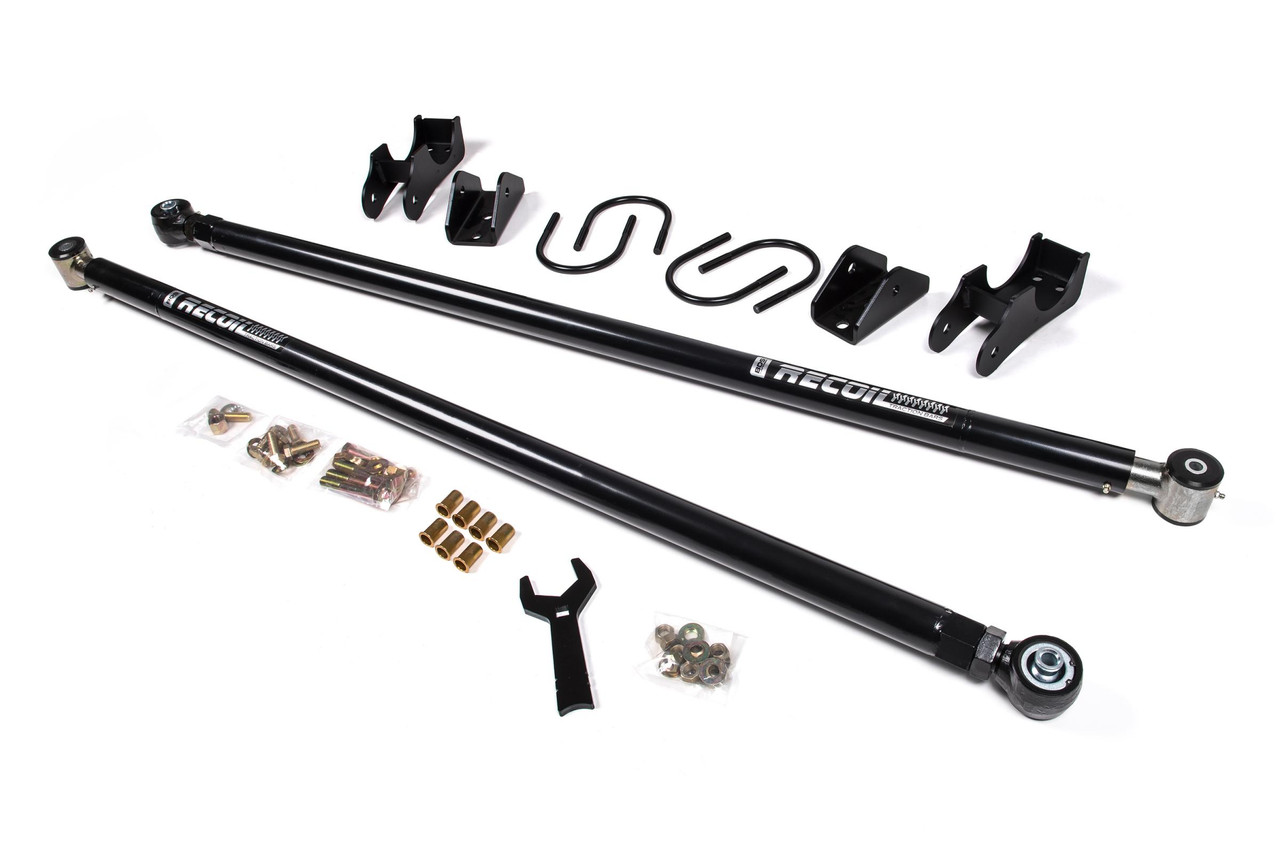

Kit Components

Includes one BDS122407, 2019-2024 Ram 3500 Recoil Traction Bar Mounting Kit, UPC Code 658848619504
Includes one BDS123409, Recoil Traction Bar Box Kit, UPC Code 711745604230

Elevate your Ram 3500’s performance with the BDS Suspension BDS2306 Recoil Traction Bar Kit, meticulously engineered for 2019-2024 models. This advanced traction solution enhances grip on rough terrains without restricting vital wheel travel, ensuring a smooth ride while tackling challenging off-road conditions.

Crafted from durable 2-inch OD x 3/16-inch wall steel tubing, the BDS Recoil Traction Bar features a robust design, complete with a threaded bung welded towards the axle and a precision CNC-machined end at the frame. The innovative full float design allows for bind-free functionality, making it compatible with various lift heights.

Key to its performance is the adjustable axle wrap control provided by dual-stage resistance springs. These internal compression springs can be easily loaded or unloaded while still installed on the vehicle, giving you the flexibility to tailor your suspension to match specific driving conditions. At the frame end, a durometer-specific polyurethane bushing enhances stability and allows for smooth operation.

Each traction bar end is designed for greaseability and rebuildability, ensuring longevity and ease of maintenance. The installation process is straightforward, requiring only minor drilling for frame-mounted brackets, and can be completed in approximately 3-4 hours with moderate skill.

With components including the BDS122407 Recoil Traction Bar Mounting Kit and the BDS123409 Recoil Traction Bar Box Kit, this product is engineered to withstand the toughest demands. Transform your Ram 3500’s traction performance seamlessly while maintaining optimal suspension articulation, making every journey an exceptional driving experience.
