BDS SUSPENSION BDS2301 RECOIL TRACTION BAR KIT SILVERADO/SIERRA 2500 / 3500 HD 11-19

Improve traction on your 2011-2019 Chevy Silverado or GMC Sierra 2500 HD/3500 HD SRW/DRW without limiting wheel travel with a BDS Recoil Traction Bar Mounting Kit, made with heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap. Full float design for bind-free performance and can be installed with a range of lift heights.

Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut.

Using a forged housing with large 1-1/4-nch x 12 threaded shank, a single sided snap ring and 1-piece flex ball, the flex ends are capable of up to 15 degrees of misalignment in either direction.

At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.

• Adjustable axle wrap control using dual-stage resistance springs
• Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation
• Spring preload can be adjusted on the vehicle without disassembling the traction bar
• Traction bar ends are greaseable and rebuildable
• Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation

Install Time: 3-4 Hours Moderately Easy

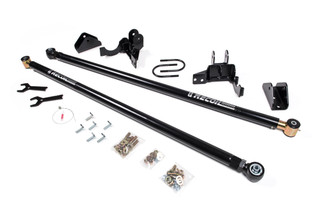

Kit Components:

Includes one BDS121408, 11-15 HD Recoil Mounting Kit, UPC Code 658848619030
Includes one BDS123409, Recoil Traction Bar Box Kit, UPC Code 711745604230

The BDS Suspension BDS2301 Recoil Traction Bar Kit for the 2011-2019 Chevy Silverado and GMC Sierra 2500/3500 HD models is engineered to enhance your vehicle's traction while preserving its wheel travel capabilities. This sophisticated kit aims to diminish axle wrap, providing a smoother and more efficient driving experience.

Constructed from 2-inch outer diameter, 3/16-inch wall steel tubing, the kit features a robust design with a threaded bung welded toward the axle, complemented by a CNC-machined end at the frame. The ultra-durable large-forged flex end coupled with a jam nut ensures that this traction bar can handle the rigors of heavy-duty use. The full float design eliminates binding, allowing for seamless performance across varying lift heights and ensuring unhindered suspension articulation.

The innovative dual-stage internal compression springs enable adjustable axle wrap control directly on the vehicle, without the need for disassembly. This flexibility is complemented by greaseable and rebuildable traction bar ends, ensuring long-lasting durability and performance. At the frame end, a durometer-specific polyurethane bushing contributes to a refined ride quality, while the combination of snap rings and a one-piece flex ball provides up to 15 degrees of misalignment in either direction, accommodating diverse driving conditions.

Installation is straightforward, requiring only minor drilling for frame mount setup and taking approximately 3-4 hours with a moderately easy difficulty level. The kit comes complete with necessary components, including the BDS121408 Recoil Mounting Kit and BDS123409 Recoil Traction Bar Box Kit, making it a comprehensive solution for enhancing your heavy-duty pickup’s traction and handling capabilities. Elevate your driving experience with confidence and control with the BDS Recoil Traction Bar Kit.
