BDS SUSPENSION

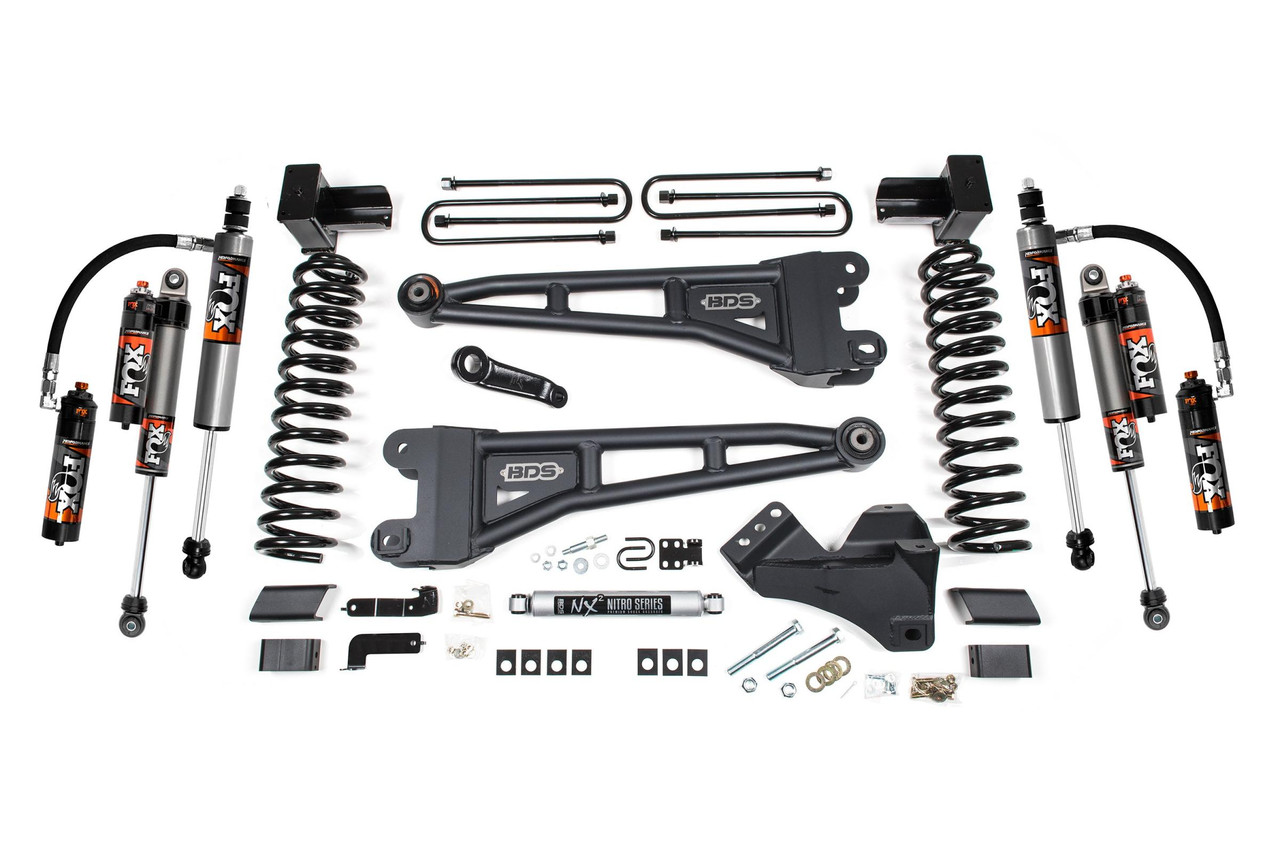

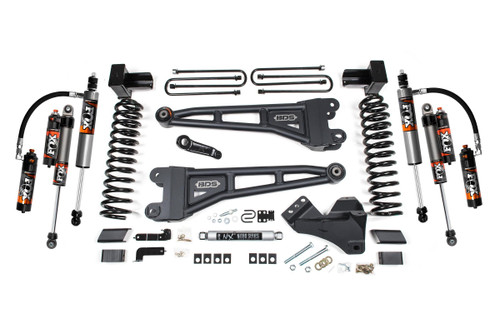

BDS SUSPENSION BDS2222FPE 4 INCH LIFT KIT W/ RADIUS ARM FORD F250/F350 SUPER DUTY 17-19 4WD DIESEL 5 INCH BLOCK 3 LEAF MAIN FOX 2.5 PERFORMANCE ELITE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS2222FPE
MPN:
BDS2222FPE
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS2222FPE 4 INCH LIFT KIT W/ RADIUS ARM FORD F250/F350 SUPER DUTY 17-19 4WD DIESEL 5 INCH BLOCK 3 LEAF MAIN FOX 2.5 PERFORMANCE ELITE SHOCKS
  • BDS SUSPENSION BDS2222FPE 4 INCH LIFT KIT W/ RADIUS ARM FORD F250/F350 SUPER DUTY 17-19 4WD DIESEL 5 INCH BLOCK 3 LEAF MAIN FOX 2.5 PERFORMANCE ELITE SHOCKS
$6,667.65

Description

Improve the ride on your 2017-2019 Ford F250 and F350 Super Duty diesel truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 5 inch
  1. If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  2. 37 x 12.50 Tires may require minor trimming.
  3. Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
  • Easy, 100 percent Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option

5 Inch Block with 3 Leaf Main

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

Kit Components:

  • Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458
  • Includes one BDS013516, 2017-2024 F250 5 inch Rear Block Kit -3 Leaf Main, UPC Code 658848613595
  • Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel, UPC Code 658848616527
  • Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
  • Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
  • Includes one FOX88326097, Kit: 2017-2024 Ford SD Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
  • Includes one FOX88326098, Kit: 2017-2023 Ford SD Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inch Lift, Dual Speed Compression Adjust

The BDS Suspension BDS2222FPE 4 Inch Lift Kit is a premium upgrade designed specifically for the 2017-2019 Ford F250 and F350 Super Duty diesel trucks, providing your vehicle with improved ride quality, stance, and off-road capability. This comprehensive lift kit seamlessly elevates your truck by four inches in the front and five inches in the rear, allowing for the installation of larger 37-inch tires while ensuring a balanced and level stance.

At the core of this kit are diesel-specific Pro-Ride coil springs, engineered to deliver a smooth, predictable ride across various terrains. The heavy-duty tubular radius arms replace the factory components, offering superior strength, caster correction, and noise-free operation. In addition, a forged drop pitman arm and a precise track bar bracket enhance steering geometry, ensuring optimal handling and performance.

The rear features a high-strength fabricated lift block paired with longer u-bolts and brake line brackets, complemented by a set of either NX2 Nitro or FOX 2.5 Performance Elite shocks. The shocks are specifically valved for your truck, ensuring enhanced control whether you're on or off the road.

This lift kit is fully bolt-on, making installation straightforward and hassle-free. On the performance side, FOX 2.5 Performance Elite shocks are available as an upgrade, offering dual speed compression adjustments to tailor your ride to any terrain, load, or speed. The robust construction features an aluminum body and a heat-treated alloy steel shaft, ensuring longevity and durability.

With the BDS2222FPE kit, experience outstanding off-road capabilities without compromising on everyday drivability, making it an ideal choice for enthusiasts looking to enhance their Super Duty experience.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
