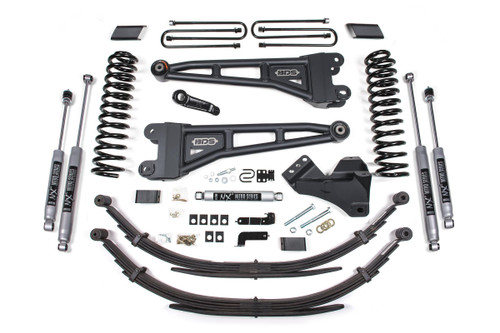

BDS SUSPENSION BDS2220FPE 4 INCH LIFT KIT W/ RADIUS ARM FORD F250/F350 SUPER DUTY 17-19 4WD DIESEL 5 INCH BLOCK 2 LEAF MAIN FOX 2.5 PERFORMANCE ELITE SHOCKS
- SKU:
- BDS2220FPE
- MPN:
- BDS2220FPE
- Shipping:
- Calculated at Checkout
Description
Improve the ride on your 2017-2019 Ford F250 and F350 Super Duty diesel truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 5 inch
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
- 37 x 12.50 Tires may require minor trimming.
- Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
- Easy, 100 percent Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Rear Lift Option
5 Inch Block 2 Leaf Main
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.
Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5
FOX 2.5 Performance Elite Series
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
- Front Lift Method: Coil Spring
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 5 inch
Kit Components:
- Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458
- Includes one BDS013517, 2017-2024 F250 5 inch Rear Block Kit - 2 Leaf Main (W/O Overload Springs), UPC Code 658848613601
- Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel, UPC Code 658848616527
- Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
- Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
- Includes one FOX88326097, Kit: 2017-2024 Ford SD Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326098, Kit: 2017-2023 Ford SD Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inch Lift, Dual Speed Compression Adjust
The BDS2220FPE includes diesel-specific Pro-Ride coil springs that ensure a smooth and controlled ride across varied terrains. Heavy-duty replacement radius arms are included to enhance durability and allow for caster adjustments, ensuring optimal steering geometry regardless of lift height. The forged drop pitman arm and track bar bracket facilitate precise steering correction, providing a safe and controlled off-road experience.
In the rear, a high-strength fabricated lift block paired with longer u-bolts and brake line brackets enhances stability and performance. The front two.5 Performance Elite shocks deliver premium ride quality while handling tough terrains with ease. For those seeking maximum off-road prowess, the option to upgrade to FOX shocks is available, featuring external reservoir designs that separate shock oil from high-pressure nitrogen for unparalleled performance.
Installation is straightforward with a 100 percent bolt-on design, eliminating the need for modifications. Whether you’re cruising city streets or tackling rugged trails, the Pro-Ride dual rate coil springs and fabricated steel blocks ensure a balanced stance from front to rear.
Choose the BDS2220FPE 4-inch Lift Kit for an exceptional upgrade that combines aesthetic appeal with robust functionality—proving that your Ford Super Duty is ready for anything. Drive with confidence, knowing BDS Suspension has engineered a product meticulously crafted for adventure and reliability.
