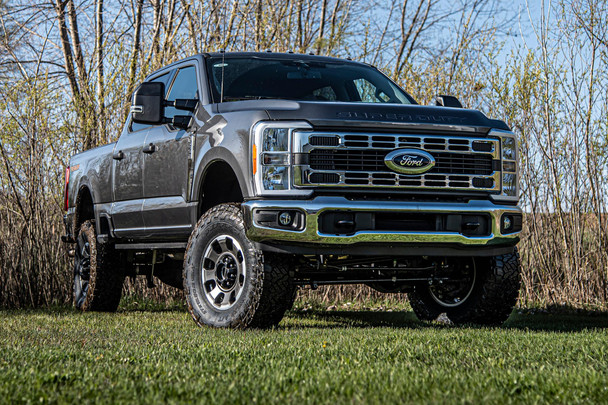

BDS SUSPENSION BDS2209H 5 INCH LIFT KIT W/ RADIUS ARM FORD F250/F350 SUPER DUTY 23-24 4WD GAS LEAF SPRINGS NX2 NITRO

Improve the ride on your 23-24 Ford Super Duty gas truck with this 5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4 inch

1. This kit is not compatible with trucks equipped with radius arm mounted ride height sensors.
2. Ford recommends the replacement of the pitman arm nut after each time it has been removed.
3. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
4. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
5. Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
6. Larger Tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and Tire fitment section.
7. Minor trimming may be necessary for clearance of 37x12.50 Tires on certain wheel setups.
8. Installation requires a torque wrench capable of 406 ft-lbs.
9. Trucks without top mounted overload springs will require (4) UBT4028.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option

Leaf Springs

• Reduces axle wrap and creates a more controlled and stable feel
• Multi-leaf progressive design for smooth ride
• Maintains factory payload weight ratings
• Anti-friction pads provide a smooth and quiet ride

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

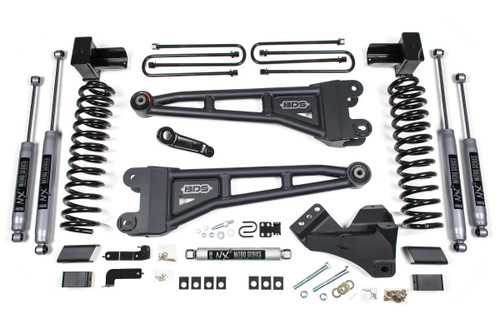

Kit Components:

• Includes two BDS003639, 2017-2024 Super Duty 6 inch Rear Leaf Spring, UPC Code 658848611409
• Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458
• Includes one BDS013438, 2017-2024 Ford F250/F350 4 inch Rear Leaf Spring Box Kit, UPC Code 658848613540
• Includes one BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit, UPC Code 658848616534
• Includes one BDS123263, 2023-2024 Ford F250/350 4wd Radius Arm Kit, Pair, UPC Code 711745612709
• Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85718, Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609563

Boost the performance and appearance of your 2023-2024 Ford F250 or F350 Super Duty gas truck with the BDS SUSPENSION BDS2209H 5-inch Lift Kit with Radius Arm. This comprehensive lift kit is expertly engineered to enhance ride quality while providing ample clearance for up to 37-inch tires, ensuring your truck stands out on and off the road.

The kit features heavy-duty gas-specific Pro-Ride coil springs that deliver a smooth and predictable ride across diverse terrains. These springs, combined with rugged tubular radius arms, replace the factory components to enhance stability and maximize ground clearance. The integrated design allows for caster adjustment, improving handling while ensuring a factory-like fit.

For steering precision, the kit includes a forged drop pitman arm and a heavy-duty track bar bracket, which work together to maintain optimal steering angles through suspension travel. This means better control and responsiveness when navigating tough trails or city streets alike.

In the rear, high-strength fabricated lift blocks paired with longer u-bolts guarantee a balanced stance, complemented by NX2 Nitro or FOX Performance shocks. These premium shocks are nitrogen-charged and feature specially tuned valving that adapts to varied driving conditions, providing stability and comfort.

The installation process is entirely bolt-on, allowing for easy setup without the need for extensive modifications. Additionally, the lift kit is designed with durability in mind, ensuring that you can rely on your truck during any adventure.

Complete your truck transformation with the BDS2209H Lift Kit, combining performance, aesthetic upgrades, and reliability for the ultimate driving experience. Ideal for those who demand both style and functionality, this lift kit will redefine how you view your vehicle's capabilities.
