BDS SUSPENSION BDS2203H 5 INCH LIFT KIT W/ RADIUS ARM FORD F250/F350 SUPER DUTY 23-24 4WD DIESEL 5 INCH BLOCK WITH 3 LEAF MAIN NX2 NITRO

Improve the ride on your 23-24 Ford Super Duty diesel truck with this 5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 5 inch
• Rear Lift Height: 4 inch

1. Vehicles with radius arm mounted ride height sensors will require BDS123303.
2. Ford recommends the replacement of the pitman arm nut after each time it has been removed.
3. Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
4. If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
5. Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
6. Larger Tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and Tire fitment section.
7. Minor trimming may be necessary for clearance of 37x12.50 Tires on certain wheel setups.
8. Installation requires a torque wrench capable of 406 ft-lbs.
9. Vehicles with leaf spring ride height sensors must select the rear block option.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option 5 Inch Block with 3 Leaf Main

Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

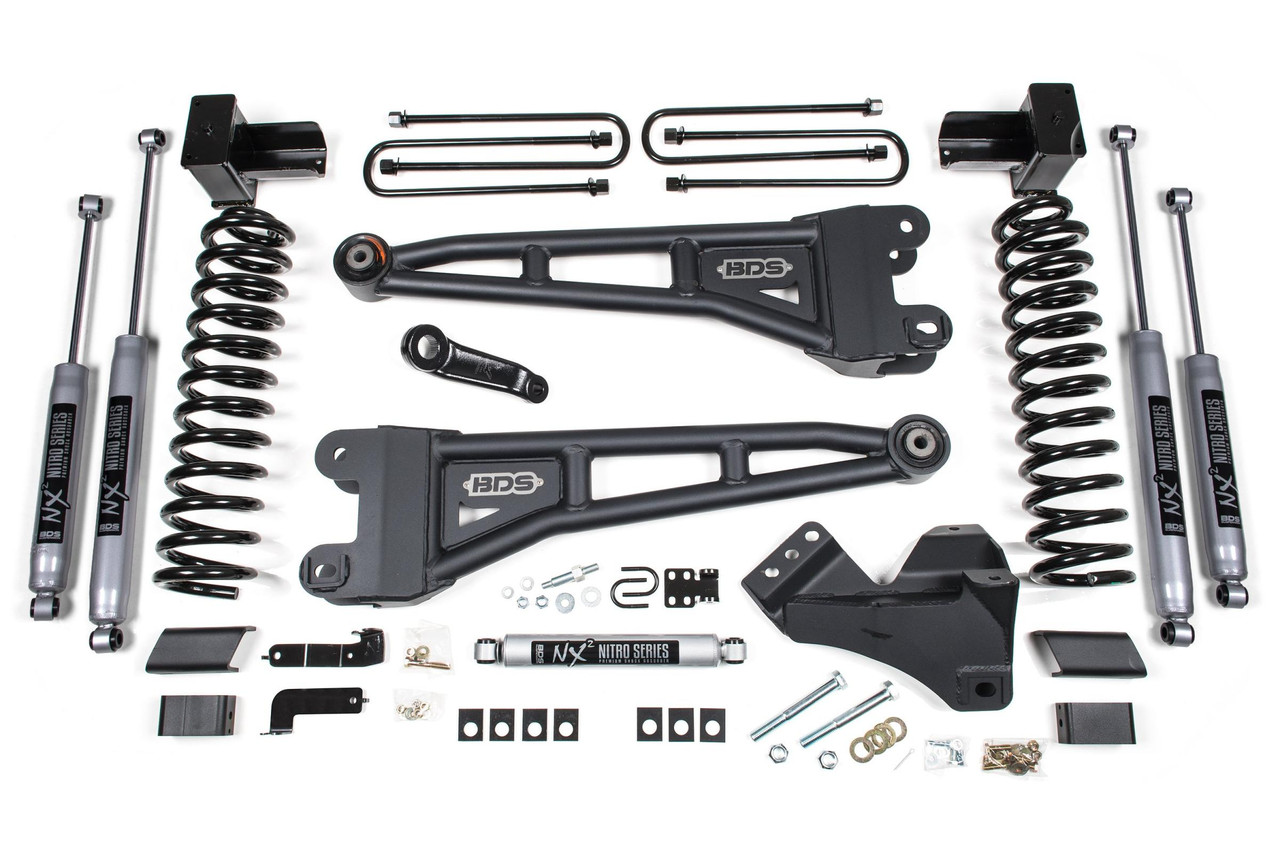

Kit Components:

• Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458
• Includes one BDS013516, 2017-2024 F250 5 inch Rear Block Kit -3 Leaf Main, UPC Code 658848613595
• Includes one BDS033411, 2005-2024 Ford F250/F350 Superduty 4 inch Coil Kit - Diesel, UPC Code 658848616527
• Includes one BDS123263, 2023-2024 Ford F250/350 4wd Radius Arm Kit, Pair, UPC Code 711745612709
• Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85718, Shock - 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609563

Experience unparalleled performance and rugged capability with the BDS Suspension BDS2203H 5-Inch Lift Kit for Ford F250/F350 Super Duty models from 2023 to 2024. This comprehensive lift kit is engineered for serious off-road enthusiasts and is designed specifically for diesel-powered trucks.

The BDS2203H elevates your vehicle’s stance by 5 inches in the front and 4 inches in the rear, providing ample clearance for larger 37-inch tires. Constructed with high-quality components, the kit features diesel-specific Pro-Ride coil springs that ensure a smooth, stable ride across various terrains. The heavy-duty tubular radius arms enhance durability and correct the caster, allowing for optimal alignment and improved handling.

Included in the kit are precision-tuned NX2 Nitro shocks, providing impressive damping performance for both on and off-road adventures. The forged drop pitman arm and track bar bracket maintain proper steering angles while the sway bar relocation and brake line brackets ensure no part of your truck is compromised.

The rear lift utilizes high-strength fabricated blocks with longer u-bolts to maintain a level stance, delivering stability no matter where your journey takes you. Each component is meticulously designed for an easy, 100 percent bolt-on installation, allowing for a user-friendly setup.

With attention to detail and performance at the forefront, the BDS2203H lift kit not only enhances the look of your Super Duty truck but also maximizes ground clearance and ride quality. Whether navigating tough terrains or cruising city streets, this lift kit promises to elevate your driving experience. Upgrade your truck’s capabilities and unleash its full potential with the BDS Suspension BDS2203H 5-Inch Lift Kit today.
