BDS SUSPENSION BDS216FS 4.5 INCH LIFT KIT LONG ARM CONVERSION DODGE RAM 2500/3500 94-99 4WD LEAF SPRINGS FOX 2.0 PERFORMANCE

Built to outperform, BDS Suspension engineered a 4.5-inch lift kit with long arm conversion for your 1994-1999 Dodge RAM 2500 and 3500 4WD truck that maximizes performance on and off road.

Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel.

This 4-Link long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar drop brackets, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes heavy duty cast steel blocks and add-a-leaf combo, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Features & Benefits

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance

Recommended Tires & Wheels

• (Trimming may be required)
• 35 x 12.5 with 16 x 8 and 4 in. Backspace

Rear Lift Option

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

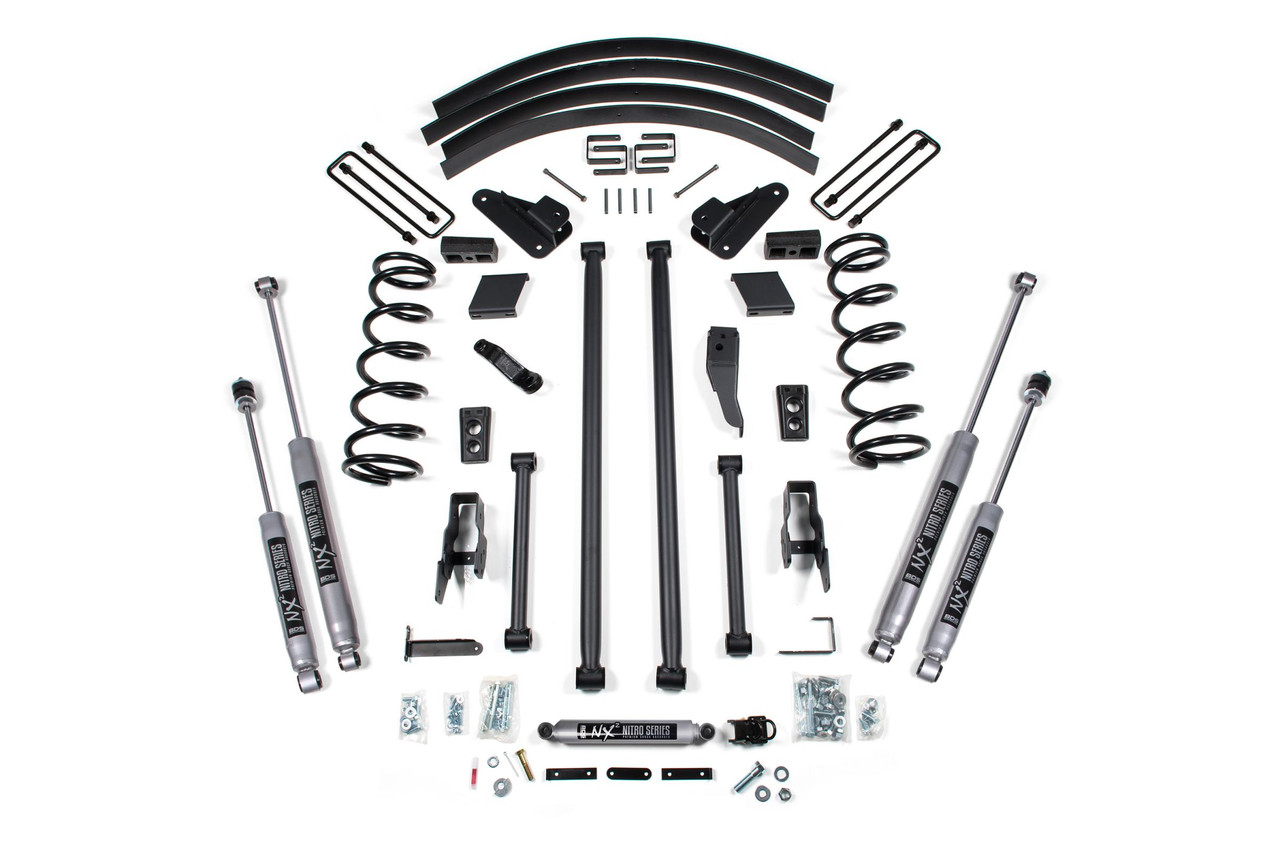

Kit Components:

• Includes two BDS002458, Dodge Ram 3/4 ton 4.5in Rear Spring, UPC Code 658848611270
• Includes one BDS012508, 94-02 Dodge 2500 Rear Bx Kit w/BDS Rear, UPC Code 658848612543
• Includes one BDS012511, 94-01 Dodge Ram Long Arm Kit (1of2), UPC Code 658848612550
• Includes one BDS012513, 94-99 Dodge Ram Long Arm Kit (2of2), UPC Code 658848612574
• Includes one BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit, UPC Code 658848616398
• Includes one BDS85417, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609129
• Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Elevate your driving experience with the BDS SUSPENSION BDS216FS 4.5 Inch Lift Kit, designed specifically for the 1994-1999 Dodge RAM 2500 and 3500 4WD trucks. Engineered for unparalleled performance both on and off road, this robust long arm conversion kit enhances your vehicle's stance and capability while providing space for up to 35-inch tires.

This comprehensive lift kit includes vital components for a complete setup. The long lower control arms are crafted to minimize caster changes throughout wheel travel, establishing a more controlled and responsive steering feel. The innovative 4-Link long arm system retains factory triangulation, ensuring enhanced stability in your suspension system.

Included in the front assembly are diesel-specific Pro-Ride coil springs designed for a smooth ride across diverse terrains. Accompanied by all necessary control arms, a forged drop pitman arm, and a track bar bracket for steering correction, this kit enhances overall ride quality. Bump stops and sway bar drop brackets help maintain handling performance.

The rear of the kit employs heavy-duty cast steel blocks combined with an add-a-leaf setup, longer u-bolts, and matching NX2 Nitro or FOX 2.0 Performance shocks to ensure outstanding stability and comfort. The multi-leaf progressive design of the rear leaf springs eliminates the need for lift blocks, reducing axle wrap and providing a controlled ride.

With features like a forged drop pitman arm and front sway bar relocation, steering geometry is optimized post-lift. Every shock option, including FOX 2.0 Performance Series, is engineered for peak performance to meet the demands of any driving environment.

Transform your RAM with the BDS Suspension lift kit, and conquer any road or trail with confidence and style.
