BDS SUSPENSION BDS215H 4.5 INCH LIFT KIT DODGE RAM 2500/3500 94-99 4WD LEAF SPRINGS NX2 NITRO

Improve the ride and style of your 1994-1999 Dodge RAM 2500 and 3500 4WD truck with this 4.5-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

BDS engineered new lower control arms that are longer than stock to rotate the axle for proper alignment and built a relocation mounting bracket to flatten out the angle of the upper control arm to maintain your factory handling characteristics.

Up front the lift kit includes Pro-Ride coil springs, all four control arms plus relocation bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar drop brackets, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes heavy duty cast steel block and add-a-leaf combo, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4.5 inch
• Rear Lift Height: 4.5 inch

1. For models built after February 9, 1994 due to track bar stud size.
2. May require exhaust modification
3. Dual stabilizer may be substituted for single stabilizer that comes in the kit.
4. These vehicles were produced with and without a top mounted overload spring. You will need to identify which your vehicle has before ordering.

• Tubular short arms improve strength, handling and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

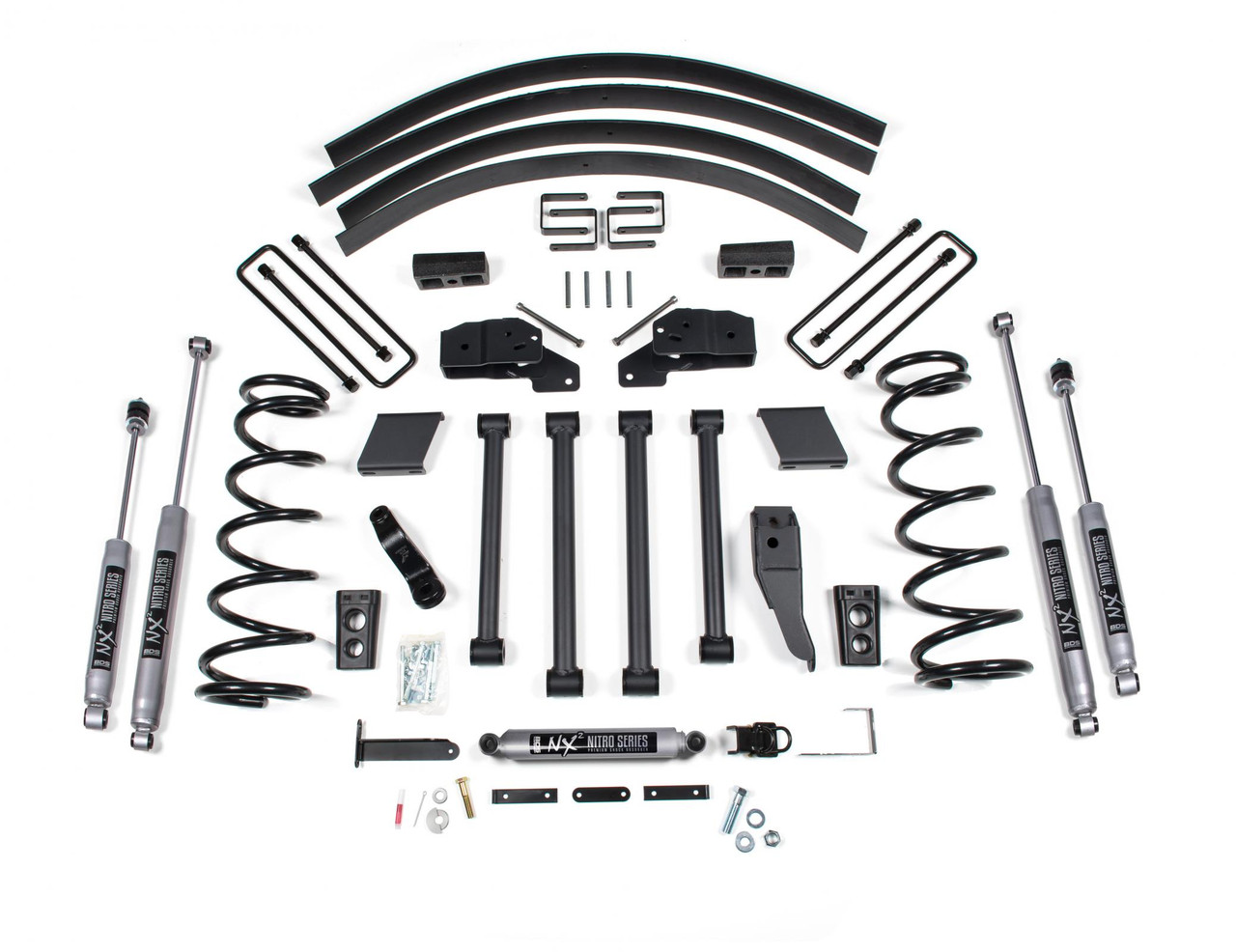

Kit Components:

• Includes two BDS002458, Dodge Ram 3/4 ton 4.5in Rear Spring, UPC Code 658848611270
• Includes one BDS012503, 1994-1999 Dodge 1500/2500 5in Front Box Kit, UPC Code 658848612512
• Includes one BDS012508, 94-02 Dodge 2500 Rear Bx Kit w/BDS Rear, UPC Code 658848612543
• Includes one BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit, UPC Code 658848616398
• Includes one BDS85417, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609129
• Includes two BDS85750, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609600
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

Enhance the performance and aesthetics of your 1994-1999 Dodge RAM 2500 and 3500 4WD with the BDS215H 4.5-Inch Lift Kit. This comprehensive lift kit is meticulously engineered by BDS Suspension to boost your truck's stance while providing the rugged capability needed for on and off-road adventures.

This 4.5-inch lift kit comes complete with everything required to elevate your truck, allowing clearance for up to 35-inch tires. The kit includes innovative lower control arms that are longer than stock, allowing for proper axle rotation and alignment. Additionally, a sturdy relocation bracket is integrated to adjust the upper control arm's angle, ensuring that your factory handling characteristics remain intact.

In the front, the kit features high-performance Pro-Ride coil springs and a selection of essential components, including forged drop pitman arms and bump stops. These parts work in harmony to maintain steering precision while accommodating the lift. The precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks are tailored for optimal ride quality, offering both comfort and stability across varying terrains.

The rear suspension benefits from a robust cast steel block combined with an add-a-leaf system, alongside longer u-bolts and matching NX2 Nitro or FOX 2.0 Performance shocks. This design not only enhances lift but also ensures a smooth and controlled ride.

Constructed with heavy-duty materials and advanced engineering, the BDS215H Lift Kit promises reliability and excellent performance. Experience an improved driving experience and make a statement on or off the road with this top-tier suspension upgrade. Embrace adventure with confidence, knowing your RAM is equipped to handle whatever comes its way.
