BDS SUSPENSION
BDS SUSPENSION BDS214FS 4.5 INCH LIFT KIT LONG ARM CONVERSION DODGE RAM 2500/3500 94-99 4WD BLOCK WITH FACTORY OVERLOAD FOX 2.0 PERFORMANCE
- SKU:
- BDS214FS
- MPN:
- BDS214FS
- Shipping:
- Calculated at Checkout
Description
Built to outperform, BDS Suspension engineered a 4.5-inch lift kit with long arm conversion for your 1994-1999 Dodge RAM 2500 and 3500 4WD truck that maximizes performance on and off road.
Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel.
This 4-Link long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar drop brackets, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes heavy duty cast steel blocks and add-a-leaf combo, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features & Benefits
- Tubular long arms reduce caster change and create more controlled feeling on and off road
- Heavy duty control arm brackets maintain proper suspension geometry
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series IFP gas shocks to improved ride and offroad performance
Recommended Tires & Wheels
- (Trimming may be required)
- 35 x 12.5 with 16 x 8 and 4 in. Backspace
Rear Lift Option Block Kit with Factory Overload
- Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
- Blocks made of steel for high strength.
- Designed to provide correct pinion angles.
Shock Option
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish

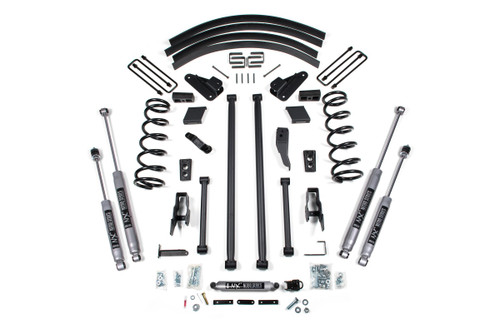

Kit Components:
- Includes one BDS012457, 94-01 Dodge 2500 Rear Kit w/Top Mtd, UPC Code 658848612468
- Includes one BDS012511, 94-01 Dodge Ram Long Arm Kit (1of2), UPC Code 658848612550
- Includes one BDS012513, 94-99 Dodge Ram Long Arm Kit (2of2), UPC Code 658848612574
- Includes one BDS032503, 94-up Dodge Ram 2500(Diesel) Coil Kit, UPC Code 658848616398
- Includes one BDS85417, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609129
- Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
- Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
Built with a focus on stability and control, the 4-Link long arm system features tubular lower control arms that minimize caster change during wheel travel. This design ensures a smoother, more responsive steering experience. The kit includes diesel-specific Pro-Ride coil springs tailored to deliver a perfect lift height while maintaining a comfortable ride across various landscapes.
Comprehensive in its offerings, this lift kit provides everything you need for a seamless installation: robust control arms, forged drop pitman arm, track bar bracket for steering correction, and sway bar drop brackets. With precision-tuned NX2 or FOX 2.0 nitrogen-charged shocks, enjoy enhanced ride quality and off-road performance that adapts to any driving challenge.
The rear of the setup is equally impressive, utilizing heavy-duty cast steel blocks and an add-a-leaf combination for increased support, paired with longer U-bolts and matching performance shocks. For those seeking the ultimate off-road experience, the kit accommodates clearance for up to 35-inch tires.
Additional features include steering correction components to ensure optimal geometry, high-strength control arm brackets for durability, and a comprehensive alignment of suspension capabilities. Enhance your RAM 2500 or 3500 with this lift kit, transforming it into a powerful and agile truck that stands tall on any road. Whether for work or play, BDS Suspension has you covered with superior engineering and reliable performance.
