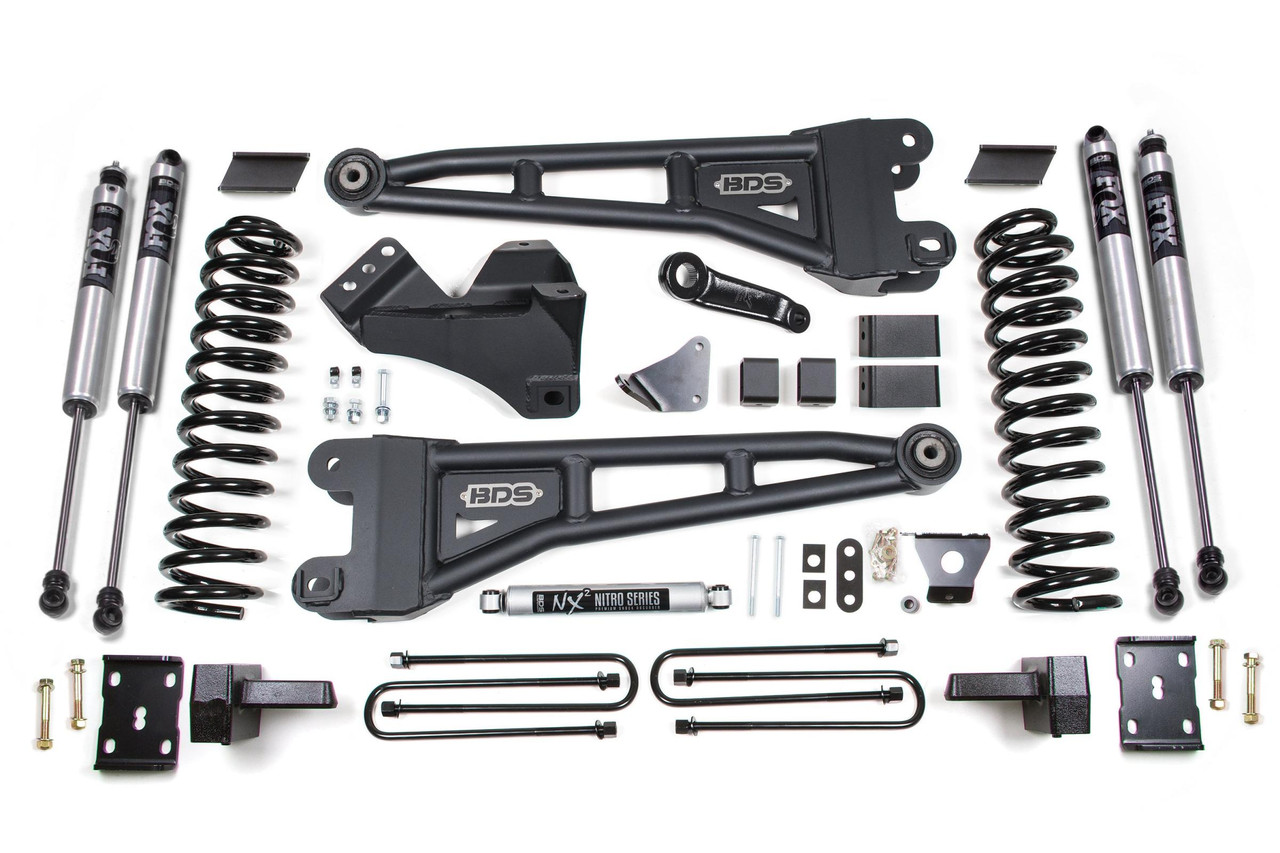

BDS SUSPENSION BDS1948FS 6 INCH LIFT KIT W/ RADIUS ARM FORD F250/F350 SUPER DUTY 05-07 4WD GAS 4 INCH BLOCK WITHOUT OVERLOAD FOX 2.0 PERFORMANCE

Easily fit 37 Inch Tires on your 2005-2007 Ford Super Duty F250 and F350 gas truck by installing this 6-inch radius arm lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 Inch Tires.

Up front the lift kit includes gas-specific 6-inch lift Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned NX2 or FOX nitrogen charged shocks.

In the rear the base kit utilizes a high strength lift blocks, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 Inch
• Rear Lift Height: 4 Inch

1. Removal of the factory block is required.
2. Installation of the rear block kit will result in a Inchpre-runner Inch look with the rear of the vehicle 2 Inch lower than the front. To get a level stance you must upgrade to the rear leaf spring option.
3. These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
4. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the options section.
5. Although extremely rare, front driveline vibration may occur.
6. Front exhaust modification may be required to clear the front driveshaft on gas models.
7. U-bolts will not fit dually models.
8. Dropped pitman arm will not fit 10 lug wide track F350 models.

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option 4 Inch Block Kit without Overload

• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
• Blocks made of steel for high strength.
• Designed to provide correct pinion angles.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components:

• Includes one BDS013419, 2005-2007 Ford F250/F350 4 Inch Rear Box w/o Overload, UPC Code 658848613472
• Includes one BDS013615, 2005-2007 Ford F250/F350 4wd 6 Inch Radius Arm Box Kit - Front, UPC Code 711745611801
• Includes one BDS033612, 2005-2016 Ford F250/F350 6 Inch (Gas) Coil Kit, UPC Code 658848616596
• Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
• Includes one BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609112
• Includes two FOX98224750, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Elevate your driving experience with the BDS SUSPENSION BDS1948FS 6-Inch Lift Kit, designed specifically for the 2005-2007 Ford F250 and F350 Super Duty 4WD gas trucks. This comprehensive kit allows you to effortlessly fit 37-inch tires, transforming your vehicle's stance and enhancing its performance on any terrain.

The lift kit features gas-specific 6-inch Pro-Ride coil springs, ensuring optimal lift while providing a remarkably smooth ride. Accompanying these springs are heavy-duty tubular radius arms that replace factory components, offering superior caster adjustment to accommodate various lift heights. The kit also includes a forged drop pitman arm and track bar bracket for improved steering alignment, alongside sway bar relocation kits and brake line brackets for complete installation support.

At the rear, the kit utilizes durable lift blocks and longer u-bolts in conjunction with NX2 Nitro or FOX Performance shocks that are designed specifically for your truck, guaranteeing exceptional control and handling. Constructed from high-strength steel, the fabricated blocks enable correct pinion angles and deliver a level stance from front to rear.

The FOX 2.0 Performance Series shocks included in this kit are exceptional, featuring a robust 2-inch aluminum body and race-developed piston design that maximizes off-road performance. Their custom valving ensures a responsive and comfortable ride, whether you’re navigating trails or cruising the highway.

With 100% bolt-on installation, this lift kit makes upgrades easy and efficient. Consider this lift kit a multi-functional solution that elevates both the capabilities and aesthetics of your Ford Super Duty truck, allowing it to conquer any terrain while turning heads on the road.
