BDS SUSPENSION BDS1941H 4 INCH LIFT KIT W/ RADIUS ARM FORD F250/F350 SUPER DUTY 08-10 4WD GAS BLOCK KIT WITH FACTORY OVERLOAD NX2 NIRO SHOCKS

Improve the ride on your 2008-2010 Ford F250 and F350 Super Duty gas truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, u-bolt flip kit for max ground clearance, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. These trucks were manufactured with and without top-mounted overload springs on the rear leaf springs. A top-mounted overload is an extra leaf separate from the pack that is set above the main leaf. You will need to identify which you have before ordering.
2. If your vehicle is equipped with a carrier bearing, you will need to order 123402

• Easy, 100 percent Bolt-on installation
• Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
• Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
• Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
• Fabricated steel blocks provide level stance from front to rear
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option Block Kit with Factory Overload

• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
• Blocks made of steel for high strength.
• Designed to provide correct pinion angles.

Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 4.5

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

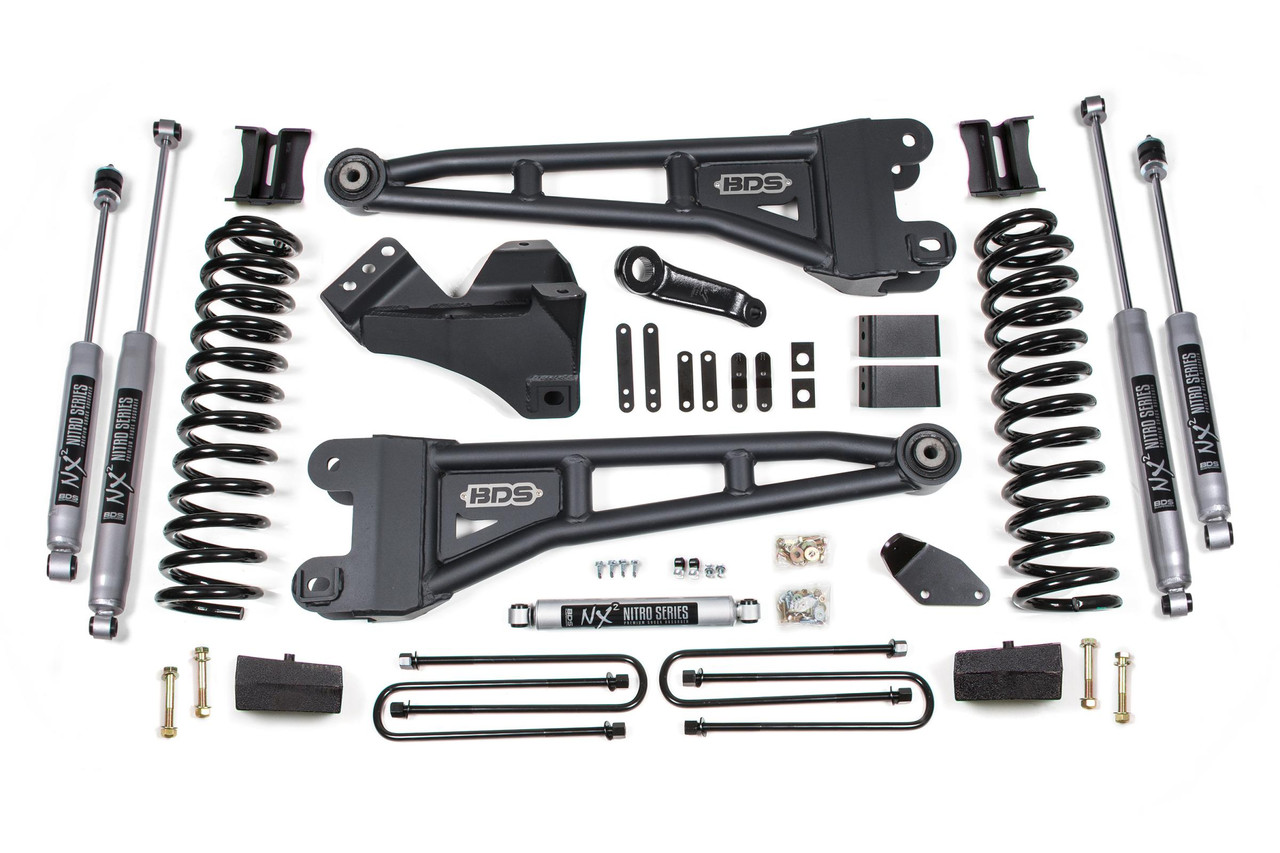

Kit Components:

• Includes one BDS013432, 2008-2010 Ford F250/F350 4 inch Radius Arm Front Box Kit, UPC Code 711745611788
• Includes one BDS013518, 2005-up Ford F250/F350 5in Rear Box Kit w/overload, UPC Code 658848613618
• Includes one BDS033412, 2005-2024 Ford F250/F350 Gas 4 inch Coil Spring Kit, UPC Code 658848616534
• Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
• Includes one BDS85415, Steering Stab 23.9 x 14.3 - EB1/EB1, UPC Code 711745609112
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693

Transform your 2008-2010 Ford F250 and F350 Super Duty gas truck with the BDS Suspension BDS1941H 4-Inch Lift Kit featuring a radius arm design. This complete lift kit offers an upgrade in ride quality, stance, and overall performance, providing the perfect foundation for fitting larger 35-inch tires.

At the forefront, this lift kit comes equipped with gas-specific Pro-Ride coil springs engineered for exceptional lift height while maintaining a smooth and controlled ride on varied terrains. The heavy-duty replacement radius arms replace the factory units, allowing for caster adjustments to accommodate a range of lift heights. These tubular arms enhance durability and ensure a quiet, service-free operation through OE-style rubber bushings.

For optimal steering geometry post-installation, a forged drop pitman arm is included, alongside a tailored track bar bracket to sustain alignment during suspension travel, ensuring seamless handling.

In the rear, the kit features a robust lift block paired with a U-bolt flip kit for maximum ground clearance and a matched set of NX2 Nitro shocks or the option to upgrade to FOX Performance Series shocks for unparalleled off-road capabilities. Each component is meticulously crafted for a straightforward, 100% bolt-on installation.

The kit also accommodates variations in rear leaf spring configurations, allowing versatility for models with or without top-mounted overload springs. Additional brake line brackets and sway bar relocation components are included to complete the package, providing a well-rounded solution for enhancing your truck's capabilities.

Experience a transformed driving experience with the BDS1941H 4-inch lift kit, designed to optimize your Ford truck for both on and off-road adventures while generating a striking stance that truly stands out.
