BDS SUSPENSION BDS1927FPE 2.5 INCH LIFT KIT COIL-OVER CONVERSION FORD F250/F350 SUPER DUTY 11-16 4WD DIESEL NO BLOCK FOX 2.5 PERFORMANCE ELITE

Improve the ride, up the ante, and level out your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit and FOX Performance Elite coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, high strength 1-3/8 inch solid steel track bar for steering correction, brake line brackets and precision tuned nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

FOX Performance Elite Coil-Over

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 2.5 inch
• Rear Lift Height: 2 inch

1. Exhaust modification may be required to clear the front driveshaft (gas only)
2. Front bumper spacer kit may be required to run 38 inchx15.50 inch Tires
3. Although extremely rare, front driveline vibration may occur
4. If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (123406) will be required
5. Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.
6. If equipped with a rear sway bar, 123009 is required.
7. U-bolts will not work on dually.
8. Front auxiliary shocks can be omitted from kit - the system can be used with Coil Over installed alone

BDS leaf springs are not intended for use beyond the truck's maximum payload capacity. Trucks equipped with overload springs will only have the capacity of a non-overload equipped truck. If heavy payload use is desired, supplemental rear airbags are recommended.

• FOX 2.5 Coil-Over mounts in factory coil bucket location
• Adds additional secondary FOX 2.0 shock for max performance
• Eibach coil springs ride smooth through the roughest terrain
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

No Block Kit

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5

• Front Lift Method: Coil-Over
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 2.5 inch
• Rear Lift Height: 0 inch

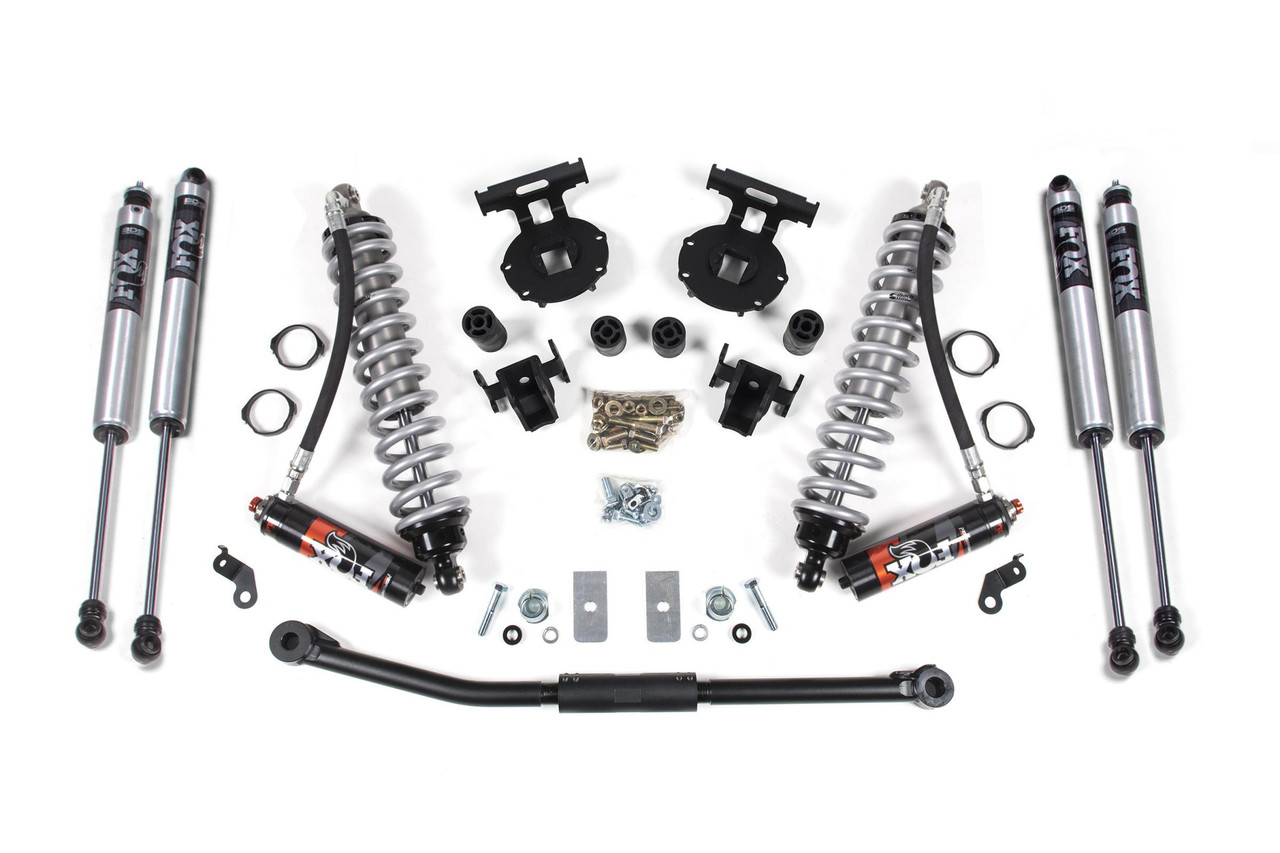

Kit Components:

• Includes one BDS013254, 2005-15 F250 2.5 InchFront Box Kit, UPC Code 658848613212
• Includes one BDS123212, 2005-2016 Ford F250/F350 Super Duty Coilover Mount Kit (2 inch-8 inch), UPC Code 711745604063
• Includes one FOX88406426, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 2.5 inch Lift, Dual Speed Compression Adjust
• Includes two FOX98224660, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
• Includes two FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1

Elevate your 2011-2016 Ford F250 and F350 Super Duty diesel truck’s performance with the BDS Suspension BDS1927FPE 2.5-Inch Lift Kit Coil-Over Conversion. This meticulously designed lift kit enhances your truck’s stance and capability, allowing you to tackle off-road challenges while enjoying a smoother ride on pavement.

The heart of this lift kit is the FOX 2.5 coil-over shocks, engineered specifically for diesel applications. These high-performance shocks are paired with a robust 1-3/8 inch solid steel track bar that ensures precise steering correction, while brake line brackets allow for smooth functionality. This setup accommodates tires up to 35 inches, giving you the clearance you need for adventurous excursions.

In the rear, the kit features a durable fabricated lift block, longer u-bolts, and a set of matching NX2 Nitro or FOX Performance shocks. The FOX 2.5 Performance Elite shocks stand out with a remote reservoir, offering enhanced fluid capacity and cooling—ideal for high-stress situations. The Dual Speed Compression Adjuster further allows you to customize your ride, featuring a total of 10 low-speed and 12 high-speed compression levels for versatile tuning.

Included in the kit is the adjustable HD track bar for maintaining optimal handling and alignment, constructed from solid steel for added strength. The system's components work in harmony to deliver an unmatched combination of performance, durability, and comfort.

With its no-block design and premium materials, including Eibach coil springs renowned for their smooth operation, this lift kit is the ultimate enhancement for any Ford Super Duty truck. Experience the thrill of advanced off-road capabilities while maintaining daily driving comfort. Get ready to take your truck to new heights with the BDS Suspension lift kit.
