BDS SUSPENSION

BDS SUSPENSION BDS1921H 6 INCH LIFT KIT FORD F150 2014 4WD 4 INCH BLOCK KIT NX2 NITRO SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1921H
MPN:
BDS1921H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1921H 6 INCH LIFT KIT FORD F150 2014 4WD 4 INCH BLOCK KIT NX2 NITRO SHOCKS
  • BDS SUSPENSION BDS1921H 6 INCH LIFT KIT FORD F150 2014 4WD 4 INCH BLOCK KIT NX2 NITRO SHOCKS
$1,898.60

Description

Take your 2014 Ford F150 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength cast steel lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

  • Front Lift Method: Cross-Member
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 inch
  • Rear Lift Height: 5 inch
  1. Requires frame bracket modification and welding.
  2. 18 inch wheels with 5-5.5 inch total backspacing should be test fit prior to mounting the Tire to ensure proper clearance to BDS steering knuckle.
  3. 18 inch or larger diameter wheels required. Stock 17 inch & 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to a 305/60-20 Tires.
  4. E-brake bracket required for factory powersteps (123018) Block kits replace factory 1-1/4 inch block.
  5. The 4 inch blocks will net a level/tail LOW stance. The 5 inch blocks will net a level/tail HIGH stance.
  6. Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit 122406
  7. Will not fit HD models (7 lug).
  8. This kit is FMVSS No.126 Compliant
  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Rear Lift Option

4 Inch Block Kit

  • Tail low to level stance

Tire Size: 37 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5.5

Rear Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

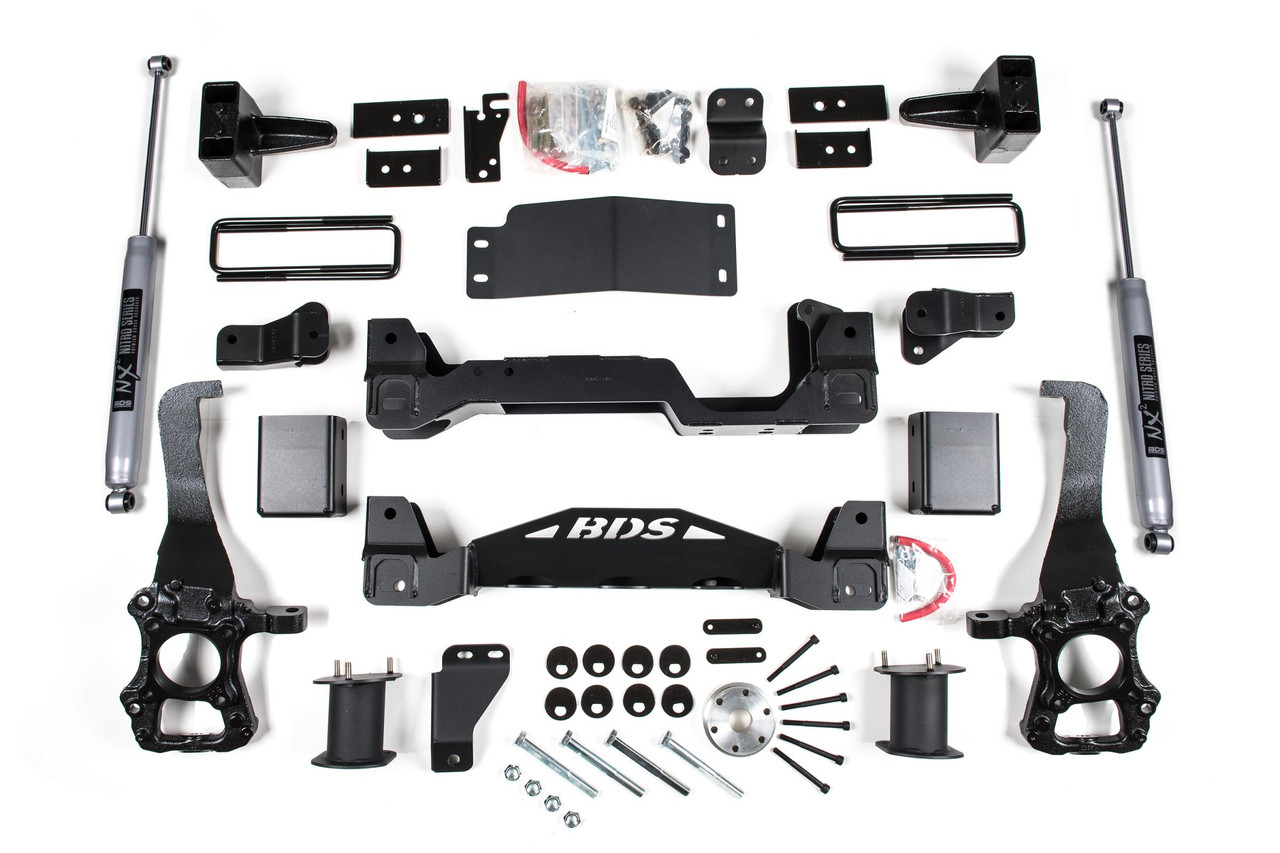

Kit Components:

  • Includes one BDS013429, 09-15 F150 4 inch Rear Block Kit, UPC Code 658848613519
  • Includes one BDS023605, 2014-15 F150 6 Inch Spacer Box Kit, UPC Code 658848615780
  • Includes one BDS023622, 2009-2014 Ford F150 Box Kit (3of4), UPC Code 658848615827
  • Includes one BDS023623, 2009-2014 Ford F150 Box Kit (4of4), UPC Code 658848615834
  • Includes one BDS023625, 2009-2014 Ford F150 4-6 Inch Box Kit (1of4), UPC Code 658848615858
  • Includes one BDS023626, 2009-2014 Ford F150 4-6 Inch Box Kit (2of4), UPC Code 658848615865
  • Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693

Elevate your driving experience with the BDS SUSPENSION BDS1921H 6-Inch Lift Kit tailored specifically for the 2014 Ford F150 4WD. This comprehensive lift kit transforms your truck, boosting its performance and off-road capability while enhancing its aggressive stance. Designed for those who crave adventure, the kit allows the installation of tires up to 37 inches in size, ensuring your F150 commands attention on any terrain.

Using BDS's renowned high-clearance design, this lift kit offers improved ground clearance and durability, paired with a robust construction for off-road protection. The front includes advanced features like high-arched 1/4-inch steel crossmembers, top-mounted strut spacers, and multipiece differential relocation brackets, which not only enhance strength but also maintain a smooth and responsive on-road experience. The standout heavy-duty steering knuckles are expertly machined from ductile iron, ensuring precise steering geometry that works seamlessly with your truck's stability control system.

The rear setup is equally impressive, utilizing high-strength cast steel lift blocks and extended u-bolts to achieve a level stance. NX2 Nitro shocks come standard, optimizing ride quality with nitrogen-charged twin-tube performance, while offering the option to upgrade to FOX 2.0 Performance Series shocks for ultimate control and comfort.

Installation is straightforward but does require some modifications, ensuring a perfect fit and enhanced handling. This lift kit is FMVSS No.126 compliant, making it a reliable addition to your Ford F150. Gain confidence in every ride with the BDS 6-Inch Lift Kit, where rugged design meets top-tier performance for enthusiasts ready to tackle any challenge. Whether on the highway or off the beaten path, elevating your F150 has never been easier or more effective.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
