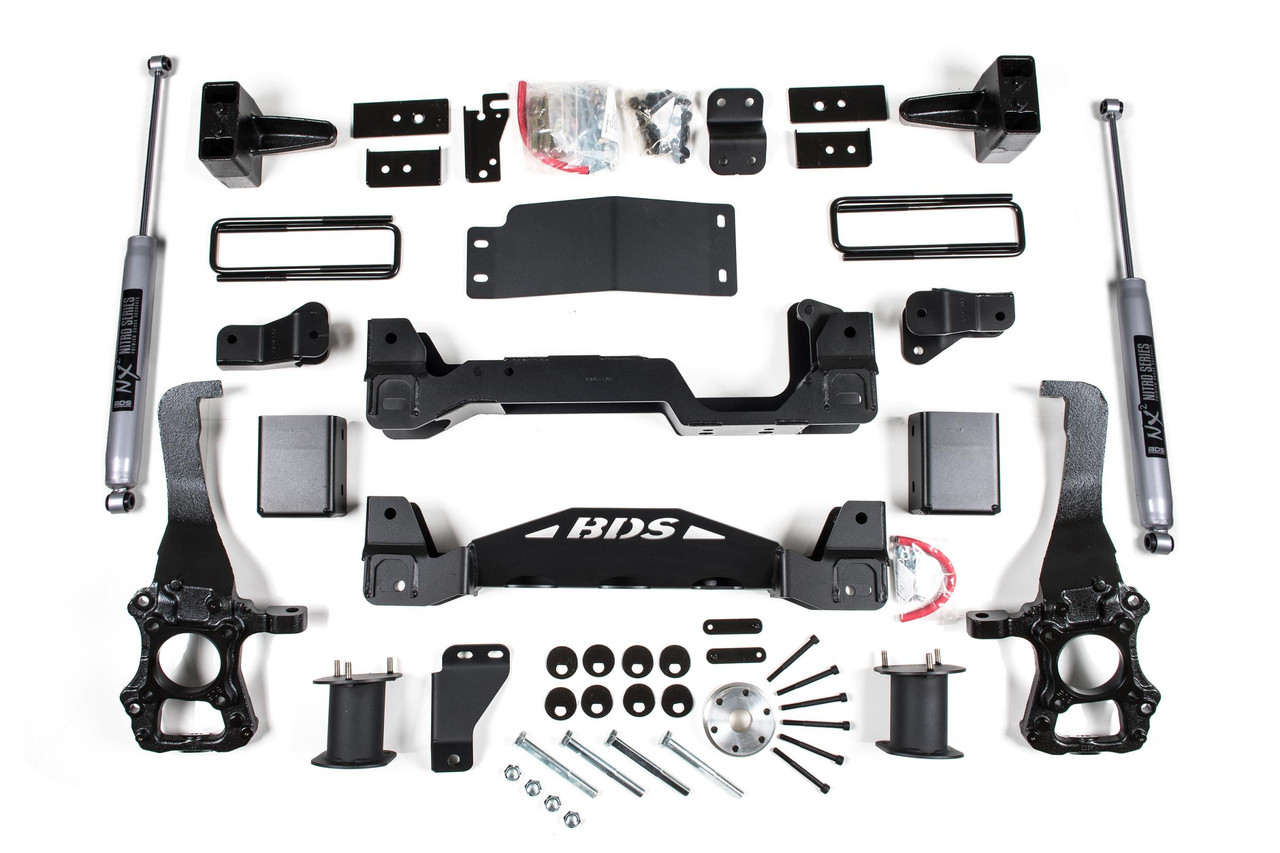

BDS SUSPENSION BDS1921FS 6 INCH LIFT KIT FORD F150 2014 4WD 4 INCH BLOCK KIT FOX 2.0 PERFORMANCE SHOCKS
- SKU:
- BDS1921FS
- MPN:
- BDS1921FS
- Shipping:
- Calculated at Checkout
Description
Take your 2014 Ford F150 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength cast steel lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
- Front Lift Method: Cross-Member
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 6 inch
- Rear Lift Height: 5 inch
- Requires frame bracket modification and welding.
- 18 inch wheels with 5-5.5 inch total backspacing should be test fit prior to mounting the Tire to ensure proper clearance to BDS steering knuckle.
- 18 inch or larger diameter wheels required. Stock 17 inch & 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to a 305/60-20 Tires.
- E-brake bracket required for factory powersteps (123018) Block kits replace factory 1-1/4 inch block.
- The 4 inch blocks will net a level/tail LOW stance. The 5 inch blocks will net a level/tail HIGH stance.
- Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
- Will not fit HD models (7 lug).
- This kit is FMVSS No.126 Compliant
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Rear Lift Option
4 Inch Block Kit
- Tail low to level stance
Tire Size: 37 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5.5
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Kit Components:
- Includes one BDS013429, 09-15 F150 4 inch Rear Block Kit, UPC Code 658848613519
- Includes one BDS023605, 2014-15 F150 6 Inch Spacer Box Kit, UPC Code 658848615780
- Includes one BDS023622, 2009-2014 Ford F150 Box Kit (3of4), UPC Code 658848615827
- Includes one BDS023623, 2009-2014 Ford F150 Box Kit (4of4), UPC Code 658848615834
- Includes one BDS023625, 2009-2014 Ford F150 4-6 Inch Box Kit (1of4), UPC Code 658848615858
- Includes one BDS023626, 2009-2014 Ford F150 4-6 Inch Box Kit (2of4), UPC Code 658848615865
- Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
The kit features robust high-arched steel crossmembers, crafted from 1/4-inch thick material to ensure maximum strength and durability. Installation of top-mounted strut spacers, combined with multi-piece differential relocation brackets, guarantees enhanced steering geometry and on-road handling, ensuring your driving experience remains smooth and stable.
Included in this lift kit are heavy-duty, CNC-machined ductile iron steering knuckles designed to maintain accurate steering angles and compatibility with the electronic stability control (ESC) system. This careful attention to steering geometry ensures a safe and responsive ride, no matter the conditions. Sway bar relocation brackets, brake line brackets, and alignment cam bolts are also part of the package, simplifying the installation process and delivering a fully integrated front suspension lift.
The rear section of the truck is equipped with high-strength cast steel lift blocks and longer u-bolts, leveling your truck's stance with either NX2 Nitro shocks or the premium FOX 2.0 Performance Series shocks for superior control and performance.
BDS Suspension has prioritized off-road protection with a robust differential skid plate, while the impressive high-clearance crossmembers provide added strength. This kit is FMVSS No. 126 compliant and offers options to customize your ride height, ensuring your Ford F150 is ready for any adventure that lies ahead. Transform your truck today with the BDS1921FS lift kit and cruise confidently over any landscape.
