BDS SUSPENSION

BDS SUSPENSION BDS1907H 6 INCH LIFT KIT FORD RANGER 19-23 4WD CAST STEEL KNUCKLE NX2 NITRO SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1907H
MPN:
BDS1907H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1907H 6 INCH LIFT KIT FORD RANGER 19-23 4WD CAST STEEL KNUCKLE NX2 NITRO SHOCKS
  • BDS SUSPENSION BDS1907H 6 INCH LIFT KIT FORD RANGER 19-23 4WD CAST STEEL KNUCKLE NX2 NITRO SHOCKS
$1,499.93

Description

BDS steps up the performance and capability of the 2019-2023 Ford Ranger trucks with 6-inch suspension lift kits. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection.

Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes a heavy duty replacement transfer case cross-member, high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

  • Front Lift Method: Strut Spacer
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 inch
  • Rear Lift Height: 3.5 inch

Important- Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle-equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

  1. Requires frame bracket and differential modification. If using a plasma cutter for frame bracket mod, disconnecting the battery is highly recommended.
  2. Stock 17-18 inch wheels cannot be reinstalled.
  3. When balancing Tires for 17-18 inch wheels, wheel weights are best positioned towards the center of the wheel to avoid interference with the tie rod end.
  4. Rack and Pinion steering is sensitive to Tire choice. Aggressive Tires, smaller backspacing or Tires that require several wheel weights may induce steering wheel wobble.
  5. Will not work on Tremor model.
  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

OE Knuckle Type - Cast Steel

Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

Tire Size: 33 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.5

Rear Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

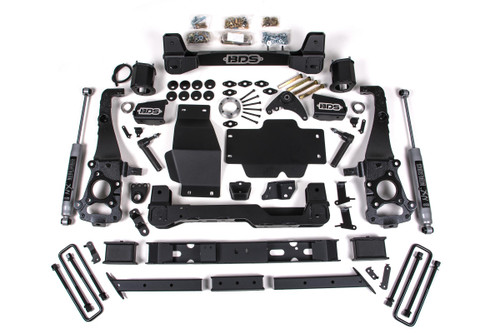

Kit Components:

  • Includes one BDS023662, 2019-2023 Ford Ranger Front Box Kit (1of2), UPC Code 658848616015
  • Includes one BDS023663, 2019-2023 Ford Ranger Front Box Kit (2of2), UPC Code 658848616022
  • Includes one BDS023664, 2019-2023 Ford Ranger 6 inch Strut Spacer Box Kit, UPC Code 658848616039
  • Includes one BDS023669, 2019-2023 Ford Ranger 6 inch Rear Box Kit, UPC Code 658848616046
  • Includes one BDS023674, 2020-2023 Ford Ranger Knuckle Box Kit - Steel OE - Driver, UPC Code 711745611955
  • Includes one BDS023675, 2020-2023 Ford Ranger Knuckle Box Kit - Steel OE - Passenger, UPC Code 711745611962
  • Includes two BDS85821, Shock - 26.2 x 15.67 x 2-3/8 - EB1-EB1, UPC Code 711745609860

Elevate the performance of your 2019-2023 Ford Ranger with the BDS SUSPENSION BDS1907H 6 INCH LIFT KIT. Specifically engineered to enhance stance, capability, and durability, this comprehensive lift kit provides the ideal setup for accommodating tires up to 35 inches.

Using BDS's cutting-edge high-clearance design, this lift kit delivers superior ground clearance and off-road protection while ensuring precise suspension and steering geometry for optimal on-road handling. The front of the kit includes robust high-arched 1/4-inch thick steel crossmembers, complemented by top-mounted strut spacers and a multipiece differential relocation bracket. The integrated skid plate offers added security against rugged terrains.

To maintain precise steering control at the new, taller ride height, the kit features massive CNC-machined ductile iron steering knuckles. These high-strength knuckles are paired with sway bar relocation brackets and alignment cam bolts, ensuring a seamless front suspension lift, ready for the toughest conditions.

The rear setup includes a heavy-duty replacement transfer case cross-member, durable fabricated lift blocks, and extended u-bolts, achieving a balanced lift alongside the standard NX2 Nitro shocks or optional FOX 2.0 Performance Series shocks for superior off-road performance.

Noteworthy features of this kit encompass high-clearance crossmembers for robust strength, heavy-duty steering knuckles to optimize handling and ESC system functionality, and an adaptable installation process.

Important considerations include verifying your truck’s factory knuckle type before ordering, as Ford has produced two distinct configurations from 2020 onwards. By choosing the BDS1907H kit, you're ensuring not only enhanced performance but also enhanced safety and handling in every drive. Elevate your Ford Ranger experience with this dynamic suspension lift kit and conquer any terrain with confidence.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
