BDS SUSPENSION

BDS SUSPENSION BDS1907FS 6 INCH LIFT KIT FORD RANGER 19-23 4WD CAST STEEL KNUCKLE FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1907FS
MPN:
BDS1907FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1907FS 6 INCH LIFT KIT FORD RANGER 19-23 4WD CAST STEEL KNUCKLE FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1907FS 6 INCH LIFT KIT FORD RANGER 19-23 4WD CAST STEEL KNUCKLE FOX 2.0 PERFORMANCE SHOCKS
$1,779.93

Description

BDS steps up the performance and capability of the 2019-2023 Ford Ranger trucks with 6-inch suspension lift kits. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, multipiece differential relocation brackets and skidplate designed for offroad protection.

Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes a heavy duty replacement transfer case cross-member, high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

  • Front Lift Method: Strut Spacer
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 inch
  • Rear Lift Height: 3.5 inch

Important- Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle-equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

  1. Requires frame bracket and differential modification. If using a plasma cutter for frame bracket mod, disconnecting the battery is highly recommended.
  2. Stock 17-18 inch wheels cannot be reinstalled.
  3. When balancing Tires for 17-18 inch wheels, wheel weights are best positioned towards the center of the wheel to avoid interference with the tie rod end.
  4. Rack and Pinion steering is sensitive to Tire choice. Aggressive Tires, smaller backspacing or Tires that require several wheel weights may induce steering wheel wobble.
  5. Will not work on Tremor model.
  • High clearance crossmembers improve strength and offroad capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

OE Knuckle Type - Cast Steel

Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

Tire Size: 33 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.5

Rear Shock Option

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

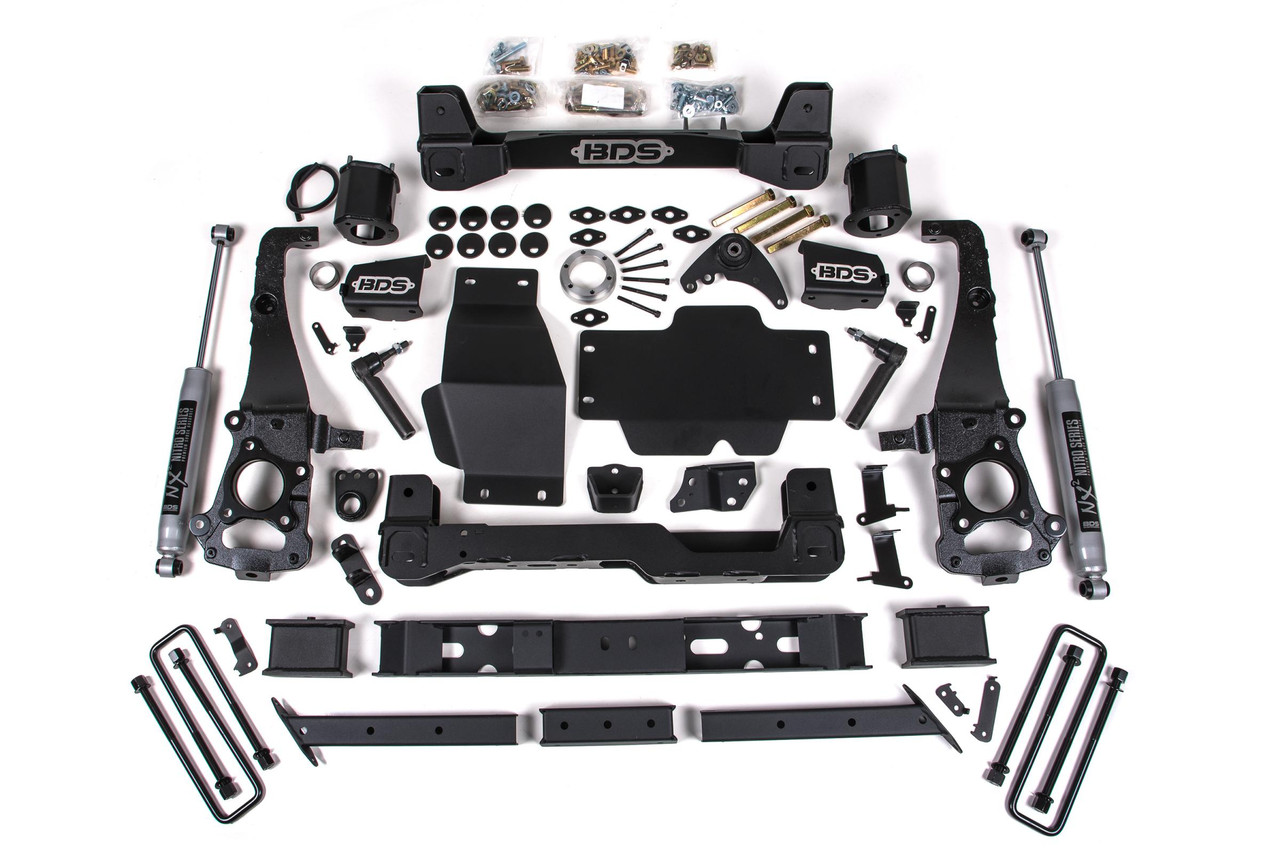

Kit Components:

  • Includes one BDS023662, 2019-2023 Ford Ranger Front Box Kit (1of2), UPC Code 658848616015
  • Includes one BDS023663, 2019-2023 Ford Ranger Front Box Kit (2of2), UPC Code 658848616022
  • Includes one BDS023664, 2019-2023 Ford Ranger 6 inch Strut Spacer Box Kit, UPC Code 658848616039
  • Includes one BDS023669, 2019-2023 Ford Ranger 6 inch Rear Box Kit, UPC Code 658848616046
  • Includes one BDS023674, 2020-2023 Ford Ranger Knuckle Box Kit - Steel OE - Driver, UPC Code 711745611955
  • Includes one BDS023675, 2020-2023 Ford Ranger Knuckle Box Kit - Steel OE - Passenger, UPC Code 711745611962
  • Includes two FOX98224821, Fox 2.0 Shock 26.85 x 16.75 EB1/EB1

The BDS SUSPENSION BDS1907FS 6 INCH LIFT KIT for the 2019-2023 Ford Ranger is the ultimate enhancement for those looking to elevate both the performance and aesthetic of their 4WD truck. Designed to provide an impressive six-inch lift, this comprehensive kit allows for the installation of larger tires, accommodating sizes up to 35 inches, which enhances both ground clearance and off-road capability.

Constructed with durability in mind, the kit features heavy-duty high-arched crossmembers and CNC-machined ductile iron steering knuckles, ensuring improved road handling and off-road resilience. The design also includes top-mounted strut spacers to streamline installation and enhance lift while maintaining a robust steering geometry to preserve vehicle dynamics.

BDS has meticulously crafted this kit with parts that integrate seamlessly into your Ranger. Included are multipiece differential relocation brackets and a formidable skid plate system that offers superior protection during rugged adventures. The rear lift is complemented by high-strength fabricated lift blocks and longer u-bolts, leveling your truck for a balanced look while the standard NX2 Nitro shocks, with optional FOX 2.0 Performance Series shocks, deliver exceptional control across various terrains.

Every component is strategically designed for optimal performance, including a rear shock option such as FOX's advanced aluminum body design, which enhances responsiveness and durability. This lift kit not only transforms your vehicle's stance but also maximizes its capability for off-road exploration, making it ideal for enthusiasts who demand both style and functionality from their Ford Ranger.

When investing in the BDS1907FS, Ford owners can expect a high-performance suspension upgrade that meets the challenges of both on- and off-road adventures.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
