BDS SUSPENSION BDS1906H 3.5 INCH LIFT KIT FORD RANGER 19-23 4WD CAST STEEL NX2 NITRO SHOCKS

Improve the performance and style of your 2019-2023 Ford Ranger truck by installing this 3.5-inch lift kit from BDS. Specially designed for the new Ranger, this 3.5 inch leveling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer.

To further ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel.

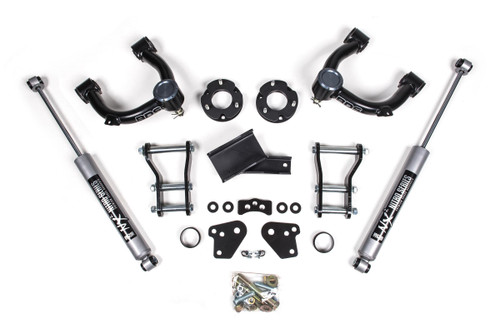

Up front, the lift kit includes steel top mount strut spacers, pre-load spacers, differential relocation brackets and tubular upper control arms. In the rear, this kit includes heavy duty lift shackles and custom-tuned NX2 Nitro or FOX Performance series shocks.

HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits

Easy, 100 percent Bolt-on installation
Maintains factory like ride quality
Standard NX2 Nitro shocks with vehicle-specific valving for better control
Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels

• (Trimming may be required)
• 285 / 65 with 18 x 9 and 5.75 in. Backspace
• 305 / 55 with 20 x 9 and 5 in. Backspace

OE Knuckle Type - Cast Steel
Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle equipped models have different ball joints than models equipped with Aluminum knuckles.

Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

Rear Shock Option
NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

• Front Lift Method: Strut Spacer
• Rear Lift Method: Shackle
• Shocks Included: Yes
• Front Lift Height: 3.5 inch
• Rear Lift Height: 1 inch

Kit Components:

• Includes one BDS013353, 2020-2023 Ford Ranger 3.5 inch Box Kit - Steel OE Knuckle, UPC Code 711745611757
• Includes two BDS85880, Shock- 25.95 x 15.40 x 2 - EB1/EB1, UPC Code 711745609952

Elevate the capabilities of your 2019-2023 Ford Ranger with the BDS Suspension BDS1906H 3.5-Inch Lift Kit. This meticulously engineered lift kit is designed to enhance your truck's performance and aesthetic, allowing for greater tire clearance while maintaining optimal suspension and driveline angles during full articulation.

The innovative 2-piece design features a compact top-mounted steel strut spacer combined with a preload spacer, effectively preventing strain on ball joints and CVs. To maintain the correct drivetrain geometry, the front differential is repositioned with custom relocation brackets, ensuring that CV axle angles are adjusted perfectly while still using your factory front skid plates. The kit also includes performance-oriented upper control arms (UCAs), enhancing strength and suspension travel for a robust off-road experience.

Installation is straightforward with a fully bolt-on design. The components include heavy-duty steel top mount strut spacers, pre-load spacers, and tubular upper control arms, all crafted to ensure durability and performance. The rear section is fortified with heavy-duty lift shackles and your choice of custom-tuned NX2 Nitro shocks, designed to offer superior control and ride quality, whether on rugged trails or smooth highways.

Each UCAs is constructed from 1.5-inch OD tubular material, equipped with indexed ball joint cups for improved alignment and enhanced travel. With maintenance-free rubber bushings and greaseable ball joints, these arms are built for long-lasting, reliable operation. Finished in a rugged black powder coat, they are ready for immediate installation.

For those looking to maximize their lift kit experience, upgrades to FOX 2.0 Performance Series shocks are also available. Compatible tire and wheel recommendations, along with detailed specifications and configurations, ensure that your lift kit installation is seamless and efficient. Transform your Ford Ranger today for an adventurous and elevated driving experience.
