BDS SUSPENSION BDS1906FS 3.5 INCH LIFT KIT FORD RANGER 19-23 4WD CAST STEEL FOX 2.0 PERFORMANCE SHOCKS

Improve the performance and style of your 2019-2023 Ford Ranger truck by installing this 3.5-inch lift kit from BDS. Specially designed for the new Ranger, this 3.5 inch leveling kit is engineered for additional Tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer.

To further ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel.Р’В

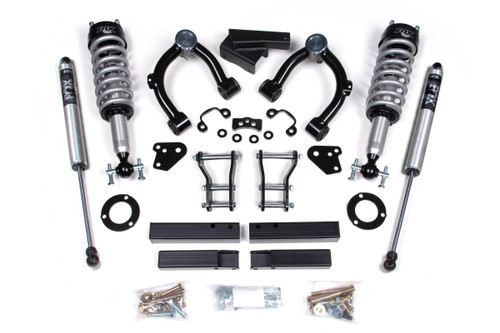

Up front, the lift kit includes steel top mount strut spacers, pre-load spacers, differential relocation brackets and tubular upper control arms. In the rear, this kit

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.

Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Strut Spacer
• Rear Lift Method: Shackle
• Shocks Included: Yes
• Front Lift Height: 3.5 inch
• Rear Lift Height: 1 inch

1. Aftermarket wheels must have a minimum of 93.1mm center hub bore.
2. Tires larger than 285/70r17 or 285/65r18 cannot be installed on factory wheels due to steering knuckle clearance.
3. Will NOT work on trucks equipped with cast steel steering knuckles

• Easy, 100 percent Bolt-on installation
• Maintains factory like ride quality
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

OE Knuckle Type

Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle equipped models have different ball joints than models equipped with Aluminum knuckles. Be sure to verify which factory knuckle your truck has before ordering by referencing our help images when customizing your kit.

Tire Size: 305 / 55 Wheel Diameter: 20 x 9 Back Spacing: 5

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components:

• Includes one BDS013353, 2020-2023 Ford Ranger 3.5 inch Box Kit - Steel OE Knuckle, UPC Code 711745611757
• Includes two FOX98224880, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1

Enhance both the performance and aesthetic appeal of your 2019-2023 Ford Ranger with the BDS SUSPENSION BDS1906FS 3.5-inch Lift Kit. Engineered specifically for the new Ranger, this kit offers a carefully designed 3.5-inch lift, providing the extra tire clearance and improved performance while maintaining optimal suspension and driveline angles during full suspension droop.

The innovative 2-piece design includes top-mounted steel strut spacers paired with preload spacers, effectively avoiding potential damage to ball joints or CV components. With differential relocation brackets included, this lift kit corrects the CV axle angle, ensuring proper drivetrain geometry without sacrificing the factory skid plates. Enhanced with heavy-duty upper control arms (UCAs), this suspension kit is built for superior strength and extended suspension travel.

Installation is straightforward with a fully bolt-on design that guarantees maintenance-free operation. The steel top mount strut spacers, tubular UCAs, and differential relocation brackets combine to maintain factory-like ride quality while enhancing off-road performance. For the rear, heavy-duty lift shackles and specially tuned NX2 Nitro or optional FOX 2.0 Performance Series shocks ensure that you tackle any terrain with confidence.

These performance shocks feature an aluminum body, internal floating piston design, and application-specific valving that maximizes on-road control and off-road capabilities. Finished in durable black powder coat with greaseable ball joints, the BDS 3.5-inch lift kit is ready for immediate installation, enhancing the capability of your Ford Ranger without compromising comfort or reliability. Complete your upgrade today and experience the benefits of superior performance and style wherever your adventures lead.
