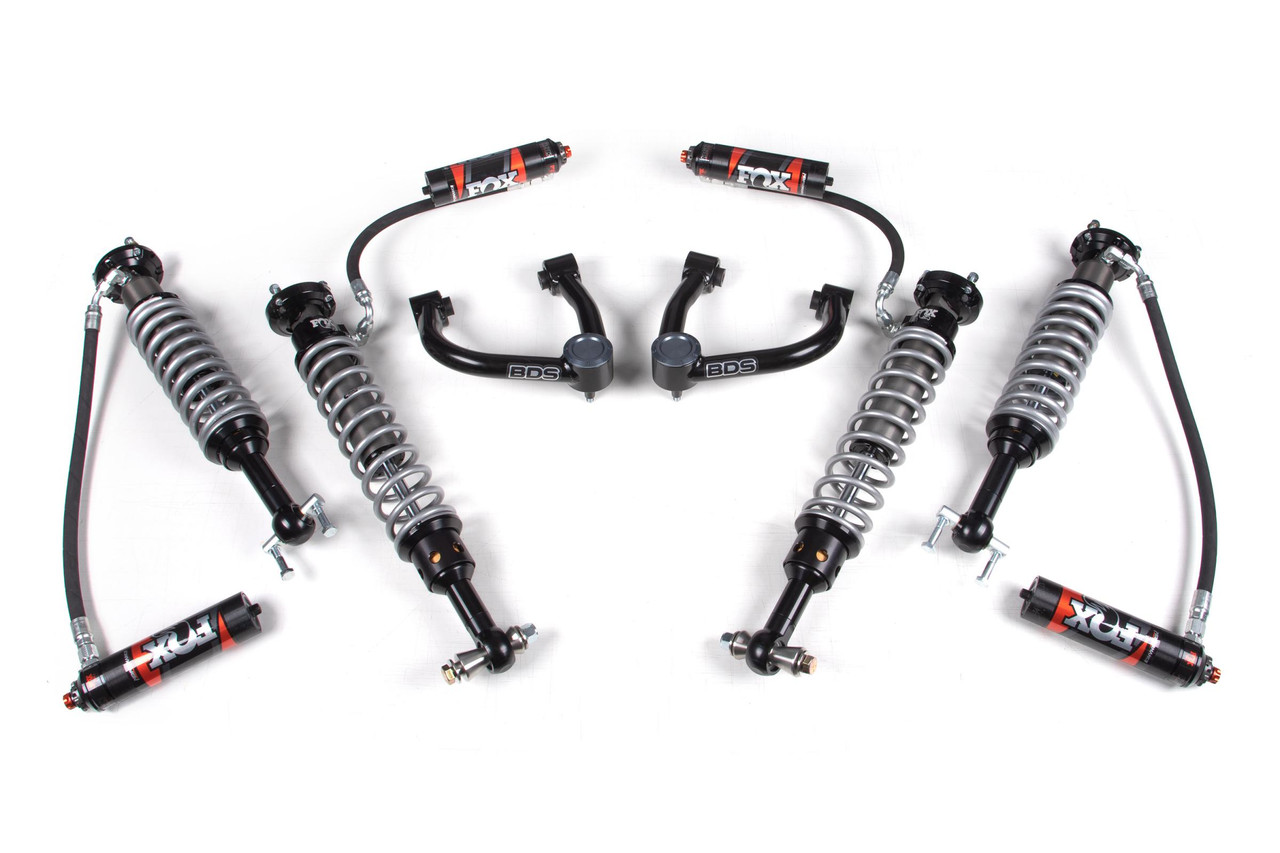

BDS SUSPENSION BDS1905FPE 3 INCH LIFT KIT FOX PERFORMANCE ELITE COIL-OVER'S FORD BRONCO 21-23 UNIBALL CONTROL ARM

Up the ante in your 2021-2023 Ford Bronco 4 Door with style and performance by installing this 3 to 4-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear, BDS utilizes a complementary set of FOX 2.5 Performance Elite coil-over shocks for an improved ride.

Net lift height varies based on the factory suspension configuration as follows: 4-Door Sasquatch-equipped net 3 inch of lift, 4-Door Badlands: net 3.5 inch of lift, and 4-Door Broncos with the base suspension: net 4 inch of lift.

FOX Performance Elite

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.

They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs)

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed high-stength uniball to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

• Front Lift Method: Coil-Over
• Rear Lift Method: Coil-Over
• Shocks Included: Yes
• Front Lift Height: 3.5 inch
• Rear Lift Height: 3.5 inch

1. Lift height is based on base suspension package, Badlands and Sasquatch models will net less lift however final ride height is the same for all trims.
2. Do NOT hit the aluminum knuckle with a hammer to separate the ball joint. Use appropriate ball joint separation tool (OTC 204592).
3. Will not work with models with a height sensor attached to the UCA.
4. Does not fit Bronco Sport models.
5. Not compatible with Raptor Models.
6. Is compatible with HOSS 3.0 Bronco Models

Will provide the following lift amounts:

• 2 Door Without Sasquatch Package - 4.5 inch Lift
• 4 Door Without Sasquatch Package - 4 inch Lift
• 2 Door With Sasquatch Package - 3.5 inch Lift
• 4 Door With Sasquatch Package - 3 inch Lift
• FOX 2.5 Performance Elite series coil-overs offer improved damper performance over stock
• Performance UCAs increase strength and allow for more suspension travel
• FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.5/5.53-4 hrs

Kit Components:

• Includes one BDS123254, 2021-2023 Ford Bronco Upper Control Arm - BDS, UPC Code 711745604117
• Includes one FOX88306212, Kit: 21-ON Ford Bronco, 4 Door, w/UCA, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, Base 4 inch Lift, Sasquatch 3 inch Lift, Dual Speed Compression Adjust
• Includes one FOX88306213, Kit: 21-ON Ford Bronco, 4 Door, Rear Coilover, 2.5 Truck Fox Performance Elite Series, R/R, Base 3 inch Lift, Sasquatch 2 inch, Dual Speed Compression Adjust

Elevate your adventure with the BDS Suspension BDS1905FPE 3 Inch Lift Kit, specifically engineered for 2021-2023 Ford Bronco 4 Door models. This comprehensive lift kit serves as a gateway to performance, style, and enhanced capabilities, allowing you to confidently tackle any terrain while accommodating up to 37-inch tires.

At the forefront of this lift kit are the FOX Performance Elite 2.5 coil-over shocks, designed to provide superior on-road comfort and off-road resilience. With a remote reservoir that ensures optimal fluid cooling, these shocks maintain performance under extreme conditions. The dual-speed compression adjustment feature allows for precise tuning with 10 low-speed and 12 high-speed compression levels, making this kit adaptable to a variety of driving styles and terrains.

The robust design of the kit includes heavy-duty tubular upper control arms, engineered for enhanced strength and increased suspension travel. Built with 1.5-inch OD x .120-wall tubular construction, these control arms feature an indexed high-strength uniball for superior performance. With maintenance-free operation from specific rubber bushings at one end and greaseable ball joints at the other, durability and smooth performance are assured.

The lift kit provides varying lift heights based on your factory suspension type: 3 inches for Sasquatch-equipped 4-Door Broncos, 3.5 inches for Badlands, and up to 4 inches for base suspension models. Installation is simplified with 100% bolt-on components, ensuring that enthusiasts can upgrade their Bronco with ease, while the included factory protection plus drivetrain warranty provides peace of mind.

Transform your Ford Bronco into a capable, eye-catching vehicle with the BDS1905FPE Lift Kit, where performance meets design in perfect harmony. Enjoy the adventure that awaits you!
