BDS SUSPENSION BDS188FS 4 INCH LIFT KIT AVALANCHE SURBURBAN TAHOE OR YUKON 1500 07-14 4WD 2 INCH LIFT COIL SPACER FOX 2.0 PERFORMANCE SHOCKS

Take your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles.

These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers coil spring spacers to properly level the vehicle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Spacer
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

1. Will not work with auto-ride equipped vehicles.
2. Strut compressor required for installation.
3. Minor premature engagement of the StabiliTrak system may occur during certain driving maneuvers.
4. Minor frame bracket modification and welding are required.
5. 20 inch wheels with 5 inch to 5-3/4 inch backspacing are recommended to reduce trimming.
6. Add 121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Tire Size: 33 x 12.5 Tire Size 2: 33 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.75

Rear Lift Option

These vehicles vary from level to 1-2 inch tail high from the factory. We offer a 2 inch rear kit as well as a 3 inch rear lift kit. Be sure to measure your vehicle and order the appropriate rear lift height to level your SUV.

2 Inch Lift Coil Spacer

• If your vehicle is 2 inch tail high from the factory then this is the appropriate selection to level your vehicle.
• This system
• Includes 2 inch coil spacers.

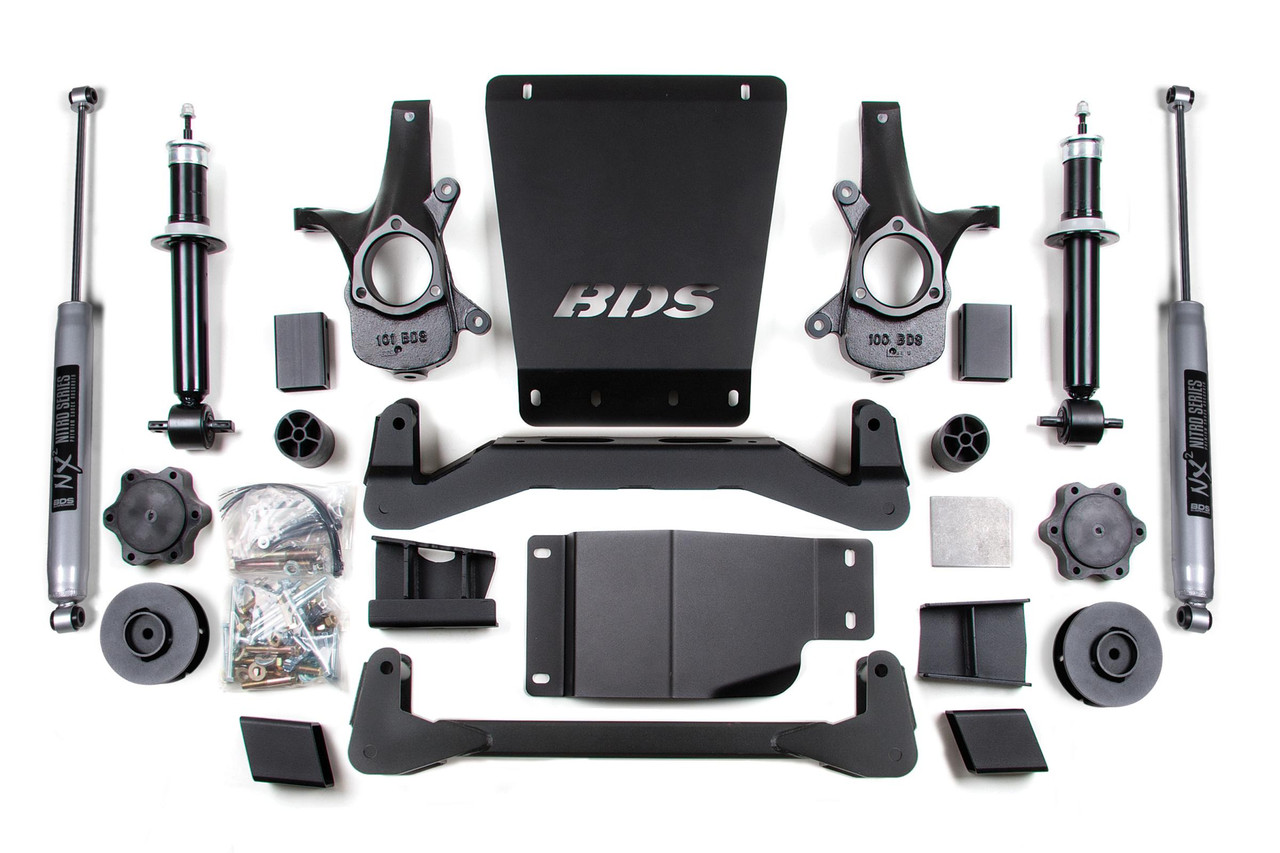

Kit Components:

• Includes one BDS021209, 2007-2019 GM SUV 2 Inch Rear Kit, UPC Code 658848614516
• Includes one BDS021640, 07-13 GM 1500/SUV 4-6 Inch Front Box (1of2), UPC Code 658848614929
• Includes one BDS021644, 2007-2013 GM 1500/SUV 4-6 Inch Front Box (2of2), UPC Code 658848614943
• Includes one BDS121613, 07-13 GM Front Skid Plate, UPC Code 658848619108
• Includes one BDS98141, GM K1500 4 Inch Struts, UPC Code 711745610293
• Includes two FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1

Elevate the performance and appearance of your 2007-2014 Chevy Avalanche, Suburban, Tahoe, or GMC Yukon 1500 with the BDS SUSPENSION BDS188FS 4 INCH LIFT KIT. This comprehensive lift kit transforms your truck, offering a robust 4-inch front lift and a 2-inch rear lift that accommodates tires up to 33 inches in size, enhancing both stance and off-road capability.

Crafted with precision, the kit features high-clearance design principles that not only improve ground clearance but also provide unparalleled strength and off-road protection. Keep your vehicle’s handling characteristics sharp with advanced suspension and steering geometry adjustments. The kit incorporates full-length replacement strut shocks, along with heavy-duty 1/4-inch thick steel crossmembers designed to withstand the roughest terrains.

Bundled in this package are the heavy-duty skid plates and multipoint differential relocation brackets, ensuring a secure axle position while optimizing CV angles. Steering corrections are facilitated by the CNC-machined ductile iron steering knuckles, maintaining compatibility with factory tie rod ends for seamless steering performance.

In the rear, the kit includes premium FOX 2.0 Performance Series shocks or NX2 Nitro shocks, which are finely tuned for an exceptional ride quality. The included coil spring spacers ensure your vehicle sits level for a well-balanced appearance.

Installation is straightforward for those with mechanical skills, although minor bracket modifications and welding may be necessary. Vehicle compatibility excludes auto-ride equipped models, and a strut compressor is required for installation. For optimal performance, it’s recommended to pair with 20-inch wheels having 5-5.75 inch backspacing to reduce any trimming needs.

Experience a complete transformation with the BDS SUSPENSION BDS188FS lift kit, designed to thrill both on and off-road enthusiasts alike.
