BDS SUSPENSION BDS187H 4 INCH LIFT KIT SILVERADO/SIERRA 1500 07-13 2WD LEAF SPRINGS NX2 NITRO SHOCKS

Overhaul the style and ride of your 2WD 2007-2013 Chevy Silverado and GMC Sierra 1500 with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity.

Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 5 inch

1. Strut compressor required for installation.
2. This system will not fit 2007 Classic models.
3. 20 inch wheels with 5-1/2 inch to 5-3/4 inch backspacing recommended to reduce trimming.
4. Will not fit 2009-12 Two-Mode Hybrid models with Electronic Power Steering (EPS)
5. Will not work on extended/crew cab long box vehicles

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 33 x 12.5 Tire Size 2: 33 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.75

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

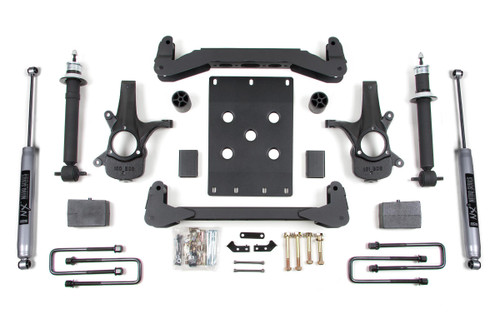

Kit Components:

• Includes two BDS001559, GM 1/2 ton 5.5in Rear Spring, UPC Code 658848611218
• Includes one BDS011458, 99-13 GM 1500 4 Inch Rear Box Kit, UPC Code 658848611874
• Includes one BDS021640, 07-13 GM 1500/SUV 4-6 Inch Front Box (1of2), UPC Code 658848614929
• Includes one BDS021643, 07 GM 2wd (2of2), UPC Code 658848614936
• Includes two BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1, UPC Code 711745609679
• Includes one BDS98141, GM K1500 4 Inch Struts, UPC Code 711745610293

Transform your 2WD 2007-2013 Chevy Silverado or GMC Sierra 1500 with the BDS 4-inch Lift Kit, designed to elevate both your vehicle’s appearance and off-road prowess. This comprehensive lift kit not only enhances your truck's stance but also provides the necessary modifications to accommodate up to 35-inch tires for that commanding road presence.

Engineered with a high-clearance design, the BDS lift kit maximizes ground clearance while ensuring improved strength and off-road protection. The kit includes meticulously crafted components such as durable crossmembers made from 1/4-inch thick steel that provide a rigid subframe and advanced skid plates to guard against rugged terrain.

Steering performance is optimized with CNC-machined ductile iron steering knuckles, which realign your steering geometry for excellent handling and compatibility with the Electronic Stability Control (ESC) system. The comprehensive front suspension lift features sway bar drops, bump stop extensions, and brake line brackets, along with high-performance NX2 Nitro or FOX 2.0 Performance Series shocks for a smoother ride.

In the rear, you have the choice of either replacement lift block or Glide-Ride leaf springs to elevate and level your truck’s stance without sacrificing ride quality or load capacity. All necessary components, including new u-bolts and brake line brackets, are provided to ensure a seamless installation.

With a robust construction and thoughtful design features like multipoint differential relocation brackets, the BDS 4-inch Lift Kit is built for serious truck enthusiasts seeking reliable performance on and off the road. Elevate your driving experience, enhance stability, and tackle any terrain with confidence.
