BDS SUSPENSION BDS185FS 4 INCH LIFT KIT SILVERADO/SIERRA 1500 07-13 4WD LEAF SPRINGS FOX 2.0 PERFORMANCE

Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

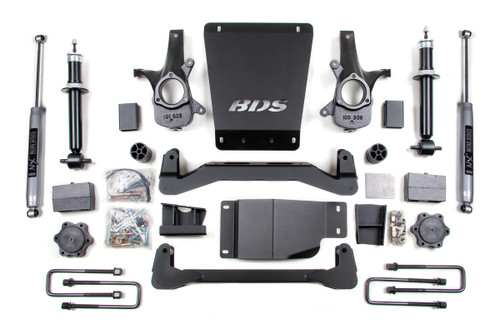

Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles.

These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 5 inch

1. Strut compressor required for installation.
2. This system will not fit 2007 Classic models.
3. Installation of the optional rear leaf springs requires removal of the fuel tank.
4. Requires frame bracket modification.
5. Less trimming is required if 20 inch x 9 inch Wheels with 5-3/4 inch backspacing are used.
6. Traction bars will not fit regular cab, short box models.
7. Add 121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.
8. Will not fit 2009-11 Two-Mode Hybrid models with Electronic Power Steering (EPS)
9. Stock 20 inch wheels can be re-installed only with factory Tire size. Factory 17 and 18's cannot be re-installed.

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Tire Size: 33 x 12.5 Tire Size 2: 33 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.75

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Kit Components:

• Includes two BDS001559, GM 1/2 ton 5.5in Rear Spring, UPC Code 658848611218
• Includes one BDS011458, 99-13 GM 1500 4 Inch Rear Box Kit, UPC Code 658848611874
• Includes one BDS021640, 07-13 GM 1500/SUV 4-6 Inch Front Box (1of2), UPC Code 658848614929
• Includes one BDS021644, 2007-2013 GM 1500/SUV 4-6 Inch Front Box (2of2), UPC Code 658848614943
• Includes one BDS121613, 07-13 GM Front Skid Plate, UPC Code 658848619108
• Includes one BDS98141, GM K1500 4 Inch Struts, UPC Code 711745610293
• Includes two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1, UPC Code 692878899062

Enhance the performance and style of your 2007-2013 Chevy Silverado or GMC Sierra 1500 with the BDS SUSPENSION BDS185FS 4 INCH LIFT KIT. This expertly engineered lift kit is designed to elevate your truck’s stance while maximizing its off-road capabilities.

Built with a high-clearance design, the BDS lift kit not only improves ground clearance but also strengthens the overall structure of your vehicle. It includes robust components such as full-length replacement strut shocks and high-arch 1/4-inch thick steel crossmembers, ensuring enhanced durability. The multipiece differential relocation brackets and heavy-duty skid plates provide additional off-road protection, making your truck ready to tackle any terrain with confidence.

The kit features CNC-machined ductile iron steering knuckles that correct steering geometry at the new ride height, promoting excellent on-road handling characteristics while maintaining compatibility with electronic stability control systems.

For rear support, choose between replacement lift blocks or full Glide-Ride leaf springs to achieve a balanced lifted stance. The kit retains factory ride quality and load capacity, along with providing new u-bolts and brake line brackets. The FOX 2.0 Performance Series shocks included in this kit offer a superior riding experience, boasting a monotube design and application-specific valving that maximizes performance.

With this comprehensive kit, your truck can accommodate tires up to 33 inches and 20-inch wheels. Installation may require minor modifications and specific tools like a strut compressor. Experience unmatched versatility, improved capabilities, and a commanding presence on and off the road with the BDS SUSPENSION BDS185FS 4 INCH LIFT KIT. Transform your vehicle into a powerhouse that combines style with functional performance.
