BDS SUSPENSION BDS184FDSC 4 INCH LIFT KIT FOX 2.5 COIL-OVER SILVERADO/SIERRA 1500 07-13 4WD 5 INCH BLOCK FOX 2.5 PERFORMANCE SHOCKS

Upgrade the performance and capability of your 2007-2013 Chevy Silverado and GMC Sierra 1500 trucks with 4-inch coil-over suspension lift kit by BDS. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and FOX 2.0 Performance Series shocks.

FOX 2.5 Coil-Overs

FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.

Dual Speed Compression Adjust Adjustment

FOX 2.5 coil-overs are available with optional Dual Speed Compression Adjust (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 5 inch

1. Strut compressor required for installation
2. This system will not fit 2007 classic models
3. Installation of rear leaf springs requires removal of the fuel tank
4. Requires frame bracket modification
5. 20 inch wheels with 5 inch to 5-3/4 inch backspacing recommended to reduce trimming.
6. Traction bars will not fit regular cab short box models.
7. Add 121651 Auxillary Differential support bracket for AWD models. Also may require front driveline modification.
8. Will not fit two-mode hybrid models with electronic power steering.
9. Stock 20 inch wheels can be re-installed only with factory Tire size. Factory 17 and 18's cannot be re-installed.

• FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability
• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Coil-Over Option

FOX 2.5 Coil-Overs with Dual Speed Compression Adjust Adjuster

All the FOX Coil-Over Advantages Plus:

• Dual Speed Compression (Dual Speed Compression Adjust) Adjuster
• Increases both low and high-speed compression levels up to 25 percent
• Easy twist knobs for Low-Speed and High-Speed Compression adjustment
• Provides added control and comfort for on-road use
• More aggressive damping for use off-road

Tire Size: 33 x 12.5 Tire Size 2: 33 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.75

Rear Lift Option 5 Inch Block Kit

• The 5 inch rear block replaces the factory 2 inch block
• Nets 3 inch of rear lift to level the vehicle.
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

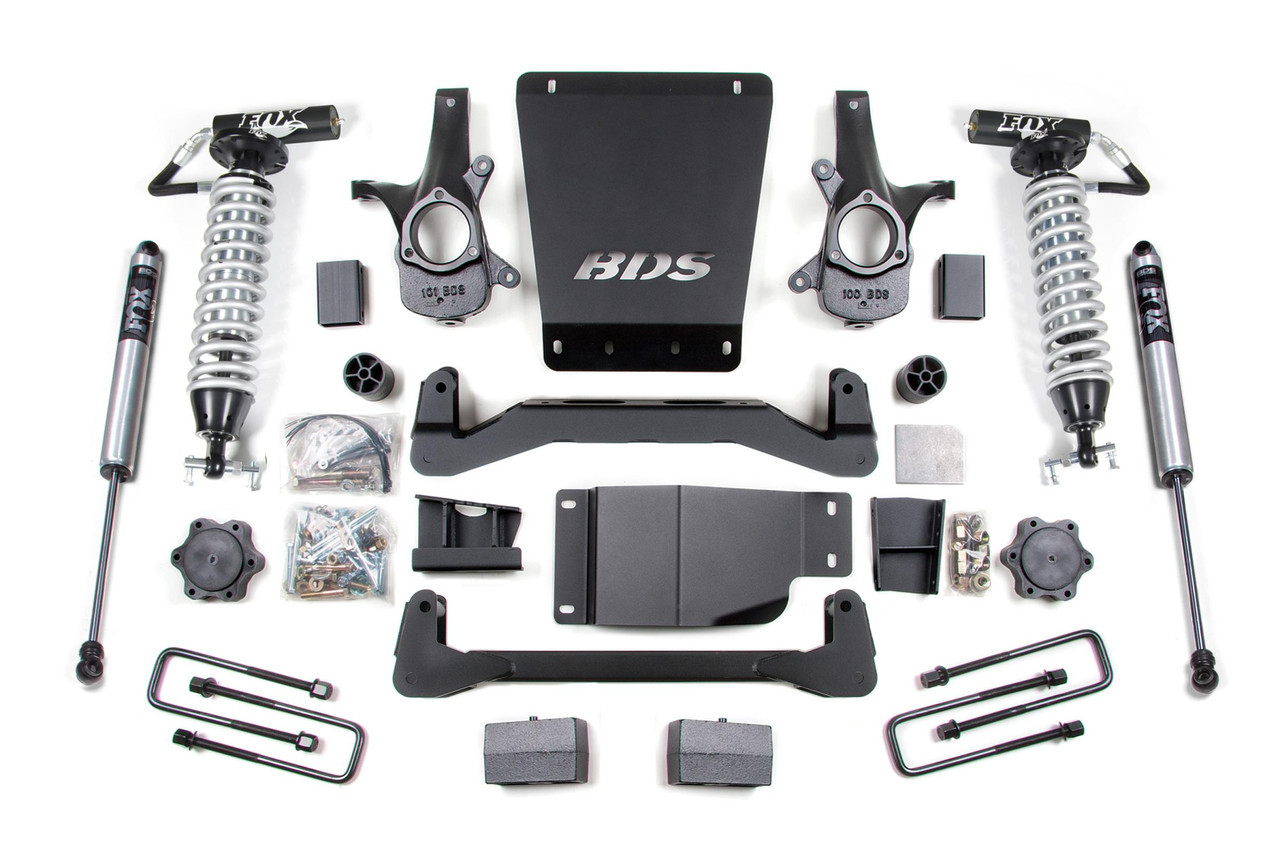

Kit Components:

• Includes one BDS011457, 99-10 GM 1500 3in Rear Block Kit, UPC Code 658848611867
• Includes one BDS021640, 07-13 GM 1500/SUV 4-6 Inch Front Box (1of2), UPC Code 658848614929
• Includes one BDS021644, 2007-2013 GM 1500/SUV 4-6 Inch Front Box (2of2), UPC Code 658848614943
• Includes one BDS121613, 07-13 GM Front Skid Plate, UPC Code 658848619108
• Includes one FOX88306135, Kit: BDS 07-18 GM 1500 Front Coilover, 2.5 Series, R/R, 4 inch Lift, Dual Speed Compression Adjust, UPC Code 814897013865
• Includes two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1, UPC Code 692878899062

Elevate your off-road adventures and enhance the on-road experience of your 2007-2013 Chevy Silverado or GMC Sierra 1500 with the BDS SUSPENSION BDS184FDSC 4 Inch Lift Kit. This expertly engineered suspension lift kit features cutting-edge FOX 2.5 coil-over shocks, designed to deliver exceptional performance and comfort. With a 4-inch lift in the front and a robust 5-inch block in the rear, your truck will stand taller while providing improved ground clearance and a commanding presence on any terrain.

BDS’s high-clearance design ensures not only superior ground clearance but also enhanced strength and off-road protection. This kit corrects suspension and steering geometry for remarkable handling, making your driving experience both smooth and controlled. The kit includes high-arched, 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates, ensuring durability and robust performance during off-road excursions.

Equipped with CNC-machined ductile iron steering knuckles and additional components such as sway bar drops and brake line brackets, this comprehensive suspension solution prepares your truck for all challenges. The included FOX 2.5 performance shocks are tuned with race-proven technology, providing remarkable on-road comfort and off-road capability. With the optional Dual Speed Compression Adjustment feature, easily tune your suspension for both high-speed and low-speed settings to tackle any environment confidently.

Installation is facilitated with all necessary hardware, though specific tools may be required. The lift kit is compatible with 33 x 12.5 tire sizes and designed to be a perfect fit for enhancing your vehicle's performance and aesthetic appeal. BDS stands behind its product, offering a Factory Protection Plus drivetrain warranty, ensuring peace of mind with every adventure. Transform your ride and redefine your performance with the BDS184FDSC lift kit today.
