BDS SUSPENSION BDS1835H 4 INCH LIFT KIT CHEVY SILVERADO 1500 ZR2 & GMC SIERRA 1500 AT4X 22-23 NX2 NITRO

Improve the look and ride of your Chevy Silverado ZR2 and GMC AT4X 1500 trucks with a 4-inch suspension lift kit by BDS Suspension. Works with trucks equipped with Multimatic shocks only.

Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35-37 inch tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and shock relocation brackets to retain the Multimatic shock system without error.

High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Front Lift Method: Cross-Member
Rear Lift Method: Block
Shocks Included: No
Front Lift Height: 4 inch
Rear Lift Height: 3 inch

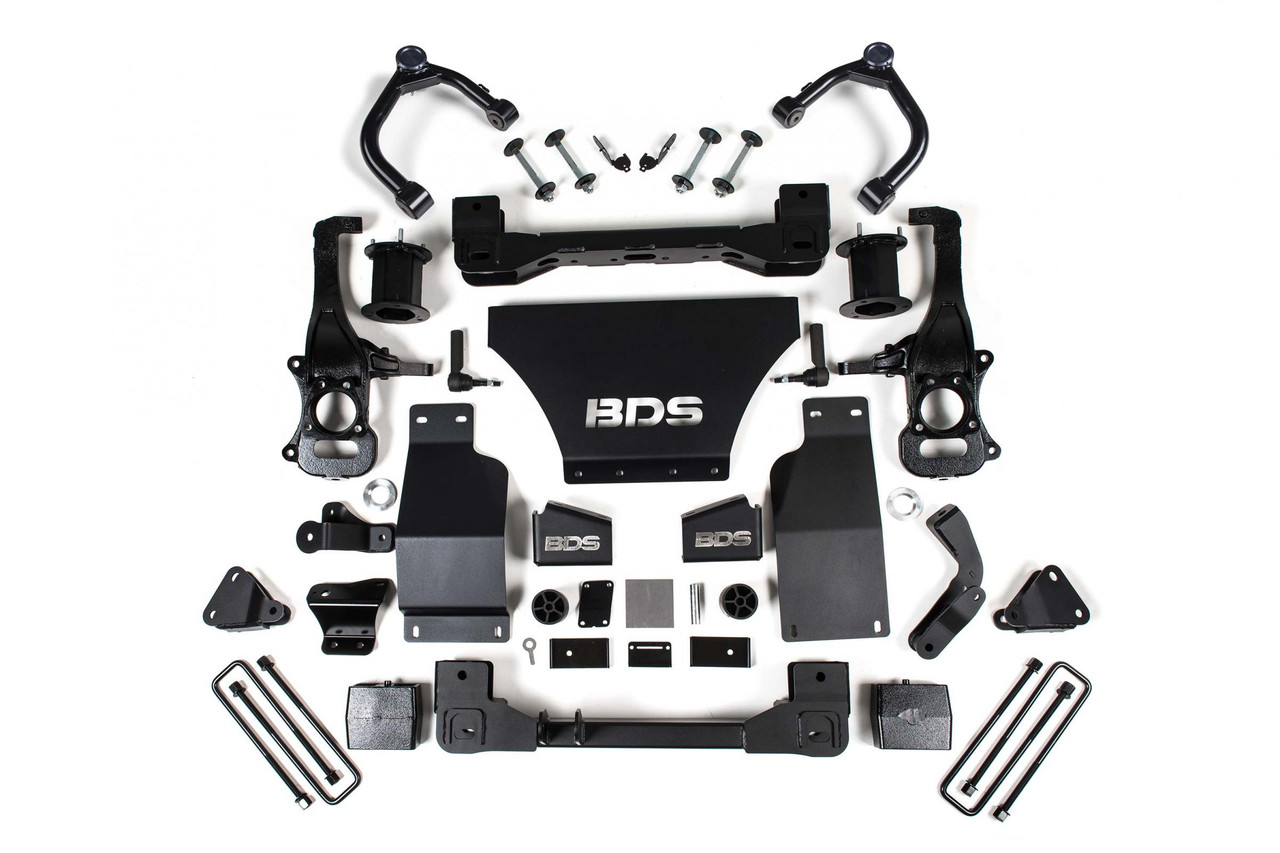

Kit Components:

• Includes one BDS011518, 2019-2024 Chevy/GMC 1500 5 inch Rear Box Kit, UPC Code 658848611935
• Includes one BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible), UPC Code 658848615056
• Includes one BDS021665, 2019-2024 Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4 inch and 6 inch Compatible, UPC Code 658848615063
• Includes one BDS021682, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 1of2, UPC Code 658848615131
• Includes one BDS021683, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 2of2, UPC Code 658848615148
• Includes one BDS121405, 2019-2024 GMC 4 inch Adaptive Ride Box Kit, UPC Code 658848619009

Elevate your driving experience with the BDS Suspension BDS1835H 4 Inch Lift Kit, specifically designed for the Chevy Silverado 1500 ZR2 and GMC Sierra 1500 AT4X models from 2022 to 2023. This comprehensive suspension lift kit transforms both the look and performance of your truck, creating a more aggressive stance while enhancing your vehicle’s off-road capabilities.

Crafted for trucks equipped with Multimatic shocks, this kit enables clearance for larger 35-37 inch tires, allowing you to tackle any terrain with confidence. Featuring BDS’s renowned high-clearance design, you'll experience increased ground clearance, strength, and superior off-road protection. The design also ensures proper suspension and steering geometry, delivering outstanding on-road handling characteristics without compromising safety.

The front of the kit boasts top-mounted strut spacers and durable 1/4-inch thick steel crossmembers. It incorporates multipiece differential relocation brackets and robust skid plates, providing maximum protection against the rigors of off-road adventures. Additionally, steering geometry is enhanced with precision-engineered CNC-machined ductile iron steering knuckles and high-quality tie rod ends, ensuring compatibility with electronic stability control systems and maintaining optimal steering angles.

In the rear, a heavy-duty lift block replaces the factory block to level the stance while retaining ride quality and load capacity. New u-bolts and shock relocation brackets are included to correctly position the Multimatic shock system.

With the BDS1835H Lift Kit, you're not just upgrading your truck; you’re enhancing its capability, style, and versatility. Embrace the challenge of any trail with full confidence and superior driver experience.
