BDS SUSPENSION BDS1817H 4.5 INCH LIFT KIT SILVERADO/SIERRA 2500HD/3500 01-10 SRW 4WD NARROW TRACK KNUCKLE NX2 NITRO SHOCKS

Designed to improve stance, performance, and capability, the BDS 4.5-inch lift kit for the 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 4WD is a must have upgrade. For maximum ground clearance. This kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function..

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4.5 inch
• Rear Lift Height: 3 inch

1. Torsion Bar tool required to load/unload the torsion bars.
2. Some welding is required.
3. Requires frame bracket modification and differential mount modification.
4. Traction bars will not fit standard cab/short box models and are designed to work on vehicles with 4 inch to 8 inch of lift.
5. 20 inch wheels with 5 inch to 5-3/4 inch backspacing recommended to reduce trimming.
6. Gas models require exhaust modification.
7. Narrow track knuckle will slightly increase the turning radius.
8. For tail high stance use #119157 add-a-leaf with the block kit.
9. Not Recommended for Suburban / Yukon models with AutoTrac Transfer Case.
10. Does NOT work with rear Autoride equipped SUV's
11. Does not fit dual rear wheel trucks.

• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Choice of NX2 or FOX 2.0 gas shocks for improved performance

Track Width Option Narrow Track Knuckle

This system is available with two different knuckle designs. The standard knuckle widens the track width, but does not affect the turning radius. The narrow track knuckle reduces the total track width change by about 1.5 inch overall but does increase the turning radius slightly.

Tire Size: 33 x 12.5 Tire Size 2: 33 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.5/5.75

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

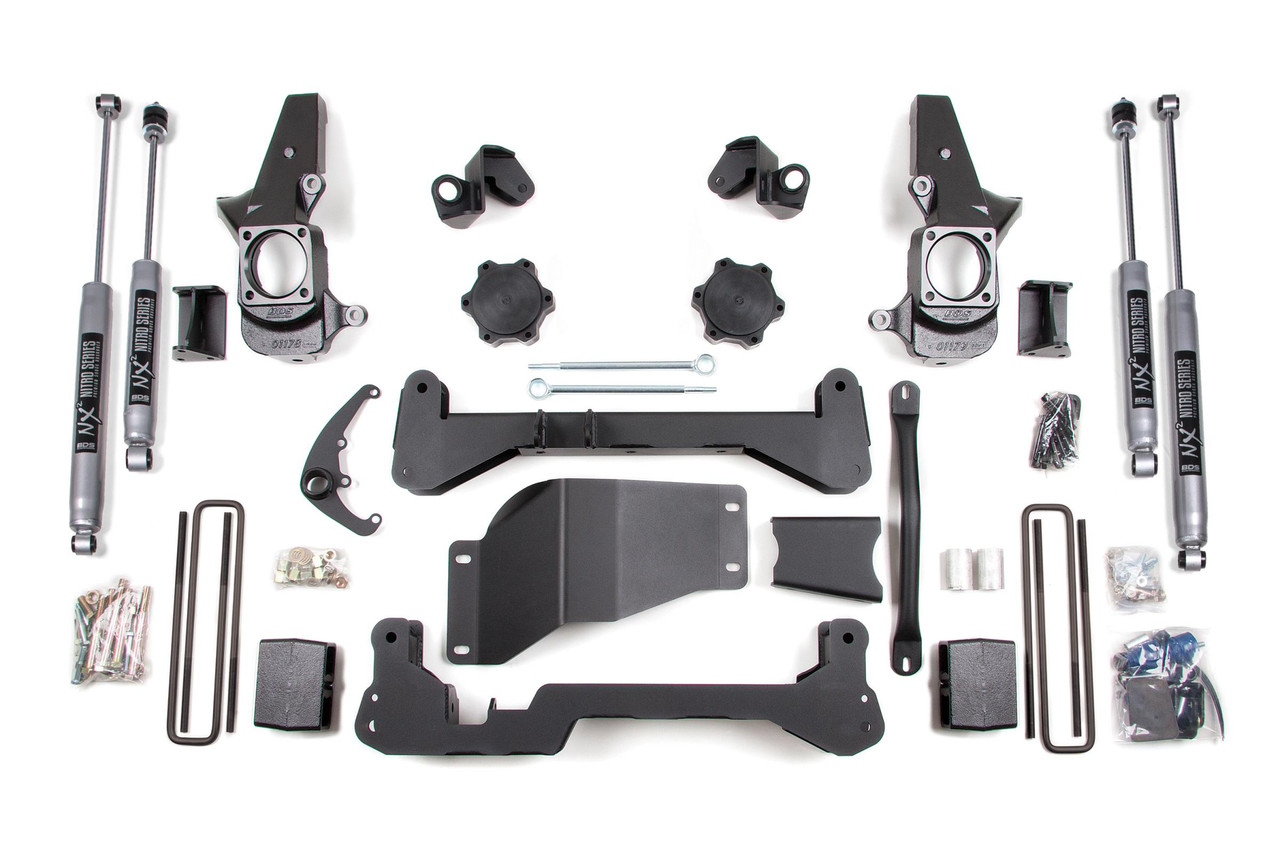

Kit Components:

• Includes one BDS011319, 01-10 GM HD 3in Rear Kit, UPC Code 658848611768
• Includes one BDS021451, 01-10 GM HD 4.5in Box Kit (2of3), UPC Code 658848614677
• Includes one BDS021452, 01-10 GM HD 4.5in Box Kit (3of3), UPC Code 658848614684
• Includes one BDS021635, HD Narrow Track Knuckle Kit, UPC Code 658848614912
• Includes two BDS85605, Shock - 22.20 x 13.35 x 2 - S50/EB1, UPC Code 711745609310
• Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686

The BDS Suspension BDS1817H 4.5 Inch Lift Kit is designed specifically for 2001-2010 Chevy Silverado and GMC Sierra 2500 HD 4WD trucks, offering a transformative lift that enhances both performance and aesthetics. This kit provides an impressive 4.5 inches of lift, allowing for the installation of larger tires up to 33 inches, thereby significantly improving ground clearance and off-road capability.

Crafted with high-quality components, the kit leverages BDS's renowned high-clearance design, ensuring that improved ground clearance does not compromise strength or suspension integrity. The installation includes pivotal features such as torsion bar relocation brackets and heavy-duty 1/4-inch thick steel crossmembers, which work in tandem with CNC-machined ductile iron steering knuckles to optimize steering geometry, enhancing both on-road handling and off-road maneuverability.

Safety and durability are at the forefront of this design. The heavy-duty skid plates and multipoint differential relocation brackets are engineered to protect critical components while maintaining axle alignment. Additionally, a choice of the NX2 Nitro or FOX 2.0 Performance Series shocks significantly boosts ride quality and shock absorption.

Rear lift options include replacement lift blocks or full Glide-Ride leaf springs, providing flexibility based on individual preferences and ensuring a leveled stance. Complete with all necessary hardware, including new u-bolts and brake line brackets, this comprehensive kit simplifies the installation process, making it an ideal choice for anyone seeking enhanced capability and a striking aesthetic.

With its robust engineering and thoughtful design, the BDS Suspension BDS1817H 4.5 Inch Lift Kit stands as a vital upgrade for those looking to elevate their truck’s performance, style, and off-road prowess. Experience unparalleled quality and reliability with every rugged adventure.
