BDS SUSPENSION BDS1816H 6 INCH LIFT KIT CHEVY/GMC AVALANCHE SURBURBAN TAHOE OR YUKON 1500 00-06 4WD AUTO RIDE EQUIPPED

Designed to improve stance, performance, and capability, the BDS 6-inch lift kit for the 2000-2006 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 4WD is a must have upgrade.

For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member.

This kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

The rear lift is accomplished with new coil springs, track bar relocation, sway bar links and extended bump stops. Also for the rear choose between brackets for Auto Ride equipped vehicles or precision tuned NX2 Nitro and premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6.5 inch
• Rear Lift Height: 5.5 inch

1. Special tool (Kent Moore Tools Part J-42393) required to unload/load torsion bars. Not available through BDS.
2. Requires frame bracket modification and differential mount modification.
3. All wheel drive models will require front drive line modification.
4. If equipped with stock 17 inch wheels, then must replace with 17 inch or larger aftermarket wheels.
5. Larger Tires cannot be installed on OEM wheels.
6. Auto-Ride equipped vehicles require part 121011 in place of front and rear shocks.
7. System will not fit 2000-2006 model Escalades.
8. Some 2000 Model year Tahoes and Yukons are the older 1992-1998 body style. These trucks need kit 193H_SUV.

• High Clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Choice of NX2 or FOX 2.0 gas shocks for improved performance

Auto Ride Equipped

• Required for a vehicle equipped from the factory with auto-ride.
• Maintains the factory air shocks.
• Will not fit models equipped with Magnetic Ride Control

Tire Size: 34 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.75

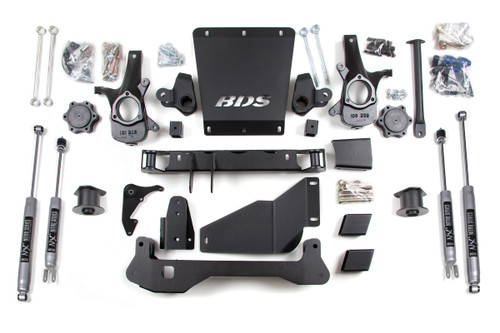

Kit Components:

• Includes one BDS021608, 99-04 GM 1500/SUV Rear Coil, UPC Code 658848614806
• Includes one BDS021610, 99-03 GM 1500/Silverado Box Kit (1of2), UPC Code 658848614820
• Includes one BDS021617, Torsion Bar System, UPC Code 658848614837
• Includes one BDS021626, 99-06 K1500 Main Box Kit, UPC Code 658848614851
• Includes one BDS121011, 99-06 Auto-Ride Kit, UPC Code 658848618873
• Includes one BDS121614, Front Skid Plate, UPC Code 658848619115

Elevate your driving experience with the BDS Suspension BDS1816H 6-Inch Lift Kit, specifically designed for the 2000-2006 Chevy Avalanche, Suburban, Tahoe, and GMC Yukon 1500 4WD equipped with Auto Ride. Engineered to enhance your vehicle's stance, performance, and off-road capability, this lift kit is an essential upgrade for serious adventurers and everyday drivers alike.

At the heart of this kit is its innovative No Torsion Bar Drop System, meticulously crafted to mount torsion bars directly to the top of the lower a-arm, eliminating the cumbersome need to drop the torsion bar cross-member. With this lift kit, your truck can comfortably accommodate tires up to 35 inches, providing enhanced ground clearance and control.

The front of the system boasts robust 1/4-inch thick steel crossmembers and multi-piece differential relocation brackets that work together to deliver optimum strength and off-road protection. Corrected steering geometry is maintained through high-strength, CNC-machined ductile iron steering knuckles that ensure your steering remains precise and responsive.

For the rear, new coil springs, track bar relocation, sway bar links, and extended bump stops elevate your truck while ensuring stability and comfort. Drivers also have the option to choose between premium NX2 Nitro or FOX 2.0 Performance Series shocks for tailored performance.

Crafted with high-clearance design elements, reinforced skid plates for protection, and a comprehensive suite of installation components, the BDS 6-inch lift kit is designed to maximize your vehicle’s off-road potential. With the added peace of mind from the Factory Protection Plus drivetrain warranty, you can tackle any terrain with confidence and style.
