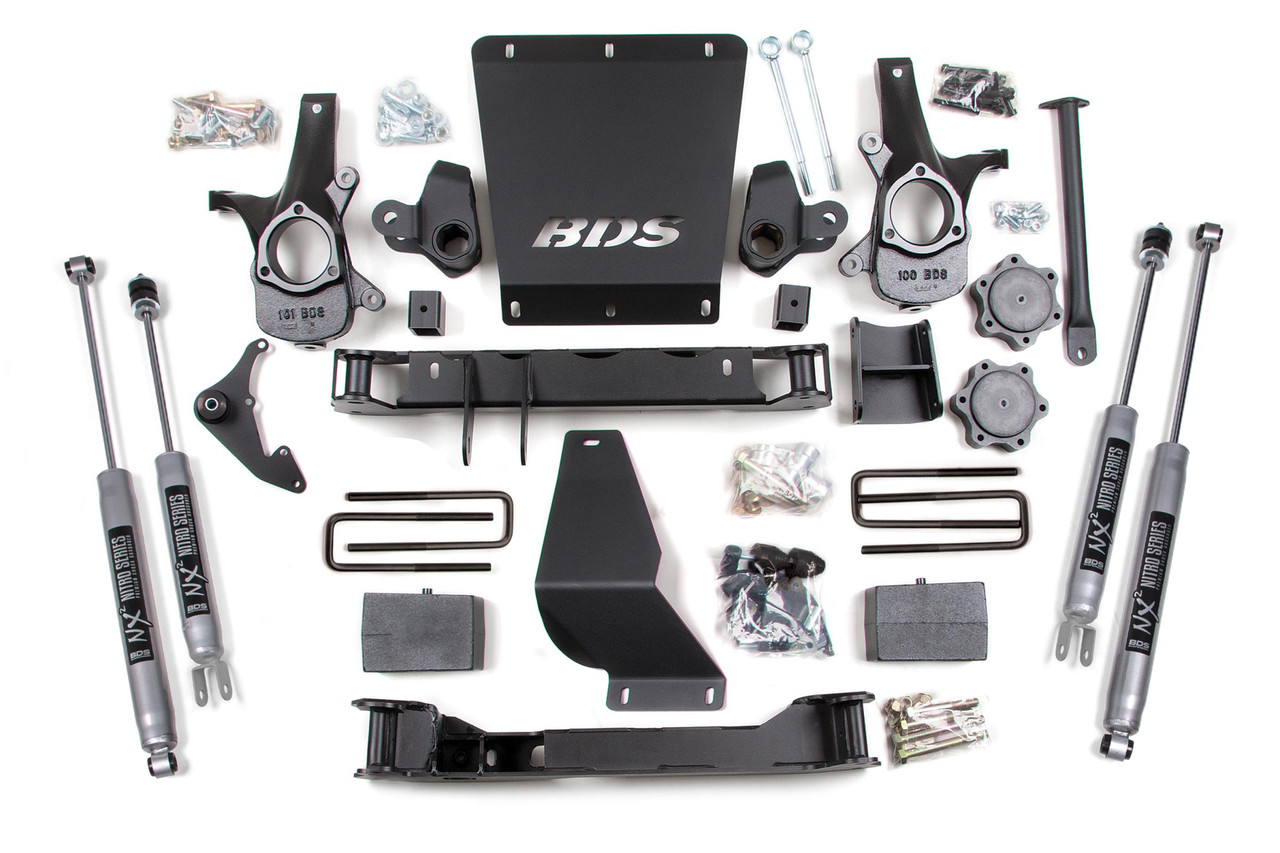

BDS SUSPENSION BDS180FS 6 INCH LIFT KIT SILVERADO/SIERRA 1500 99-06 4WD LEAF SPRINGS FOX 2.0 PERFORMANCE

Designed to improve stance, performance, and capability, the BDS 6-inch lift kit for the 1999-2006 Chevy Silverado and GMC Sierra 1500 4WD is a must have upgrade.

For maximum ground clearance, BDS designed a No Torsion Bar Drop System where the torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar cross-member. This kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

1. Special tool (Kent Moore Tools Part# J-42393) required to unload/load torsion bars. Not available through BDS.
2. Requires frame bracket modification and differential mount modification as well as minor welding.
3. If equipped with stock 17 inch wheels, then must replace with 17 inch or larger aftermarket wheels.
4. AWD models will require front driveline modification.
5. Will not fit Quadsteer equipped models.

• High Clearance design w/ no torsion bar drop maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Choice of NX2 or FOX 2.0 gas shocks for improved performance

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Tire Size: 35 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.75

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components:

• Includes two BDS001559, GM 1/2 ton 5.5in Rear Spring, UPC Code 658848611218
• Includes one BDS011558, 99-03 GM 1/2 ton 5in Rear Box Kit, UPC Code 658848611973
• Includes one BDS021610, 99-03 GM 1500/Silverado Box Kit (1of2), UPC Code 658848614820
• Includes one BDS021617, Torsion Bar System, UPC Code 658848614837
• Includes one BDS021626, 99-06 K1500 Main Box Kit, UPC Code 658848614851
• Includes one BDS121614, Front Skid Plate, UPC Code 658848619115
• Includes two FOX98224602, Fox 2.0 Shock 21.73 x 14.63 x 2-S50/Clev
• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

The BDS SUSPENSION BDS180FS 6-inch Lift Kit for the 1999-2006 Chevy Silverado and GMC Sierra 1500 4WD is engineered to elevate your driving experience by improving stance, performance, and off-road capability. This comprehensive lift kit is designed to provide optimal ground clearance and accommodates tires up to 35 inches, making your truck ready for any adventure.

Featuring a unique No Torsion Bar Drop System, this lift kit simplifies installation by mounting torsion bars directly to the lower a-arm’s top, negating the need for dropping the torsion bar cross-member. Crafted with high-clearance design principles, BDS ensures exceptional ground clearance and robust strength while maintaining the suspension and steering geometry for excellent on-road handling.

Included in this kit are heavy-duty components, such as 1/4-inch thick steel crossmembers, multipiece differential relocation brackets, and a reinforced skid plate system for superior off-road protection. The correction of steering geometry is achieved through high-strength, CNC machined ductile iron steering knuckles, working harmoniously with factory tie rod ends for seamless ESC compatibility.

In the rear, you can choose between replacement lift blocks or full Glide-Ride leaf springs, both designed to uphold ride quality and load capacity. The kit also includes new u-bolts, brake line brackets, and options for premium shocks—NX2 Nitro or FOX 2.0 Performance Series—tailored to enhance performance and comfort.

With a commitment to durability and performance, this lift kit maximizes ground clearance, improves off-road handling, and expands your truck’s potential, making it an invaluable upgrade for any enthusiast seeking to conquer both terrain and style.
