BDS SUSPENSION BDS1801FSR 6 INCH LIFT KIT SILVERADO/SIERRA 1500 19-24 4WD GAS FOX 2.0 PERFORMANCE

BDS steps up the performance and capability of the Chevy Silverado and GMC Sierra 1500 trucks with 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility.

These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features & Benefits

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Recommended Tires & Wheels

• (Trimming may be required)
• 35 x 12.5 with 17 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 6.25 in. Backspace
• 37 x 12.5 with 20 x 9 and 6.25 in. Backspace

Front Shock Option

FOX 2.0 Performance Series

• Custom-molded spring seat so you can reuse the stock spring and mounting hardware
• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design

Rear Shock Option

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

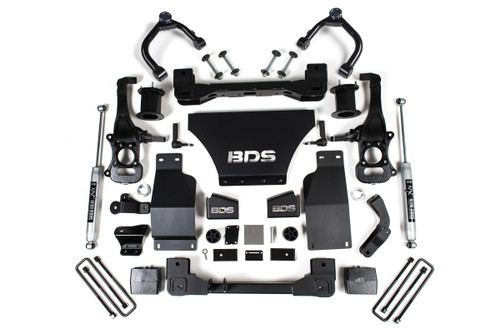

Kit Components:

• Includes one BDS011518, 2019-2024 Chevy/GMC 1500 5 inch Rear Box Kit, UPC Code 658848611935
• Includes one BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible), UPC Code 658848615056
• Includes one BDS021665, 2019-2024 Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4 inch and 6 inch Compatible, UPC Code 658848615063
• Includes one BDS021682, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 1of2, UPC Code 658848615131
• Includes one BDS021683, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 2of2, UPC Code 658848615148
• Includes two FOX98224827, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
• Includes two FOX98662000, Kit: BDS, 2019-2024 Chevy 1500, Front C/O, Snap Ring, PS, 2.0, Internal Floating Piston, 5.8 inch, 4.5 & 6.5 inch Lift, UPC Code 814897013483

The BDS SUSPENSION BDS1801FSR 6 INCH LIFT KIT is expertly engineered to elevate the performance and aesthetics of your 2019-2024 Chevy Silverado or GMC Sierra 1500 4WD Gas truck. Tailored for those who crave both style and functionality, this comprehensive lift kit grants your vehicle an impressive 6-inch lift, allowing for the installation of up to 35-inch tires to enhance ground clearance and off-road capability.

Designed with BDS’s renowned high-clearance geometry, this kit optimizes both strength and protection while maintaining excellent on-road handling characteristics. Key components include durable top-mounted strut spacers and high-arched, 1/4-inch thick steel crossmembers. Complementing these are robust, multipoint differential relocation brackets and heavy-duty skid plates, ensuring superior off-road resilience.

Steering geometry is meticulously corrected, featuring CNC-machined ductile iron steering knuckles and upgraded tie rod ends, which assure compatibility with your vehicle's Electronic Stability Control (ESC) system. Front suspension components also encompass sway bar drops, bump stop extensions, and brake line brackets, forming a comprehensive lift solution engineered for adventure.

In the rear, a heavy-duty lift block is provided to maintain the vehicle’s ride quality and load capacity, accompanied by new u-bolts and precision-tuned NX2 Nitro or FOX 2.0 Performance Series shocks, further elevating the driving experience.

BDS ensures maximum ground clearance and off-road protection while maintaining factory-like ride comfort. Backed by a Factory Protection Plus drivetrain warranty, this lift kit exemplifies durability and reliability. Conquer new terrains with confidence and transform your truck into a powerful off-road machine with the BDS SUSPENSION BDS1801FSR 6 INCH LIFT KIT, where performance meets rugged style.
