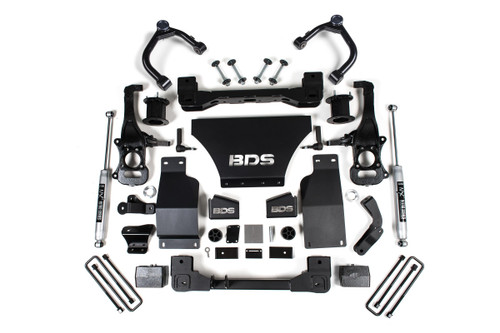

BDS SUSPENSION BDS1800FSR 4 INCH LIFT KIT SILVERADO/SIERRA 1500 19-24 4WD GAS FOX 2.0 PERFORMANCE

BDS steps up the performance and capability of the Chevy Silverado and GMC Sierra 1500 trucks with 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

1. Requires frame bracket modification
2. Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod end interference, stock 20 inch wheels can be reinstalled.
3. 17 inch wheels with 4.5 inch backspacing should be test fit prior to mounting the Tire to ensure proper clearance to the steering knuckle / tie rod.
4. All aftermarket wheels should be test fit prior to mounting the Tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
5. 2.7L Turbo models use Diesel kit for proper skid plate fitment. If equipped with a mono-leaf rear spring please use part #UBT4064 (Qty 4 required). High clearance crossmember design maximizes ground clearance
6. Robust steering knuckles maintain ESC system compliance
7. High-strength replacement upper control arms provide durability and serviceability
8. HD skid plate system improved offroad protection
9. Multipoint differential relocation brackets to secure the front axle and improve CV angles
10. Factory Protection Plus drivetrain warranty included

FOX 2.0 Performance Series

• Custom-molded spring seat so you can reuse the stock spring and mounting hardware
• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal Internal Floating Piston mono-tube reservoir design

Tire Size: 33 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 20 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 6.25/6.25

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Kit Components:

• Includes one BDS011316, 2019-2024 Chevy/GMC 1500 4 inch Rear Box Kit, UPC Code 658848611737
• Includes one BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible), UPC Code 658848615056
• Includes one BDS021665, 2019-2024 Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4 inch and 6 inch Compatible, UPC Code 658848615063
• Includes one BDS021682, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 1of2, UPC Code 658848615131
• Includes one BDS021683, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 2of2, UPC Code 658848615148
• Includes two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1, UPC Code 692878899062
• Includes two FOX98662000, Kit: BDS, 2019-2024 Chevy 1500, Front C/O, Snap Ring, PS, 2.0, Internal Floating Piston, 5.8 inch, 4.5 & 6.5 inch Lift, UPC Code 814897013483

Elevate the performance and capability of your Chevy Silverado or GMC Sierra 1500 with the BDS1800FSR 4-Inch Lift Kit. Crafted for the 2019-2024 4WD Gas models, this advanced suspension system not only enhances your vehicle's stance but also allows for the accommodation of up to 33-inch tires, perfect for those ready to tackle off-road adventures.

Designed with BDS's renowned high-clearance technology, this lift kit dramatically improves ground clearance while maintaining superior strength and offroad protection. The front section features robust top-mounted strut spacers and high-arched 1/4-inch thick steel crossmembers. A vital component of this system, the multipiece differential relocation brackets and rugged skid plates ensure that your truck is well-equipped for any terrain.

Efficient forward handling is ensured with CNC-machined ductile iron steering knuckles and replacement tie rod ends that keep steering geometry intact, ensuring compatibility with the Electronic Stability Control system. The careful combination of sway bar drops, bump stop extensions, and brake line brackets establishes a comprehensive front suspension lift ready for anything that comes your way.

In the rear, a heavy-duty lift block enhances and levels your vehicle's stance while preserving ride quality and load capabilities. The inclusion of new U-bolts and precision-tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks enhances overall driving performance.

Crafted for durability and designed with a high-clearance crossmember system, this lift kit guarantees maximum ground clearance and a robust skid plate system for improved offroad readiness. With its heavy-duty features and application-specific valving, the BDS1800FSR Lift Kit stands as the ultimate choice for Silverado and Sierra enthusiasts seeking to redefine their driving experience.
