BDS SUSPENSION
BDS SUSPENSION BDS1793H 4 INCH LIFT KIT W/ RADIUS ARM RAM 3500 W/ REAR AIR RIDE 13-18 4WD GAS NX2 NITRO SHOCKS
- SKU:
- BDS1793H
- MPN:
- BDS1793H
- Shipping:
- Calculated at Checkout
Description
Upgrade the ride and style of your 2013-2018 RAM 3500 gas powered truck equipped with factory rear air ride by installing this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

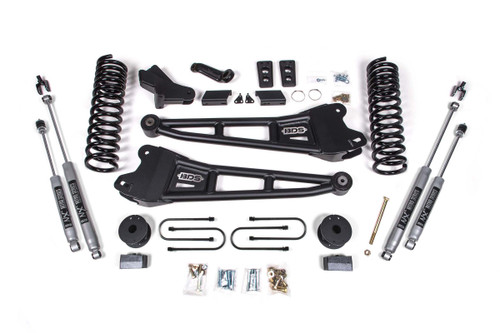

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy duty radius arms, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacer, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
NX2 Nitro Shocks
- Front Lift Method: Coil Spring
- Rear Lift Method: Blocks
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 3 inch
- 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well. The vehicle can be driven without the front driveshaft to an exhaust shop for modifications to be made before reinstalling the driveshaft.
- The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.
- Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
- Heavy duty tubular radius arms improve strength, handling and caster control
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 4.5
Kit Components:
- Includes one BDS012318, Ram 3500 Auto Level Air Suspension 3 inch Rear, UPC Code 711745611467
- Includes one BDS012432, 2014-2018 Ram 2500 4wd 4 inch Radius Arm Front Box Kit, UPC Code 711745611702
- Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
- Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
- Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
- Includes two BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1, UPC Code 711745609679
The heart of this lift kit is its advanced Pro-Ride coil springs, specifically designed for gas models to ensure an optimal balance of height and comfort across all terrains. The heavy-duty tubular radius arms replace the factory components, delivering superior strength, refined handling, and enhanced caster control, ensuring a smoother and quieter ride. Accompanying these features is a forged drop pitman arm that corrects steering angles while minimizing the steering angle, paired with a heavy-duty track bar drop bracket to maintain alignment throughout suspension travel.
In the rear, a high-strength fabricated lift block, robust airbag spacer, and longer u-bolts are included, along with a matching set of BDS NX2 Nitro or FOX 2.0 Performance shocks for unprecedented ride quality and responsiveness. These advanced shocks utilize internal floating piston technology to improve off-road capability and overall stability.
Each component of the BDS1793H lift kit has been meticulously crafted to guarantee optimal performance and durability, making this upgrade a must-have for any serious RAM 3500 owner. Whether navigating city streets or conquering rugged trails, this lift kit will redefine your driving experience while enhancing the visual appeal of your truck. Embrace enhanced performance, increased clearance, and a commanding presence on any terrain with the BDS Suspension lift kit.
