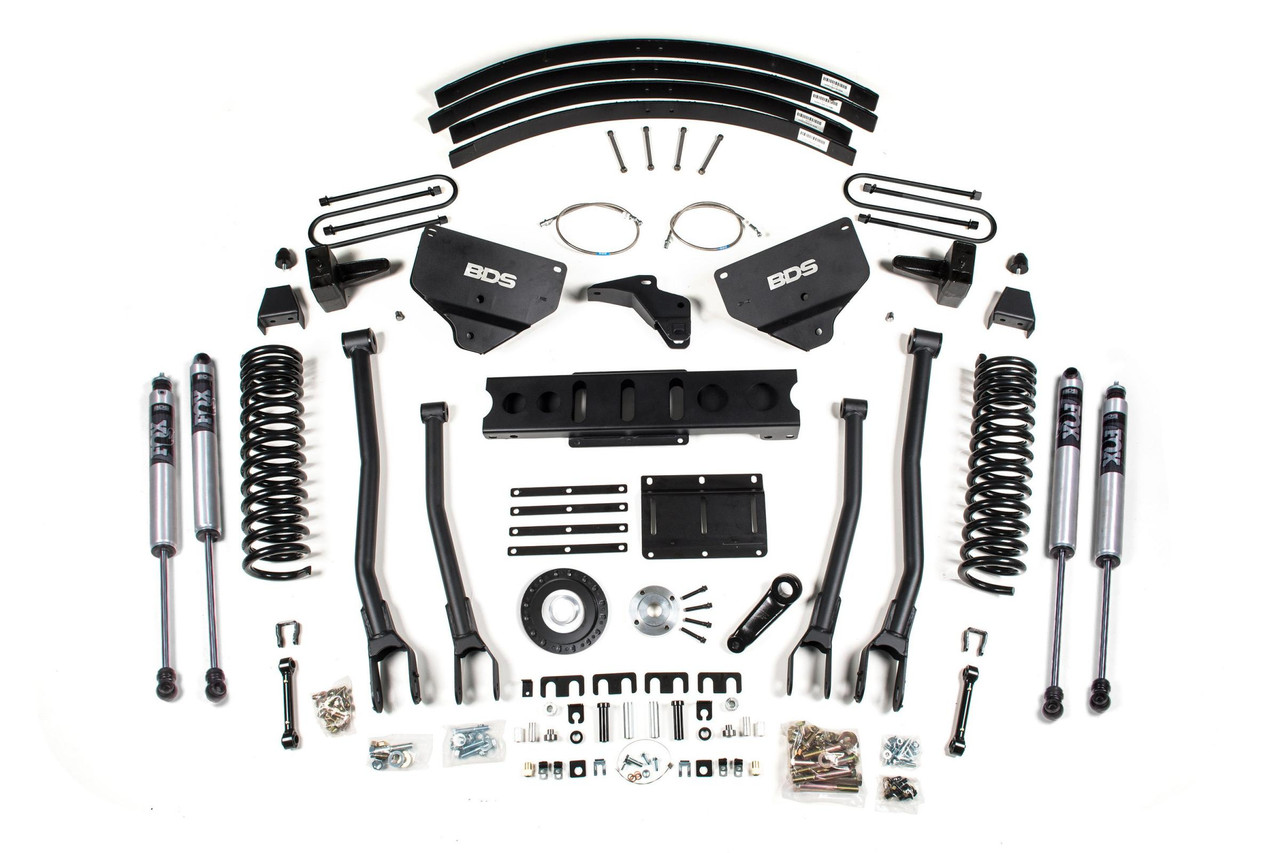

BDS SUSPENSION BDS1791FS 8 INCH LIFT KIT W/ 4-LINK RAM 3500 13-18 4WD DIESEL 5 INCH BLOCK ADD A LEAF 8 BOLT INDEXING RING FOX 2.0 PERFORMANCE SHOCKS

Go big with the BDS Suspension engineered 8-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stops, stainless steel brakelines and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a block and add-a-leaf combo or optional full replacement BDS Glideride leaf springs. Also included are new u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 5 inch

1. Carrier bearing drop kit will be required for 2-piece rear drive shaft
2. Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option 5 Inch Block Kit and Add-A-Leaf

• 5 inch rear block in conjunction with a dual add-a-leaf net a level stance
• Blocks made of cast iron for high strength.
• Designed to provide correct pinion angles.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

8 Bolt Indexing Ring

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
• The 8-bolt kit also
• Includes an internal shaft seal extension and new shaft seal.

Kit Components:

• Includes one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2), UPC Code 658848612345
• Includes one BDS012514, 2013-15 Ram 3500 5in Block Kit, UPC Code 658848612581
• Includes one BDS012810, 2013-18 Ram 3500 8in Front Box Kit, UPC Code 658848612895
• Includes one BDS032802, 2013-2024 Ram 3500 8 inch Front Coil-Diesel (Single Coil Only), UPC Code 658848616459
• Includes two BDS113228, 2013-2024 Ram 3500 Dual Add-A-Leaf, UPC Code 658848618743
• Includes one BDS122813, 13 3500/14 2500 Ram T-Case Index- 8 Bolt, UPC Code 658848619849
• Includes two FOX98224754, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Elevate your driving experience with the BDS Suspension BDS1791FS 8 Inch Lift Kit, specially engineered for 2013-2018 RAM 3500 diesel trucks. This meticulously crafted lift kit is designed to enhance your vehicle's performance, stance, and capability, allowing for up to 40-inch tires.

The front-end features diesel-specific Pro-Ride coil springs that deliver a smooth and predictable ride, complemented by robust 4-Link control arms for superior stability and handling. Your steering geometry will be optimized with a forged drop pitman arm and track bar bracket, ensuring precise maneuverability while maintaining traction across varied terrains. Additionally, the kit includes sway bar links and bump stops for added safety and control.

To accommodate the lift, an indexing ring and new transmission crossmember are included, enabling seamless integration with the factory front driveshaft. The rear lift combines a 5-inch block with an add-a-leaf configuration, ensuring a balanced stance without compromising performance. Heavy-duty u-bolts and brake line brackets are also provided, along with the option of full replacement BDS GlideRide leaf springs for those seeking enhanced rear-end support.

The BDS included FOX 2.0 performance shocks enhance off-road performance with their advanced design, featuring a 2-inch impact-extruded aluminum body and application-specific valving for maximum durability and resilience.

This comprehensive lift kit not only improves your truck's height but transforms its capabilities, making it perfect for both on-road and off-road adventures. With precision engineering at its core, the BDS1791FS Lift Kit is the ultimate upgrade for your RAM 3500, ensuring a commanding presence and unrivaled performance on any terrain.
