BDS SUSPENSION BDS1790H 8 INCH LIFT KIT W/ 4-LINK RAM 3500 13-18 4WD DIESEL REAR LEAF SPRINGS 8 BOLT INDEXING RING NX2 NITRO SHOCKS

Go big with the BDS Suspension engineered 8-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, sway bar links, bump stops, stainless steel brakelines and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a block and add-a-leaf combo or optional full replacement BDS Glideride leaf springs. Also included are new u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Leaf Spring
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 5 inch

1. Carrier bearing drop kit will be required for 2-piece rear drive shaft
2. Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Leaf Springs

• Level stance front to rear.
• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

8 Bolt Indexing Ring

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
• The 8-bolt kit also
• Includes an internal shaft seal extension and new shaft seal.

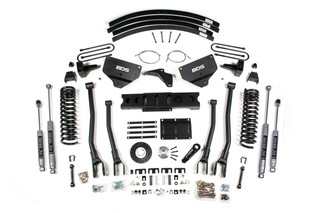

Kit Components:

• Includes two BDS002609, Ram Rear Leaf Spring, UPC Code 658848611300
• Includes one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2), UPC Code 658848612345
• Includes one BDS012609, 2013-14 Ram 3500 Rear Box Kit, UPC Code 658848612710
• Includes one BDS012810, 2013-18 Ram 3500 8in Front Box Kit, UPC Code 658848612895
• Includes two BDS032802, 2013-2024 Ram 3500 8 inch Front Coil-Diesel (Single Coil Only), UPC Code 658848616459
• Includes one BDS122813, 13 3500/14 2500 Ram T-Case Index- 8 Bolt, UPC Code 658848619849
• Includes two BDS85754, Shock - 29.43 x 17.24 x 2-3/8 - S50/EB2, UPC Code 711745609631
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

Elevate your driving experience with the BDS Suspension BDS1790H 8-Inch Lift Kit tailored specifically for the 2013-2018 RAM 3500 4WD diesel trucks. Engineered to enhance performance, stability, and road presence, this comprehensive lift kit allows for the installation of up to 40-inch tires, ensuring a commanding stance on and off the road.

The kit features diesel-specific Pro-Ride coil springs that offer progressive rates, delivering a smooth and comfortable ride across various terrains. Additionally, the 4-Link conversion optimizes suspension geometry, improving handling and strength with high-strength 1/4-inch steel brackets that enhance axle positioning and minimize caster change. Complementing these are forged components such as the drop pitman arm and track bar bracket designed to maintain steering precision and axle alignment.

Incorporating exquisite attention to detail, this lift kit includes essential hardware for proper installation, featuring stainless steel brake lines, bump stops, and sway bar links, all tuned for exceptional performance. The premium NX2 Nitro or FOX 2.0 shocks, with their twin-tube design and 10-stage velocity-sensitive valving, provide impeccable control and remove the harshness often associated with off-road driving.

For efficient power transfer, the kit includes an HD transmission crossmember and an 8-bolt indexing ring that ensures compatibility with the factory driveshaft. The rear setup can be tailored with either a block and add-a-leaf combination or optional BDS Glideride leaf springs for optimal load management and reduced axle wrap.

The BDS1790H Lift Kit isn’t just about lifting; it’s designed to transform your RAM 3500 into a powerhouse, capable of conquering any challenge with confidence and style. Whether on the highway or the trail, you’ll enjoy unparalleled performance and control.
