BDS SUSPENSION BDS178FS 6 INCH LIFT KIT CHEVY/GMC AVALANCHE SURBURBAN TAHOE OR YUKON 1500 07-14 4WD FOX 2.0 PERFORMANCE SHOCKS

Take your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.

Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers new Pro-Ride coil springs for on-road ride quality as well as serious off road performance, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle. Also for the rear are precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

High Clearance Crossmembers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.

• Front Lift Method: Cross-Member
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

1. Will not work with auto-ride equipped vehicles.
2. Strut compressor required for installation.
3. Minor premature engagement of the StabiliTrak system may occur during certain driving maneuvers.
4. Minor frame bracket modification and welding are required.
5. 20 inch wheels with 5 inch to 5-3/4 inch backspacing are recommended to reduce trimming.
6. Add 121651 Auxillary Differential bracket for AWD models. Also may require front driveline modification.

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Tire Size: 34 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.75

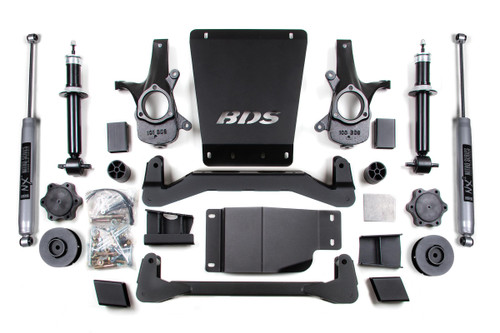

Kit Components:

• Includes one BDS021609, 07 GM Tahoe/Yukon Rear Box Kit, UPC Code 658848614813
• Includes one BDS021640, 07-13 GM 1500/SUV 4-6 Inch Front Box (1of2), UPC Code 658848614929
• Includes one BDS021644, 2007-2013 GM 1500/SUV 4-6 Inch Front Box (2of2), UPC Code 658848614943
• Includes one BDS121613, 07-13 GM Front Skid Plate, UPC Code 658848619108
• Includes one BDS98161, 07-13 GM 1500 6 inch Strut, UPC Code 711745610330
• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

Elevate your driving experience with the BDS Suspension BDS178FS 6-Inch Lift Kit designed specifically for 2007-2014 Chevy Avalanche, Suburban, Tahoe, and GMC Yukon 1500 models equipped with 4WD. This comprehensive lift kit enhances your vehicle's stance, performance, and capability, providing an impressive ground clearance for accommodating up to 35-inch tires.

Utilizing BDS's innovative high-clearance design, the kit is crafted to improve ground clearance while delivering enhanced strength and off-road protection. The front suspension system features full-length replacement strut shocks and high-arched 1/4-inch thick steel crossmembers, ensuring a robust framework that accommodates various driving conditions. The multipoint differential relocation brackets maintain optimal axle alignment, while heavy-duty skid plates shield vulnerable components from rugged terrains.

Steering geometry is optimized at the elevated ride height with CNC-machined ductile iron steering knuckles, maintaining compatibility with your factory tie rod ends. Essential components such as sway bar drops, bump stop extensions, and brake line brackets work together, ensuring an overall seamless installation and refined on-road handling.

In the rear, BDS equips your vehicle with Pro-Ride coil springs designed to enhance both on-road comfort and off-road capability, along with adjustable upper control arms to fine-tune pinion angles for superior performance. The inclusion of FOX 2.0 Performance Series shocks guarantees an unmatched driving experience, featuring state-of-the-art technology for enhanced damping and responsiveness.

Detailed attention to design results in high-clearance crossmembers that maximize ground clearance, heavy-duty steering knuckles for optimum safety, and a complete skid plate system for additional off-road protection. With this lift kit, your Chevy or GMC truck is ready to conquer any terrain with style and confidence, all while ensuring factory-level performance.
