BDS SUSPENSION BDS1788H 6 INCH LIFT KIT RAM 3500 13-18 4WD DIESEL 4 INCH BLOCK 8 BOLT NX2 NITRO SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1788H
UPC:
840416413779
MPN:
BDS1788H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1788H 6 INCH LIFT KIT RAM 3500 13-18 4WD DIESEL 4 INCH BLOCK 8 BOLT NX2 NITRO SHOCKS
  • BDS SUSPENSION BDS1788H 6 INCH LIFT KIT RAM 3500 13-18 4WD DIESEL 4 INCH BLOCK 8 BOLT NX2 NITRO SHOCKS
$1,754.70

Description

Improve the ride and style of your 2013-2018 RAM 3500 diesel powered truck with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 inch
  • Rear Lift Height: 5 inch
  1. The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft.
  2. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  3. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  4. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  5. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
  6. Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
  • Heavy duty radius arm drop brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option Block Kit

  • 4 Inch Block: Tail low to level stance
  • Made of cast iron for high strength.
  • Designed to provide correct pinion angles.

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

8 Bolt Indexing Ring

  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
  • The 8-bolt kit also
  • Includes an internal shaft seal extension and new shaft seal.

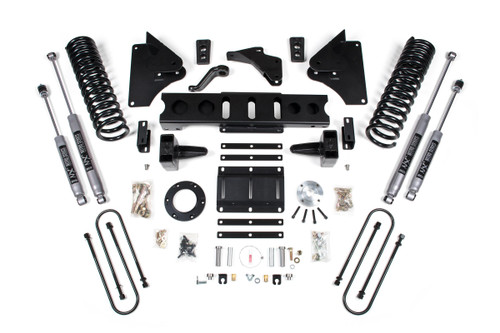

Kit Components:

  • Includes one BDS012405, 03-up Dodge 3/4ton 4 Inch Rear, UPC Code 658848612352
  • Includes one BDS012610, 2013 Ram 3500 6 inch Front Box Kit, UPC Code 658848612727
  • Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel, UPC Code 658848616428
  • Includes one BDS122813, 13 3500/14 2500 Ram T-Case Index- 8 Bolt, UPC Code 658848619849
  • Includes one BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
  • Includes one BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

Elevate your 2013-2018 RAM 3500 diesel truck's performance and aesthetic appeal with the exceptional BDS Suspension BDS1788H 6 Inch Lift Kit. Crafted meticulously for 4WD models, this comprehensive lift kit enhances your truck’s stance, enabling accommodation for impressive 37-inch tires and transforming your driving experience both on and off the road.

At the forefront of this package are diesel-specific Pro-Ride coil springs, engineered to deliver optimal lift and a smooth ride across various terrains. The inclusion of rugged radius arm drop brackets, a forged drop pitman arm, and a meticulous track bar bracket ensures that steering geometry remains precise post-installation. These features help control steering angles while maintaining the integrity of your vehicle’s suspension and axle positioning.

In the rear, a high-strength fabricated lift block, along with extended u-bolts, works in tandem with either BDS NX2 Nitro or FOX 2.0 Performance shocks to guarantee stability and exceptional performance. This thoughtful design not only levels the stance but also supports correct pinion angles for improved drive quality.

The kit further includes essential components like heavy-duty sway bar links for enhanced handling and a robust transmission crossmember to ensure your factory driveshafts remain in perfect alignment. Each shock is nitrogen-charged and features advanced velocity-sensitive valving for a customizable ride tailored to your driving style.

Built for durable longevity, every aspect of the BDS1788H lift kit is designed with quality and performance in mind. From serious off-road adventures to daily driving, this lift kit transforms your RAM 3500 into an unstoppable force, merging practicality with robust style. Upgrade your truck today and conquer any terrain with confidence.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
