BDS SUSPENSION BDS1787H 6 INCH LIFT KIT RAM 3500 13-18 4WD DIESEL 5 INCH BLOCK 8 BOLT NX2 NITRO SHOCKS

Improve the ride and style of your 2013-2018 RAM 3500 diesel powered truck with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

1. The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft.
2. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
3. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
4. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
5. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
6. Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option Block Kit

• 5 Inch Block: Level to tail high appearance
• Made of cast iron for high strength.
• Designed to provide correct pinion angles.

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/4.5

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

8 Bolt Indexing Ring

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
• The 8-bolt kit also
• Includes an internal shaft seal extension and new shaft seal.

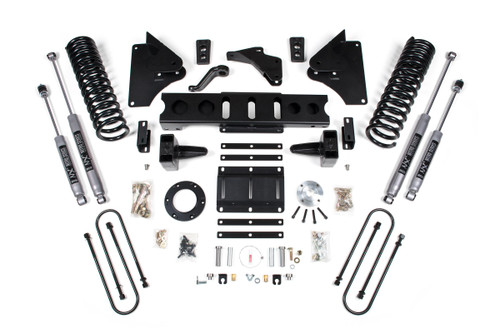

Kit Components:

• Includes one BDS012516, Dodge 5 inch Rear Block Kit w/4 inch, UPC Code 658848612598
• Includes one BDS012610, 2013 Ram 3500 6 inch Front Box Kit, UPC Code 658848612727
• Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel, UPC Code 658848616428
• Includes one BDS122813, 13 3500/14 2500 Ram T-Case Index- 8 Bolt, UPC Code 658848619849
• Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

Elevate your driving experience with the BDS SUSPENSION BDS1787H 6-inch Lift Kit, meticulously engineered for the 2013-2018 RAM 3500 4WD Diesel trucks. This comprehensive lift kit is designed to enhance your truck’s performance, stance, and overall capability, allowing for the installation of tires up to 37 inches for an imposing look on or off the road.

The front of the kit features diesel-specific Pro-Ride coil springs that deliver a smooth and responsive ride, optimized for varied terrains. With the inclusion of heavy-duty drop pitman arms and track bar brackets, this kit ensures precise steering correction and improved steering dynamics.

The rear section of the lift kit employs a robust fabricated lift block accompanied by longer u-bolts, complemented by a choice of NX2 Nitro or FOX 2.0 shocks. These high-performance shocks ensure enhanced off-road capabilities, providing stability and comfort whether you're navigating rocky paths or cruising down smooth highways.

Every detail has been considered, such as the heavy-duty radius arm drop brackets that maintain accurate suspension geometry, and sway bar corrections for confident handling. The kit also complies with transmission requirements, including a transmission crossmember and t-case indexing ring that maintain factory driveline angles, ensuring a seamless installation process.

Built with high-strength materials and precision engineering, the BDS1787H lift kit transforms your RAM 3500 into an unstoppable force. From everyday driving to challenging off-road adventures, this lift kit provides both style and function, enhancing not just the aesthetics of your vehicle but also its performance. Experience the thrill of elevated driving and conquer any terrain with confidence.
