BDS SUSPENSION

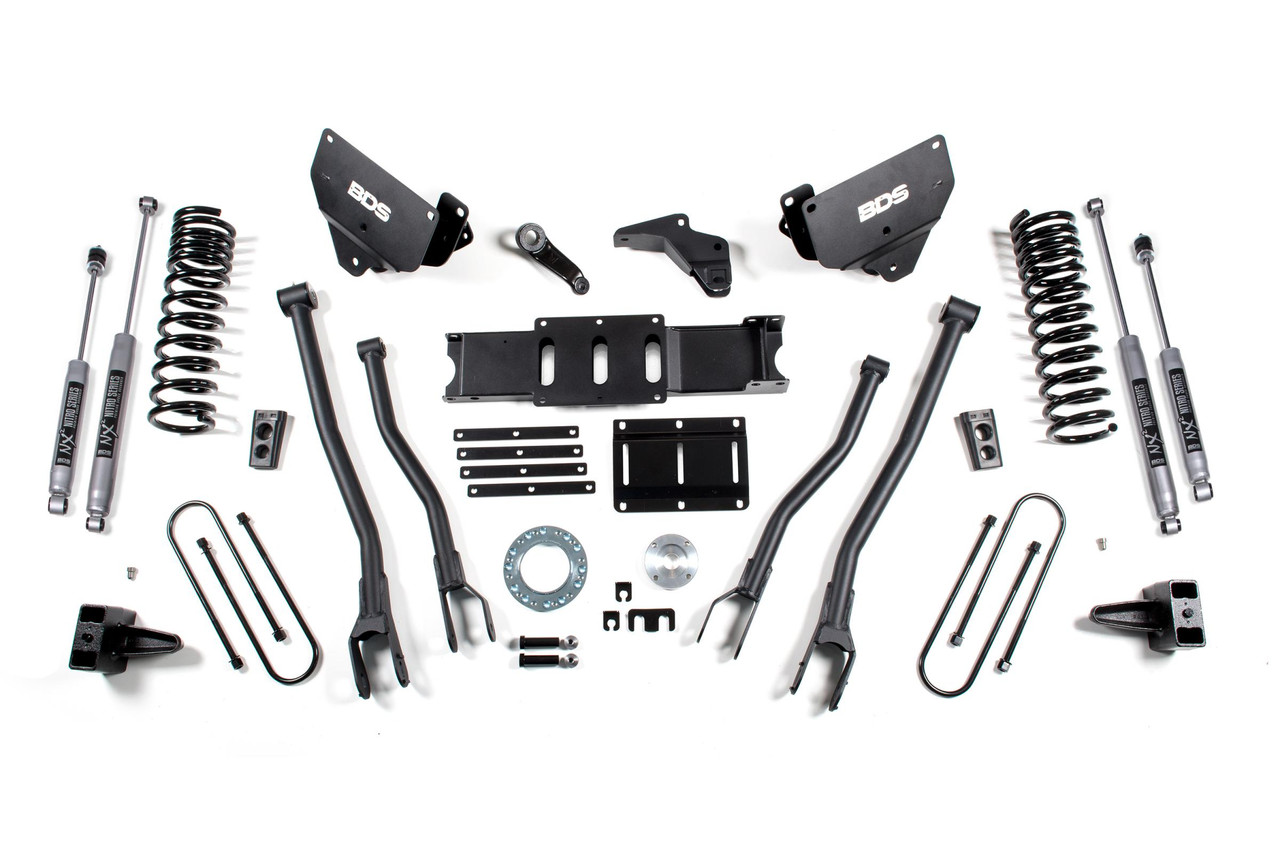

BDS SUSPENSION BDS1784FPE 6 INCH LIFT KIT W/ 4-LINK RAM 3500 13-18 4WD DIESEL LEAF SPRINGS 8 BOLT FOX 2.5 PERFORMANCE ELITE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1784FPE
MPN:
BDS1784FPE
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1784FPE 6 INCH LIFT KIT W/ 4-LINK RAM 3500 13-18 4WD DIESEL LEAF SPRINGS 8 BOLT FOX 2.5 PERFORMANCE ELITE SHOCKS
  • BDS SUSPENSION BDS1784FPE 6 INCH LIFT KIT W/ 4-LINK RAM 3500 13-18 4WD DIESEL LEAF SPRINGS 8 BOLT FOX 2.5 PERFORMANCE ELITE SHOCKS
$6,656.40

Description

Built to outperform, BDS Suspension engineered a 6-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 inch
  • Rear Lift Height: 4 inch
  1. The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft.
  2. Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement
  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Leaf Springs

  • Level stance front to rear.
  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Tire Size: 37 x 13.5 Wheel Diameter: 17 x 9 Back Spacing: 5.625

FOX 2.5 Performance Elite Series

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use
  • 1-year Manufacturer's Warranty

8 Bolt Indexing Ring

  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).
  • The 8-bolt kit also
  • Includes an internal shaft seal extension and new shaft seal.

Kit Components:

  • Includes two BDS002609, Ram Rear Leaf Spring, UPC Code 658848611300
  • Includes one BDS012403, 2013-2018 Ram 3500 4-Link Box Kit (2of2), UPC Code 658848612345
  • Includes one BDS012604, 2013-2018 Ram 3500 6 inch 4-Link Box Kit (1of2), UPC Code 658848612703
  • Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel, UPC Code 658848616428
  • Includes one BDS122813, 13 3500/14 2500 Ram T-Case Index- 8 Bolt, UPC Code 658848619849
  • Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
  • Includes one FOX88326102, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 inchРЎСљ Lift, Dual Speed Compression Adjust
  • Includes four UBT4067, 9/16 x 4 x 12-1/2 Round U-bolt, UPC Code 711745613003

Enhance your off-road adventure with the BDS Suspension BDS1784FPE 6 Inch Lift Kit, meticulously crafted for the 2013-2018 RAM 3500 4WD diesel truck. This comprehensive upgrade not only elevates your vehicle's stance by a full six inches but also supports an impressive tire size of up to 37 inches, empowering you to conquer any terrain with confidence.

Central to this lift kit is the revolutionary 4-Link conversion, which replaces factory radius arms with robust control arms designed for optimal handling and stability. Made with high-strength 1/4-inch steel brackets, this upgrade ensures precise axle positioning and minimizes caster change during travel. Enhanced by diesel-specific Pro-Ride coil springs, your ride remains smooth and predictable, no matter the conditions.

The precision-engineered forged drop pitman arm, accompanied by a heavy-duty track bar drop bracket, corrects steering angles, maintaining your vehicle’s superior handling characteristics. The rear setup features a durable fabricated lift block and longer U-bolts paired with either NX2 Nitro or FOX 2.0 Performance shocks to optimize ride quality and control.

The BDS1784FPE caters to all driving styles with its user-friendly components, including sway bar correction features and an HD transmission crossmember, facilitating the use of factory driveshafts. Engineered with versatility in mind, the FOX 2.5 Performance Elite Series shocks deliver unparalleled off-road capability, adjustable for load and terrain variability.

Built for durability, ease of service, and backed by a one-year manufacturer's warranty, the BDS Suspension lift kit is the perfect blend of performance and style. Elevate your RAM 3500 today and experience the ultimate in off-road efficiency and capability with this exceptional lift kit.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
