BDS SUSPENSION BDS1772FS 4 INCH LIFT KIT LONG ARM DODGE RAM 2500 POWER WAGON 09-13 4WD GAS 4 INCH AXLE FOX 2.0 PERFORMANCE SHOCK

Built to outperform, BDS Suspension engineered a 4-inch lift kit with long arm conversion for your 2009-2013 Dodge RAM 2500 Power Wagon that maximizes performance on and off road. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

1. These vehicle were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2 inch or 4 inch in diameter.
2. 102009 rear brake line will not fit 2012 or newer models.
3. Depending on the factory transmission mount, some 4 inch kits may require the transfer case indexing kit if a driveline vibration persists. See installation instructions for details.

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Leaf Springs

• Eliminates any need for a lift block.
• Reduces axle wrap and creates a more controlled and stable feel.
• Multi-leaf progressive design for a smooth ride.
• Maintains factory payload weight ratings.

Axle Diameter 4 Inch

The Dodge Ram truck has 2 different rear axle diameters. Please measure your rear axle and select the appropriate rear kit for your vehicle.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

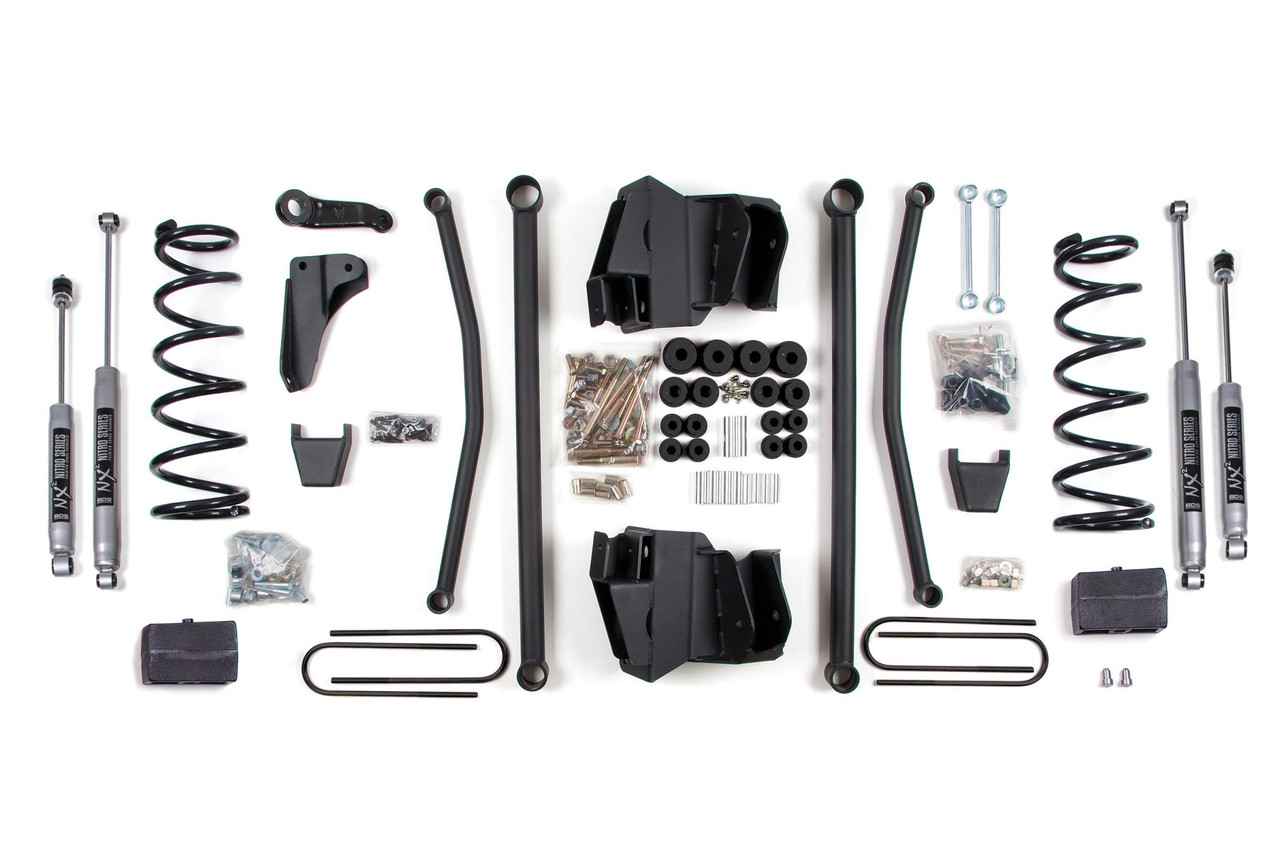

Kit Components:

• Includes two BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring, UPC Code 658848611294
• Includes one BDS012601, 09-10 Ram 6 Inch Long Arm Box Kit, UPC Code 658848612673
• Includes one BDS012801, Dodge Control Arm Mounts, UPC Code 658848612840
• Includes one BDS012802, Dodge Control Arm Box Kit, UPC Code 658848612857
• Includes one BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit, UPC Code 658848616411
• Includes one BDS122401, 05-13 Power Wagon Sway Bar Links, UPC Code 658848619467
• Includes two FOX98224751, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
• Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
• Includes four UBT4064, 9/16 x 3-1/2 x 12-1/2 Round U-bolt, UPC Code 711745613027

Elevate your driving experience with the BDS Suspension BDS1772FS 4-Inch Lift Kit, expertly designed for the 2009-2013 Dodge RAM 2500 Power Wagon. This comprehensive lift kit seamlessly blends performance with functionality, allowing your truck to tackle any terrain while providing a commanding visual presence. Engineered for a 4WD gas configuration, this lift kit is ideal for those seeking enhanced off-road capabilities and aesthetics.

A standout feature is the long arm conversion, which minimizes caster change during wheel travel. This innovative design offers improved steering control both on and off the road. The kit maintains the factory triangulation of the control arms, ensuring superior stability and comfort while driving.

Included are high-strength, gas-specific Pro-Ride coil springs tailored to deliver the perfect lift height while ensuring a smooth ride across diverse landscapes. The kit is equipped with a full set of control arms, a forged drop pitman arm, and a track bar bracket to optimize steering geometry, facilitating precise navigation even in challenging environments.

For added durability, the lift kit incorporates heavy-duty cast steel blocks and longer u-bolts in the rear. The premium FOX 2.0 Performance shocks significantly enhance ride quality and responsiveness, making every journey more enjoyable.

Installation is straightforward but may require measuring rear axle diameters to ensure compatibility. The setup accommodates tires up to 37 inches, offering a bold stance and improved ground clearance.

Enhance your Dodge RAM 2500 Power Wagon with the BDS1772FS Lift Kit, and unlock an exhilarating driving experience that harmonizes performance, control, and style. Whether you’re hitting the trails or cruising the highway, this kit prepares your truck for all adventures ahead.
