BDS SUSPENSION

BDS SUSPENSION BDS1770H 4 INCH LIFT KIT DODGE RAM 2500 POWER WAGON 09-13 4WD GAS LEAF SPRINGS NX2 NITRO

(No reviews yet) Write a Review
SKU:
BDS1770H
MPN:
BDS1770H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1770H 4 INCH LIFT KIT DODGE RAM 2500 POWER WAGON 09-13 4WD GAS LEAF SPRINGS NX2 NITRO
  • BDS SUSPENSION BDS1770H 4 INCH LIFT KIT DODGE RAM 2500 POWER WAGON 09-13 4WD GAS LEAF SPRINGS NX2 NITRO
$2,396.35

Description

Improve the ride and style of your 2009-2013 Dodge RAM 2500 Power Wagon 4WD truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36 inch Tires.

BDS engineered new lower control arms are longer than stock to rotate the axle for proper alignment and built a relocation mounting bracket to flatten out the angle of the upper control arm to maintain your factory handling characteristics.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, all four control arms plus relocation bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 4 inch
  1. These vehicle were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2 inch or 4 inch in diameter.
  2. May require front exhaust modification to clear front driveshaft at full droop.
  • Tubular short arms improve strength, handling and caster control
  • Heavy duty control arm brackets maintain proper suspension geometry
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

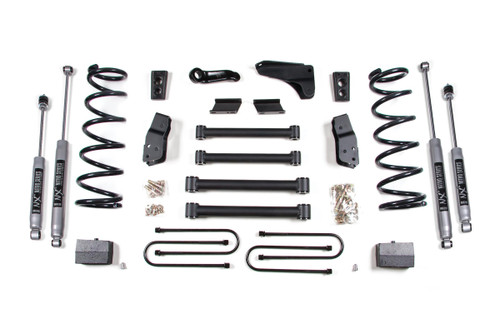

Kit Components:

  • Includes two BDS002508, 03-05 Dodge 3/4 ton 5in Rear Spring, UPC Code 658848611294
  • Includes one BDS012622, 09-10 Dodge Ram 2500 6 Inch Box Kit, UPC Code 658848612819
  • Includes one BDS032601, 03-12 Dodge Ram 2500(gas) 6 Inch Coil Kit, UPC Code 658848616411
  • Includes one BDS122401, 05-13 Power Wagon Sway Bar Links, UPC Code 658848619467
  • Includes two BDS85751, Shock- 30.00 x 17.25 x 2-3/8 - S50/EB2, UPC Code 711745609617
  • Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709
  • Includes four UBT4064, 9/16 x 3-1/2 x 12-1/2 Round U-bolt, UPC Code 711745613027

Transform your 2009-2013 Dodge RAM 2500 Power Wagon 4WD into a head-turning powerhouse with the BDS SUSPENSION BDS1770H 4-inch Lift Kit. This meticulously engineered lift kit enhances both the ride quality and the aesthetics of your truck, providing improved stance, performance, and the capability to accommodate tires up to 36 inches in diameter.

At the core of this lift kit are upgraded components crafted for longevity and performance. The kit features longer lower control arms designed to rotate the axle for optimal alignment, while a specially designed relocation mounting bracket ensures the upper control arm's angle remains flat, preserving the factory handling characteristics you love.

Front suspension upgrades include diesel-specific Pro-Ride coil springs that excel across varied terrains, guaranteeing a smooth, predictable ride. Coupled with the full suite of control arms, a forged drop pitman arm, and track bar bracket, your steering precision remains intact, ensuring your truck handles effortlessly both on and off the road.

In the rear, heavy-duty cast steel blocks and longer u-bolts work harmoniously with a robust set of NX2 Nitro or FOX 2.0 Performance shocks, delivering stability and a controlled feel without excess axle wrap. You can expect an excellent balance between daily driving comfort and off-road readiness.

Each kit component is designed with high-quality materials, such as high-tensile steel coil springs and nitrogen-charged shocks, to offer resilience and optimal performance. The advanced shock design features 10-stage velocity-sensitive valving for enhanced responsiveness and smooth handling.

Upgrade your Dodge RAM with this comprehensive lift kit, and experience the rugged elegance and unrivaled capability your truck was meant to showcase. Step up to a new level of performance, style, and adventure with BDS Suspension.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
