BDS SUSPENSION BDS1763FS 4 INCH LIFT KIT W/ RADIUS ARM RAM 2500 14-18 4WD GAS FOX 2.0 PERFORMANCE SHOCKS
- SKU:
- BDS1763FS
- MPN:
- BDS1763FS
- Shipping:
- Calculated at Checkout
Description
Take your 2014-2018 RAM 2500 gas powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
- Front Lift Method: Coil Spring
- Rear Lift Method: Coil Springs
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 2.5 inch
- 6.4L Gas models will require exhaust modification to clear the front driveshaft and potentially the passenger's 4-link bracket.
- 5.7L Gas models may require modification - but not in all cases.
- The vehicle can be driven without the front driveshaft to an exhaust shop for modification and reinstalled after modification.
- Heavy duty tubular radius arms improve strength, handling and caster control
- High strength progressive rate coil springs for a great ride on any terrain
- Track bar relocation brackets to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5.625

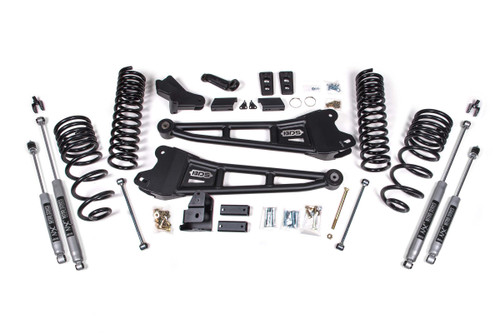

Kit Components:
- Includes one BDS012258, 2014-2018 Ram 2500 2.5 inch Rear Coil Spring Replacement Box Kit, UPC Code 658848612161
- Includes one BDS012432, 2014-2018 Ram 2500 4wd 4 inch Radius Arm Front Box Kit, UPC Code 711745611702
- Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
- Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
- Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
- Includes two FOX98224753, Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1
This suspension upgrade features heavy-duty components, including high-strength tubular radius arms that replace the factory's stamped steel versions, providing improved strength, handling, and caster control. The Pro-Ride coil springs are designed with a progressive rate for a smooth and predictable ride, manufactured from durable high tensile steel to ensure maximum reliability.
Steering stability is seamless with a forged drop pitman arm and a heavy-duty track bar relocation bracket. These elements correct your steering angles, allowing for optimal driving performance even after significant elevation. The kit incorporates NX2 or FOX 2.0 nitrogen-charged shocks, renowned for their superior performance and durability, ensuring an impressive ride over various terrains.
Every detail has been considered; from sways bar corrections to maintain handling performance, to installation-friendly design elements like heavy-duty transmission crossmembers and indexing rings that support the use of factory driveshafts, this lift kit is built to accommodate serious driving enthusiasts.
With the BDS1763FS Lift Kit, transform your RAM 2500 into an off-road powerhouse that offers confident handling, unmatched performance, and an aggressive stance. Experience a new level of driving capabilities, whether you're tackling rugged trails or cruising city streets.
