BDS SUSPENSION

BDS SUSPENSION BDS1739FS 5.5 INCH LIFT KIT W/ 4-LINK RAM 2500 W/ REAR AIR RIDE 19-24 4WD GAS FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1739FS
MPN:
BDS1739FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1739FS 5.5 INCH LIFT KIT W/ 4-LINK RAM 2500 W/ REAR AIR RIDE 19-24 4WD GAS FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1739FS 5.5 INCH LIFT KIT W/ 4-LINK RAM 2500 W/ REAR AIR RIDE 19-24 4WD GAS FOX 2.0 PERFORMANCE SHOCKS
$4,152.21

Description

Take your RAM 2500 with rear air ride gas powered truck to the next level with this 5.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes heavy duty air bag spacers, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Spacer
  • Shocks Included: Yes
  • Front Lift Height: 5.5 inch
  • Rear Lift Height: 5 inch
  1. Exhaust modification is required to clear front driveshaft. Vehicle can be driven w/o front driveshaft to an exhaust shop
  2. Fits OE equiped Air Ride systems only
  • Heavy duty 4-link arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Tire Size: 37 x 13.5 Wheel Diameter: 20 x 9 Back Spacing: 5.625

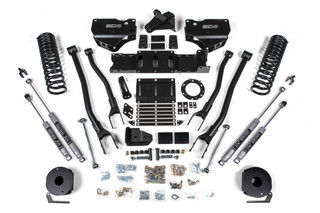

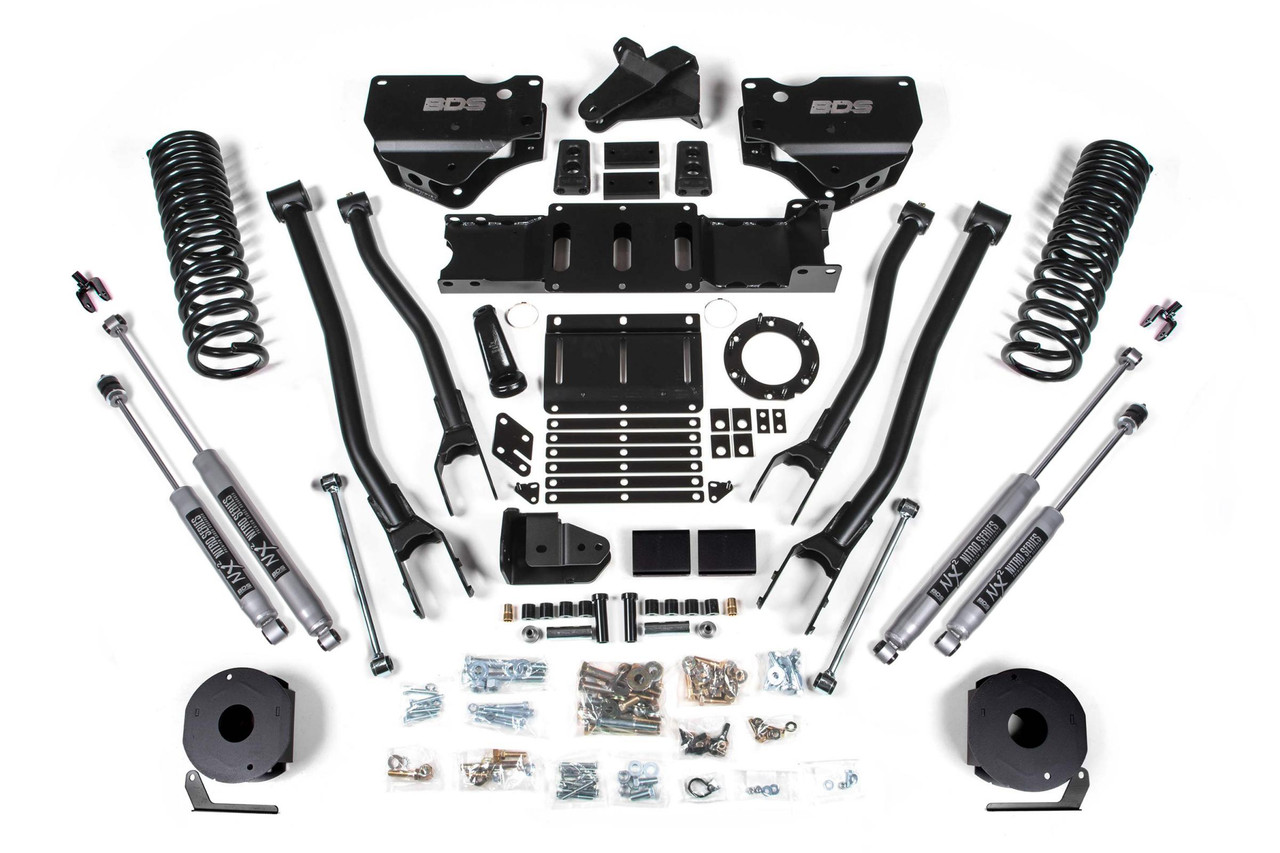

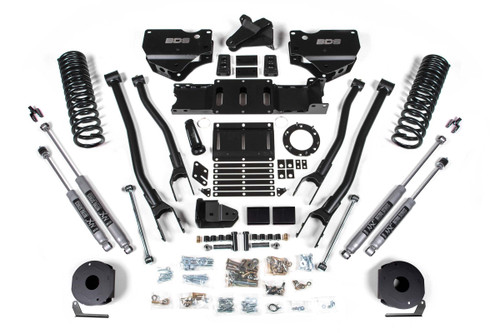

Kit Components:

  • Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
  • Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
  • Includes one BDS012528, 2019-2024 Ram 2500 5 inch Rear Air Ride Box Kit, UPC Code 658848612659
  • Includes two BDS032403, 2019-2024 Ram 2500/3500 Coil 4 inch Diesel - 5.5 inch Gas, UPC Code 711745612792
  • Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
  • Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
  • Includes two FOX98224753, Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1

Elevate your RAM 2500 equipped with rear air ride to remarkable heights with the BDS SUSPENSION BDS1739FS 5.5 Inch Lift Kit. This comprehensive lift kit is engineered to enhance your truck's stance, performance, and overall capability, providing the perfect setup for accommodating up to 37-inch tires.

Designed with precision, the lift kit incorporates gas-specific Pro-Ride coil springs, which are crafted from high tensile steel for durability and enhanced ride quality across various terrains. Heavy-duty replacement radius arms ensure improved strength and control, while the forged drop pitman arm and track bar bracket maintain optimal steering geometry during use.

Installation is straightforward with all necessary components including sway bar relocation, brake line brackets, and NX2 or FOX 2.0 nitrogen-charged shocks that guarantee exceptional off-road performance. The kit features a suggested indexing ring and a new transmission crossmember to adapt the factory front driveshaft, ensuring smooth operation and reliable performance at elevated heights.

The inclusion of heavy-duty air bag spacers and bump stop extensions in the rear section offers further axle positioning correction. This thoughtful design allows for seamless handling and superior ride comfort without sacrificing function or aesthetics.

Built with high standards, the FOX 2.0 Performance Series shocks feature a robust, race-developed monotube design and a clear anodized finish, ensuring longevity and optimal performance.

With the BDS1739FS Lift Kit, your RAM 2500 will not only stand taller but will also conquer diverse landscapes with confidence and poise, making every journey an adventure worth taking. Transform your driving experience today with unparalleled suspension innovation from BDS.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
