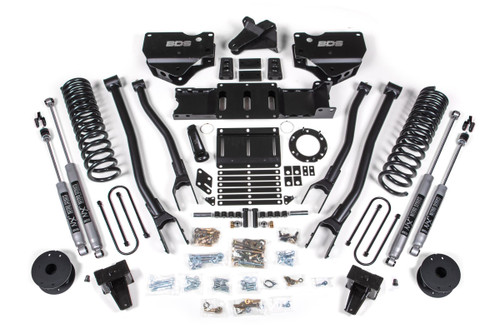

BDS SUSPENSION BDS1734H 5.5 INCH LIFT KIT W/ 4-LINK RAM 3500 W/ REAR AIR RIDE 19-24 4WD GAS NX2 NITRO SHOCKS

Raise your RAM 3500 gas powered truck equipped with factory rear air bags to new heights with this 5.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 5 inch

1. For OE Rear Air Assist only
2. A DEF tank relocation bracket(part 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 37 x 13.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

Kit Components:

• Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
• Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
• Includes one BDS012626, 2019-2024 Ram 3500 Auto Level Air Suspension 6 inch Rear, UPC Code 658848612826
• Includes two BDS032403, 2019-2024 Ram 2500/3500 Coil 4 inch Diesel - 5.5 inch Gas, UPC Code 711745612792
• Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
• Includes two BDS85714, Shock - 26.78 x 15.96 x 2-3/8 - S50/EB2, UPC Code 711745609549
• Includes two BDS85769, Shock- 30.95 x 18.15 x 2-3/8 - EB1/EB1, UPC Code 711745609761

Transform your RAM 3500 gas-powered truck into an off-road powerhouse with the BDS Suspension BDS1734H 5.5-inch lift kit, designed specifically for models equipped with factory rear air bags. This exceptional lift kit is engineered to enhance your vehicle's stance, performance, and overall capability, making it suitable for tires up to an impressive 37 inches.

The BDS1734H kit includes top-of-the-line components that ensure a smooth and robust driving experience. At the forefront, you will find gas-specific Pro-Ride coil springs, which deliver a balanced lift height along with a comfortable ride across various terrains. Heavy-duty tubular radius arms replace the factory stamped steel, offering improved strength and caster adjustment to accommodate a range of lift heights.

Key features of this kit include a forged drop pitman arm to maintain optimal steering geometry, along with a heavy-duty track bar drop bracket that ensures vehicle stability during suspension travel. Brake line brackets and sway bar relocation components are included to preserve your truck's handling performance.

Installation is made easy with the provision of a heavy-duty transmission crossmember and a t-case indexing ring, which allows the utilization of the factory front driveshaft after a lift. The rear features a high-strength fabricated lift block and longer u-bolts to ensure a secure fit.

Complete with NX2 Nitro or FOX 2.0 performance shocks, the BDS1734H lift kit brings a dramatic improvement to ride quality and off-road capabilities. Designed for durability and performance, this lift kit will elevate your RAM 3500 to new heights, perfectly blending form with function. Whether navigating rough trails or cruising on the highway, this lift kit enhances both aesthetics and utility, making it an essential upgrade for any serious truck enthusiast.
