BDS SUSPENSION BDS1727H 8 INCH LIFT KIT W/ 4-LINK RAM 2500 19-24 4WD DIESEL NX2 NITRO SHOCKS

Go big with the BDS Suspension engineered 8-inch lift kit with 4-Link conversion for your 2019-2024 RAM 2500 diesel powered truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied.

In the rear, careful consideration was taken to design the system for load carrying capacity, handling, and ride quality. To do this, BDS engineered new coil bucket seats to mount them outboard the frame rail similar to a leaf spring style truck. The new upper and lower coil seats require only minor drilling for mounting hardware. The new position allows for a much shorter and more stable coil spring design. This virtually eliminates any chance of coil bowing and ensures the coils react predictably throughout the full range of travel.

In addition to the coil springs/mounts, a new track bar relocation system is included to properly set the rear roll-center height and center the axle under the vehicle. The rear track bar relocation

• Includes a new heavy duty adjustable track bar. Finishing out the rear this kit utilizes extended sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

1. Aftermarket driveshaft is required
2. For use on diesel models only
3. Fits rear coil sprung models only (will not fit air-ride models)
4. This kit requires the use of an aftermarket front driveshaft (not provided) in addition to the (provided) indexing ring kit - BDS122624 (6-bolt). Both must be installed, however due to variations between truck configurations we recommend installing the kit prior to taking measurements for the aftermarket front driveshaft to ensure correct length. Vehicle can be driven without front driveshaft. Kit was tested with a Drive Line Plus flange and driveshaft, however other high angle driveshaft options can be used

• Heavy duty 4-link arms improve strength, handling and caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 40 x 13.5 Wheel Diameter: 20 x 9 Back Spacing: 5.5

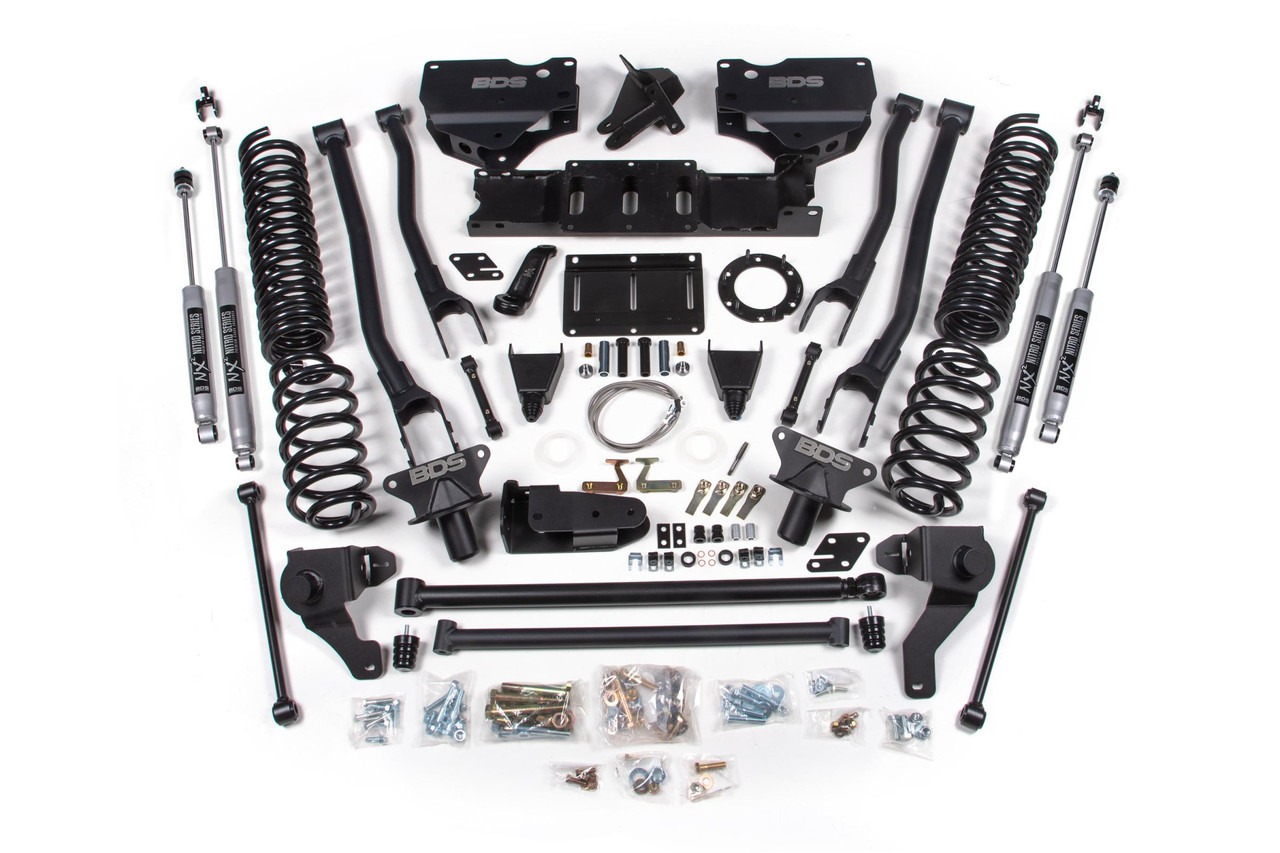

Kit Components:

• Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
• Includes one BDS012627, 2019-2024 Ram 2500 6 inch Rear Box Kit, UPC Code 658848612833
• Includes one BDS012811, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 8 inch 4- Link Front Box Kit 1 of 2, UPC Code 658848612901
• Includes one BDS032619, 2014-2024 Ram 2500 Rear 6 inch Coil Box Kit, UPC Code 658848616435
• Includes two BDS032802, 2013-2024 Ram 3500 8 inch Front Coil-Diesel (Single Coil Only), UPC Code 658848616459
• Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
• Includes two BDS85754, Shock - 29.43 x 17.24 x 2-3/8 - S50/EB2, UPC Code 711745609631
• Includes two BDS85763, Shock- 29.8 x 17.6 x 2-3/8 - Special/EB1, UPC Code 711745609723

Transform your driving experience with the BDS Suspension BDS1727H 8 Inch Lift Kit, meticulously designed for the 2019-2024 RAM 2500 diesel 4WD trucks. This exceptional lift kit enhances your vehicle's stance, performance, and overall capability, allowing you to tackle any terrain with confidence while accommodating monstrous 40-inch tires.

The kit boasts diesel-specific Pro-Ride coil springs, engineered for optimal ride quality and handling. With the inclusion of robust 4-Link control arms, a forged drop pitman arm, and a comprehensive track bar bracket, every element works together for precise steering correction and improved stability. This precision ensures you can navigate both on-road and off-road adventures without compromising safety or control.

Special attention has been given to the rear suspension system, featuring load-carrying capacity and ride comfort. The innovative design ensures minimal coil bowing, with new upper and lower coil seats that require only minor modifications for installation, providing the ideal coil spring position for predictable handling during full range travel. Additionally, the adjustable heavy-duty track bar and extended sway bar links further enhance ride dynamics.

A critical component of this kit is the NX2 Nitro or FOX 2.0 performance shocks, delivering superior off-road handling and a smoother ride. The nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving guarantees outstanding performance on varying terrains.

Installation also includes an HD transmission crossmember and a t-case indexing ring to correct driveline angles, making certain you maintain efficiency and reliability. Elevate your RAM 2500's performance and style with the BDS Suspension BDS1727H lift kit, where superior engineering meets practicality, allowing you to push the limits of your driving experience.
