BDS SUSPENSION

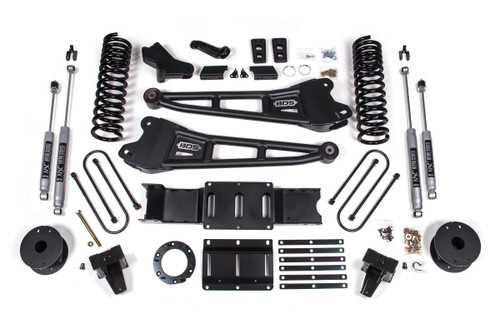

BDS SUSPENSION BDS1726FS 5.5 INCH LIFT KIT W/ RADIUS ARM RAM 3500 W/ REAR AIR RIDE 19-24 4WD GAS FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1726FS
MPN:
BDS1726FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1726FS 5.5 INCH LIFT KIT W/ RADIUS ARM RAM 3500 W/ REAR AIR RIDE 19-24 4WD GAS FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1726FS 5.5 INCH LIFT KIT W/ RADIUS ARM RAM 3500 W/ REAR AIR RIDE 19-24 4WD GAS FOX 2.0 PERFORMANCE SHOCKS
$2,960.00

Description

Raise your gas powered RAM 3500 with factory rear air bags truck to next heights with this 5.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, heavy duty air bag spacer, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 5.5 inch
  • Rear Lift Height: 5 inch
  1. For OE Rear Air Assist only
  2. A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Tire Size: 37 x 13.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

Kit Components:

  • Includes one BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 inch Radius Arm Front Box Kit, UPC Code 658848612758
  • Includes one BDS012626, 2019-2024 Ram 3500 Auto Level Air Suspension 6 inch Rear, UPC Code 658848612826
  • Includes two BDS032403, 2019-2024 Ram 2500/3500 Coil 4 inch Diesel - 5.5 inch Gas, UPC Code 711745612792
  • Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
  • Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
  • Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
  • Includes two FOX98224769, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1

Transform your RAM 3500 into an off-road powerhouse with the BDS Suspension BDS1726FS 5.5-inch Lift Kit with Radius Arms. Engineered for gas-powered models featuring factory rear air bags, this comprehensive lift kit elevates your truck, enhancing its performance and aesthetic appeal while allowing for tire sizes up to 37 inches.

The kit includes gas-specific Pro-Ride coil springs, which deliver a perfect blend of height and ride quality, ensuring a smooth journey over varying terrain. Heavy-duty tubular radius arms significantly enhance strength and handling, providing caster adjustment for optimal control. The inclusion of a forged drop pitman arm and a track bar bracket corrects steering geometry, maintaining precise handling even on rugged paths.

Designed for durability, the lift kit also features an HD transmission crossmember and t-case indexing ring, crucial for ensuring proper driveline angles while utilizing the factory front driveshaft. In the rear, a high-strength steel lift block, along with robust air bag spacers and extended U-bolts, works seamlessly to elevate your truck’s back end, complemented by either NX2 Nitro or FOX 2.0 performance shocks for exceptional off-road dynamics.

The FOX 2.0 shocks are particularly noteworthy, boasting a high-flow piston design and a robust aluminum body that withstands intense off-road conditions. Enhanced with application-specific valving, these shocks maximize ride quality and performance.

This lift kit is a comprehensive solution for those looking to elevate both their vehicle's height and its overall capabilities. From improving stance and clearance to ensuring a smooth ride, the BDS1726FS Lift Kit redefines what your RAM 3500 can achieve off-road. Enjoy the freedom to tackle any terrain with confidence and style.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
