BDS SUSPENSION

BDS SUSPENSION BDS1724H 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 W/ REAR AIR RIDE 19-24 4WD DIESEL 6 BOLT NX2 NITRO SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1724H
MPN:
BDS1724H
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1724H 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 W/ REAR AIR RIDE 19-24 4WD DIESEL 6 BOLT NX2 NITRO SHOCKS
  • BDS SUSPENSION BDS1724H 6 INCH LIFT KIT W/ RADIUS ARM RAM 3500 W/ REAR AIR RIDE 19-24 4WD DIESEL 6 BOLT NX2 NITRO SHOCKS
$2,395.05

Description

Raise your diesel powered RAM 3500 with factory rear air bags truck to next heights with this 6-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 Inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, heavy duty air bag spacer, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 6 Inch
  • Rear Lift Height: 5 Inch
  1. Fits OE equipped air ride systems only
  2. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  3. Mega Cab Inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  4. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  5. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Indexing Ring Option 6 Bolt Indexing Ring

  • Kits come standard with 6-Bolt indexing ring kit.

Tire Size: 37 x 13.5 Tire Size 2: 37 x 13.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

Shock Option NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

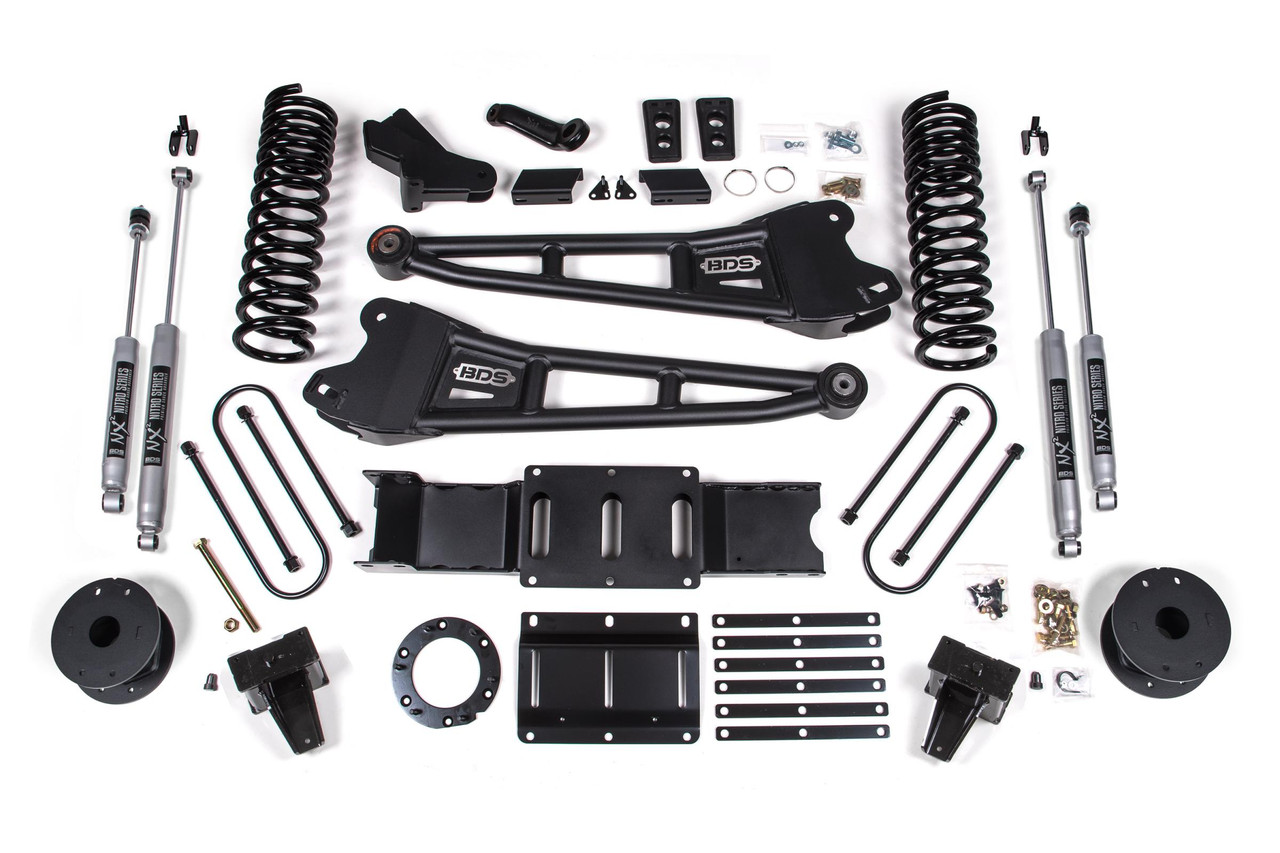

Kit Components:

  • Includes one BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 Inch Radius Arm Front Box Kit, UPC Code 658848612758
  • Includes one BDS012626, 2019-2024 Ram 3500 Auto Level Air Suspension 6 Inch Rear, UPC Code 658848612826
  • Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 Inch Coils - Diesel, UPC Code 658848616428
  • Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
  • Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
  • Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
  • Includes two BDS85769, Shock- 30.95 x 18.15 x 2-3/8 - EB1/EB1, UPC Code 711745609761

Elevate your off-road experience with the BDS SUSPENSION BDS1724H 6 Inch Lift Kit, specifically designed for the 2019-2024 RAM 3500 with factory rear air ride. This advanced kit offers a comprehensive solution for enhancing your truck's performance, stance, and capability, delivering an impressive 6 inches of lift that accommodates tires up to 37 inches in size.

Crafted for diesel applications, this lift kit includes Pro-Ride coil springs that provide a progressive rate for enhanced ride quality on any terrain. The heavy-duty tubular radius arms replace the factory components, improving handling, strength, and caster control. To maintain optimal steering geometry, a forged drop pitman arm and track bar drop bracket are included, ensuring a smooth driving experience even at increased heights.

Rear suspension features a robust steel lift block, along with airbag spacers and upgraded NX2 Nitro or FOX 2.0 performance shocks, designed for unparalleled damping ability and ride comfort. The indexing ring and transmission crossmember are also part of the kit, facilitating the use of the factory front driveshaft and allowing proper driveline angles.

Engineered for precision, the kit includes sway bar relocation, brake line brackets, and a complete set of mounting hardware, ensuring an effortless installation. The nitrogen-charged shocks utilize a twin-tube design with valving tailored to your driving conditions, resulting in improved off-road performance and a seamless ride on the highway.

With its combination of high-quality components and meticulous engineering, the BDS1724H Lift Kit empowers your RAM 3500 to conquer any challenge, making it the ideal choice for enthusiasts seeking to enhance the performance and aesthetics of their truck while retaining comfort and functionality.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
