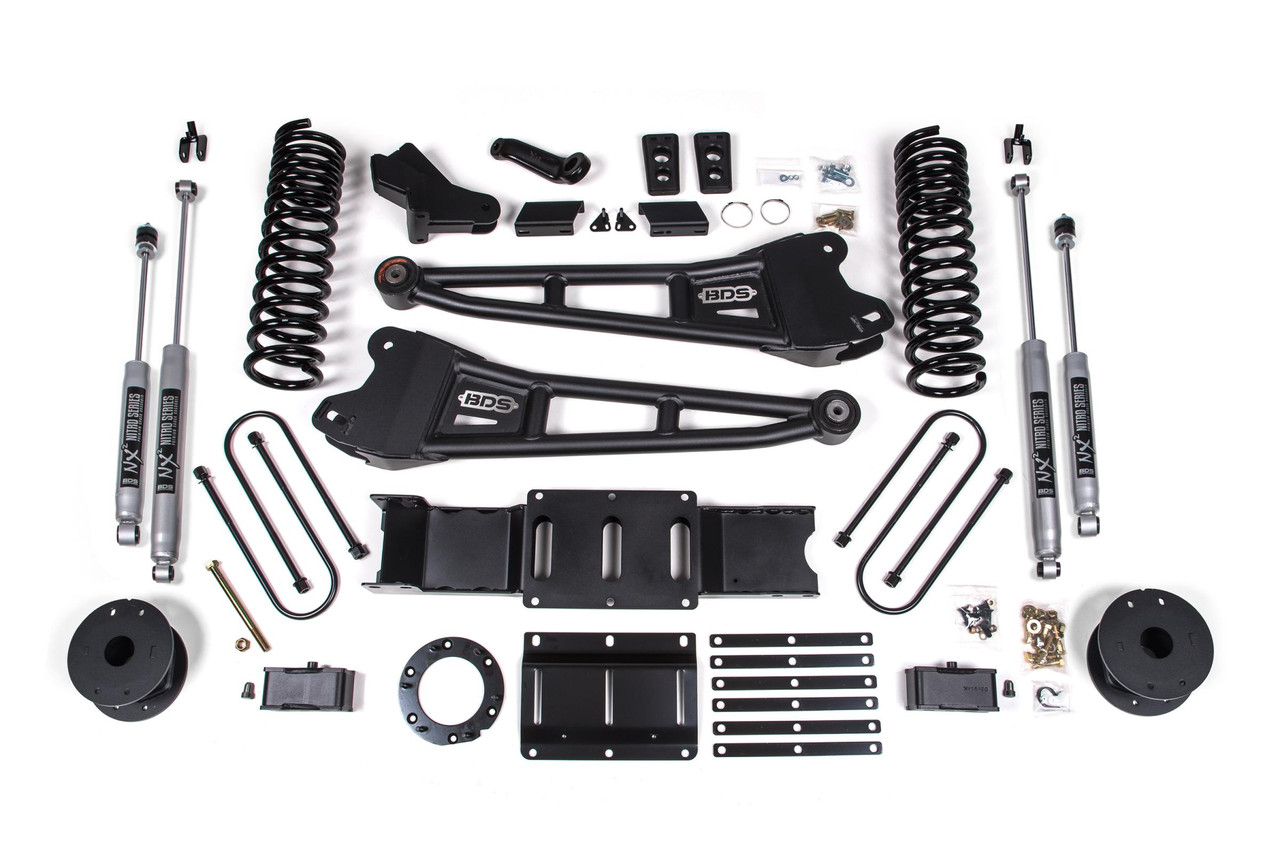

BDS SUSPENSION BDS1722H 4 INCH LIFT KIT W/ RADIUS ARM RAM 3500 W/ REAR AIR RIDE 19-24 4WD GAS NX2 NITRO SHOCKS

Take your factory rear air bag equipped RAM 3500 gas powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

1. Fits OE equipped air ride systems only
2. Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
3. Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension.
4. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Tire Size: 37 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5.625

Kit Components:

• Includes one BDS012319, 2019-2024 Ram 3500 Auto Level Air Suspension 3 inch Rear w/o overload, UPC Code 711745611474
• Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
• Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
• Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
• Includes two BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1, UPC Code 711745609679

Elevate your RAM 3500's performance and stance with the BDS Suspension BDS1722H 4-Inch Lift Kit with Radius Arm. This comprehensive lift kit is specifically crafted for factory rear air bag-equipped 2019 to 2024 gas-powered RAM 3500 trucks, delivering a robust 4-inch lift that allows for fitment of up to 35-inch tires, significantly enhancing your vehicle's capability on and off-road.

The kit features innovative gas-specific Pro-Ride coil springs at the front, designed for optimal ride quality across diverse terrains. Paired with high-strength tubular radius arms, this suspension upgrade improves handling and ensures improved caster control. A forged drop pitman arm and track bar bracket work in tandem to correct steering geometry, maintaining precise and responsive handling whether you are navigating rugged trails or cruising on the highway.

For the rear, a fabricated lift block, coupled with heavy-duty air bag spacers and longer u-bolts, ensures a reliable lift while maintaining smooth performance. The NX2 Nitro or FOX 2.0 Performance shocks included in the kit are nitrogen-charged and designed with 10-stage velocity-sensitive valving, catering to different driving conditions with enhanced ride quality.

Installation is streamlined with provided components such as an HD transmission crossmember and t-case indexing ring, ensuring compatibility with factory drive shafts. Additional details include sway bar relocation, brake line brackets, and the necessary suspension correction parts, all tailored for a straightforward installation process.

The BDS1722H lift kit represents a seamless blend of form and function, tailored for those seeking to enhance the rugged charm and functionality of their RAM 3500 without compromising on ride comfort or performance. Transform your truck into a powerhouse ready to tackle any challenge.
