BDS SUSPENSION BDS1720FS 4 INCH LIFT KIT W/ 4-LINK RAM 3500 W/ REAR AIR RIDE 19-24 4WD DIESEL 6 BOLT FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1720FS
MPN:
BDS1720FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1720FS 4 INCH LIFT KIT W/ 4-LINK RAM 3500 W/ REAR AIR RIDE 19-24 4WD DIESEL 6 BOLT FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1720FS 4 INCH LIFT KIT W/ 4-LINK RAM 3500 W/ REAR AIR RIDE 19-24 4WD DIESEL 6 BOLT FOX 2.0 PERFORMANCE SHOCKS
$2,998.93

Description

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 3 inch
    1. Fits OE equipped air ride systems only
    2. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
    3. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
    4. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
    5. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
    • Heavy duty 4-link improve strength, handling and caster control
    • Front high strength progressive rate coil springs for a great ride on any terrain
    • Front track bar relocation bracket to re-position axle
    • Forged drop pitman arm to correct steering angles
    • Front sway bar correction to maintain handling performance
    • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
    • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

    FOX 2.0 Performance Series

    • 2-inch Impact extruded aluminum body
    • Internal floating piston (Internal Floating Piston) monotube design
    • CNC machined 6061-T6 aluminum mounting ends
    • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
    • Race-developed high-flow piston design
    • Application-specific valving to maximize performance
    • Long-lasting clear anodized finish

    Tire Size: 37 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5.625

    Indexing Ring Option 6 Bolt Indexing Ring

    • Kits come standard with 6-Bolt indexing ring kit.

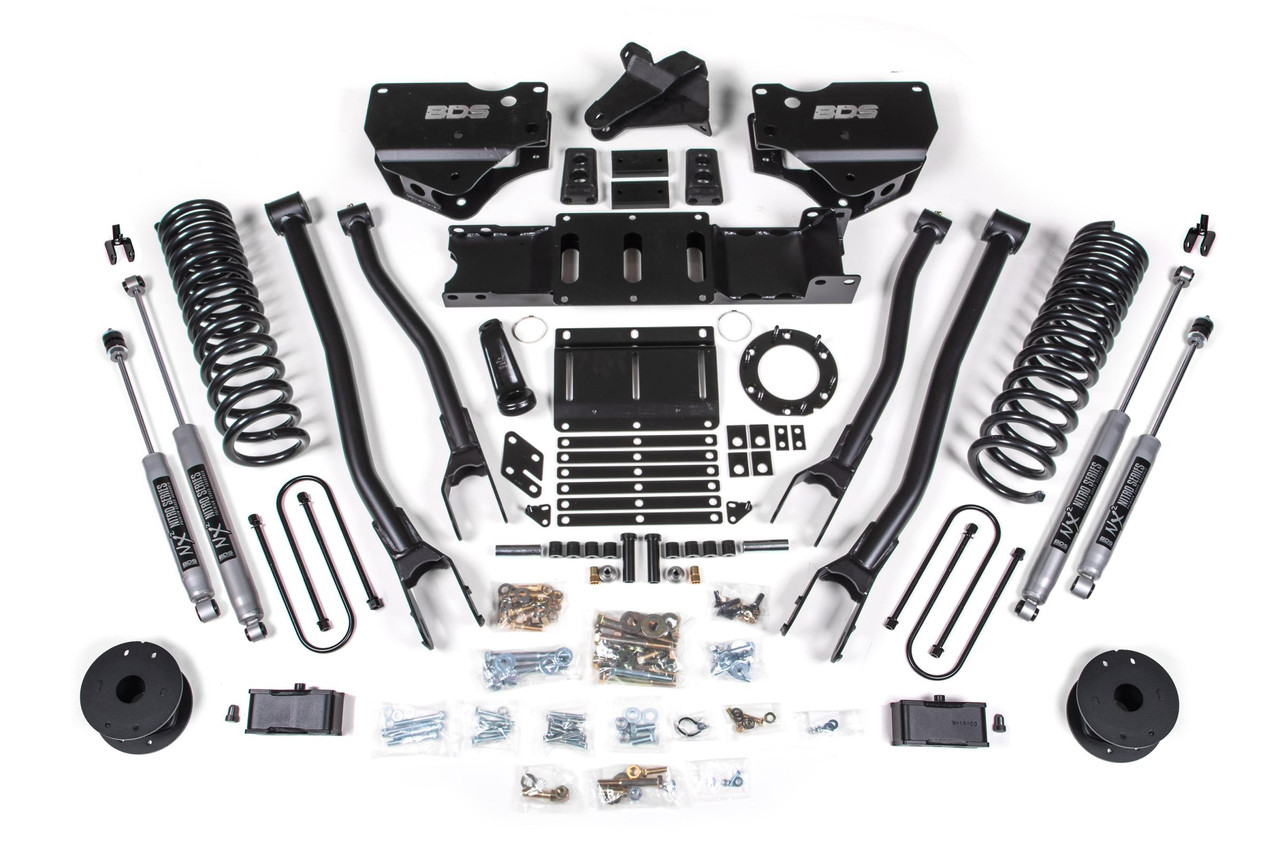

    Kit Components:

    • Includes one BDS012319, 2019-2024 Ram 3500 Auto Level Air Suspension 3 inch Rear w/o overload, UPC Code 711745611474
    • Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
    • Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
    • Includes two BDS032403, 2019-2024 Ram 2500/3500 Coil 4 inch Diesel - 5.5 inch Gas, UPC Code 711745612792
    • Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
    • Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
    • Includes two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1, UPC Code 692878899062

    The BDS SUSPENSION BDS1720FS 4 INCH LIFT KIT is a remarkable enhancement for your RAM 3500 diesel-powered truck, designed to elevate both performance and aesthetics seamlessly. Crafted specifically for 2019-2024 models with 4WD, this lift kit transforms your vehicle into a powerhouse, allowing clearance for up to 35-inch tires while maintaining optimal drivability.

    The kit features diesel-specific Pro-Ride coil springs at the front, ensuring a perfect blend of lift height and a smooth ride over various terrains. Its heavy-duty replacement radius arms and forged drop pitman arm optimize steering geometry, enhancing handling performance significantly. The inclusion of a track bar bracket and sway bar relocation ensures that stability and safety remain uncompromised during your rides.

    At the rear, the BDS1720FS utilizes high-strength fabricated lift blocks and heavy-duty air bag spacers, coupled with longer U-bolts and specially tuned NX2 Nitrogen or FOX 2.0 performance shocks that work together to deliver outstanding off-road capability and comfort. An important aspect of this lift kit is the 4-link conversion, which replaces factory components with robust brackets to correct axle positioning and improve overall handling dynamics.

    Versatile and robust, this lift kit also includes necessary components like an indexing ring and a new transmission crossmember to maintain the use of factory driveshafts, even after elevation. Engineered with attention to detail, each shock features a high-flow piston design and application-specific valving for maximum efficiency and reliability.

    Transform your RAM 3500 with the BDS 4 inch lift kit and experience a bold new look combined with enhanced performance and capability. It’s the perfect solution for truck enthusiasts looking for quality suspension upgrades!

    View AllClose

    Warranty Information

    Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
