BDS SUSPENSION

BDS SUSPENSION BDS1718FS 4 INCH LIFT KIT W/ RADIUS ARM RAM 3500 W/ REAR AIR RIDE 19-24 4WD DIESEL 6 BOLT FOX 2.0 PERFORMANCE SHOCKS

(No reviews yet) Write a Review
SKU:
BDS1718FS
MPN:
BDS1718FS
Shipping:
Calculated at Checkout
  • BDS SUSPENSION BDS1718FS 4 INCH LIFT KIT W/ RADIUS ARM RAM 3500 W/ REAR AIR RIDE 19-24 4WD DIESEL 6 BOLT FOX 2.0 PERFORMANCE SHOCKS
  • BDS SUSPENSION BDS1718FS 4 INCH LIFT KIT W/ RADIUS ARM RAM 3500 W/ REAR AIR RIDE 19-24 4WD DIESEL 6 BOLT FOX 2.0 PERFORMANCE SHOCKS
$2,808.93

Description

Take your factory rear air bag equipped RAM 3500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Block
  • Shocks Included: Yes
  • Front Lift Height: 4 inch
  • Rear Lift Height: 3 inch
  1. Fits OE equipped air ride systems only
  2. Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  3. Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  4. Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  5. Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
  • BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Tire Size: 37 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 5.625

Indexing Ring Option 6 Bolt Indexing Ring

  • Kits come standard with 6-Bolt indexing ring kit.

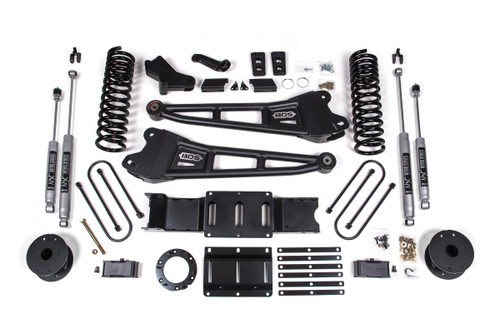

Kit Components:

  • Includes one BDS012319, 2019-2024 Ram 3500 Auto Level Air Suspension 3 inch Rear w/o overload, UPC Code 711745611474
  • Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
  • Includes two BDS032403, 2019-2024 Ram 2500/3500 Coil 4 inch Diesel - 5.5 inch Gas, UPC Code 711745612792
  • Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
  • Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
  • Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
  • Includes two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1, UPC Code 692878899062

Elevate your RAM 3500 diesel truck's performance and appearance with the BDS Suspension BDS1718FS 4-inch Lift Kit featuring a radius arm design. Crafted for trucks equipped with factory rear air ride, this kit provides a robust 4-inch lift in the front, along with a 3-inch lift in the rear, allowing for ample tire clearance up to 35 inches. With an emphasis on strength, durability, and ride quality, the BDS1718FS kit includes everything you need for a seamless upgrade.

A set of high-strength tubular radius arms replaces the factory components, ensuring enhanced strength and improved handling. Designed for precise caster adjustment, these arms facilitate a smoother ride while minimizing noise with OE-style rubber bushings. The kit's Pro-Ride coil springs are tailored specifically for diesel trucks, offering a progressive rate for exceptional comfort over varied terrain.

To maintain optimal steering geometry, a forged drop pitman arm, along with a heavy-duty track bar relocation bracket, are included, ensuring the front axle remains centered throughout suspension travel. With advanced design features like sway bar relocation and a robust transmission crossmember, both front and rear lift components work in harmony to correct driveline angles for improved handling.

The kit comes equipped with either BDS NX2 or FOX 2.0 Performance shocks, employing internal floating piston technology that significantly enhances ride quality and off-road capability. The durable aluminum body and high-flow piston design deliver responsive performance whether on the road or the trail.

Ideal for those looking to enhance their truck’s stance and capability, the BDS1718FS Lift Kit is the perfect blend of functionality and rugged aesthetics, ensuring your RAM 3500 stands strong, performs well, and conquers every adventure ahead.

View AllClose

Warranty Information

Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
