BDS SUSPENSION BDS1705H 4 INCH LIFT KIT W/ RADIUS ARM 2 INCH REAR BLOCK RAM 3500 19-24 4WD DIESEL WITH FACTORY REAR OVERLOAD LEAF 6 BOLT NX2 NITRO SHOCKS

Take your RAM 3500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Radius Arm
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

A DEF tank relocation bracket(part 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• 2 inch Rear block w/o overload

Rear Lift Option With Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Indexing Ring Option

6 Bolt Indexing Ring

Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).

The 8-bolt kit also
Includes an internal shaft seal extension and new shaft seal.
Shock Option NX2 Nitro Series

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

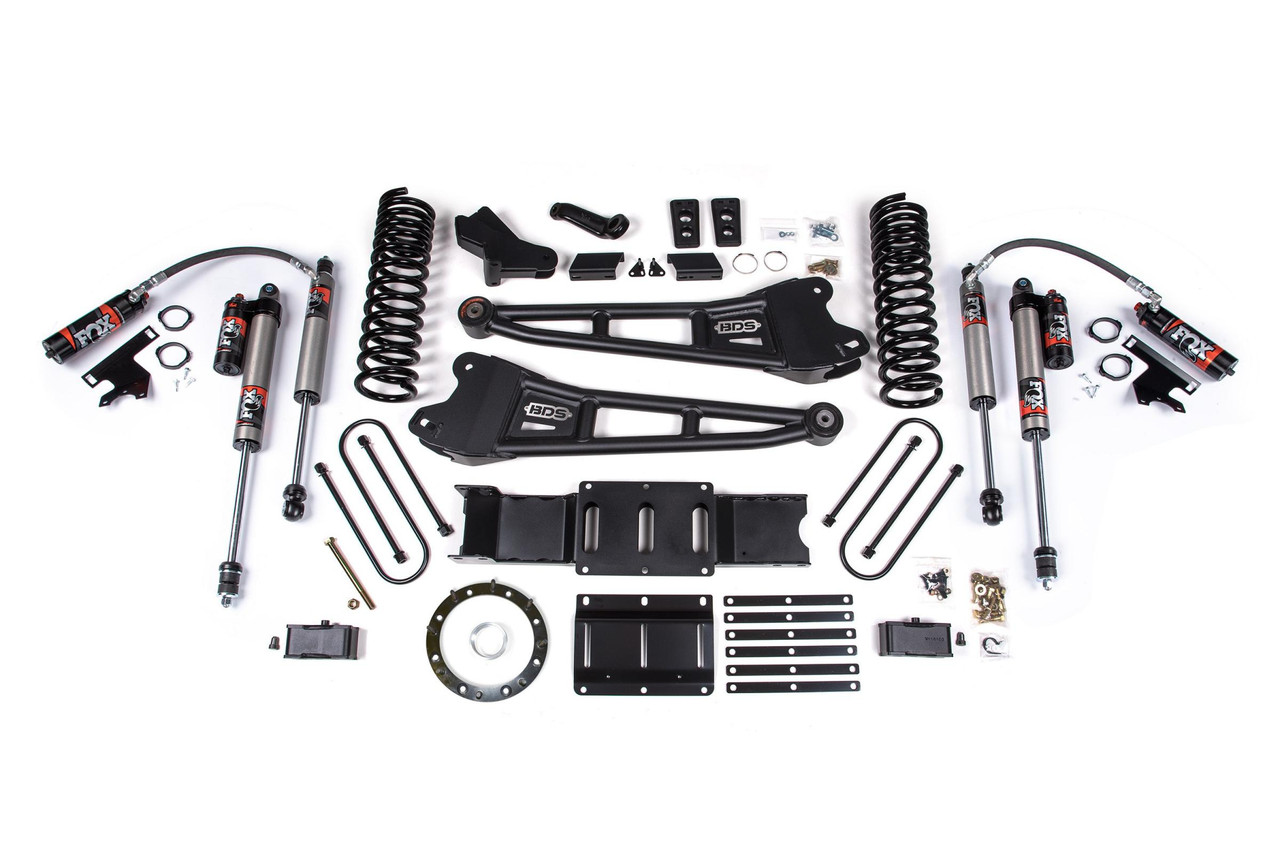

Kit Components:

• Includes one BDS012216, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612123
• Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
• Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
• Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686

The BDS Suspension BDS1705H 4 Inch Lift Kit with Radius Arm for the 2019-2024 RAM 3500 4WD Diesel is engineered to elevate both the performance and aesthetics of your truck. This comprehensive kit offers a substantial 4-inch lift at the front, enabling compatibility with oversized 35-inch tires, while providing a 2-inch rear lift for improved stance.

Crafted for durable performance, the kit includes diesel-specific Pro-Ride coil springs that deliver a smooth ride across various terrains, perfectly complementing the robust construction of the heavy-duty tubular radius arms. These radius arms, designed to replace the factory stamped steel versions, allow for caster adjustment, ensuring optimal handling and enhanced stability. The forged drop pitman arm and track bar bracket work in harmony to correct the steering geometry, keeping your truck responsive and precise even in challenging conditions.

Designed with off-road enthusiasts in mind, the BDS1705H comes equipped with high-performance NX2 Nitro gas shocks, or the option of FOX 2.0 shocks, which feature advanced velocity-sensitive valving for superior shock absorption. This means a comfortable ride on highways and rugged terrains alike.

Installation is streamlined, including an indexing ring and a new transmission crossmember that accommodate the factory front driveshaft. Furthermore, the rear of the kit utilizes a high-strength fabricated lift block and longer u-bolts, ensuring reliability under load. It’s important to note that models with factory rear overload leaf springs may require specific configurations, ensuring compatibility across different RAM 3500 setups.

Experience unmatched strength, enhanced handling, and a commanding presence on the road with the BDS1705H 4 Inch Lift Kit. Transform your RAM 3500 into a powerhouse that’s ready for any adventure.
