BDS SUSPENSION BDS1704FS 4 INCH LIFT KIT W/ RADIUS ARM 2 INCH REAR BLOCK RAM 3500 19-24 4WD DIESEL WITHOUT FACTORY REAR OVERLOAD LEAF 6 BOLT FOX 2.0 PERFORMANCE SHOCKS

Take your RAM 3500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Radius Arm
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

A DEF tank relocation bracket(part 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• 2 inch Rear block w/o overload

Rear Lift Option Without Factory Rear Overload Leaf

Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.

Indexing Ring Option

6 Bolt Indexing Ring

Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt).

The 8-bolt kit also
Includes an internal shaft seal extension and new shaft seal.

FOX 2.0 Performance Series

• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

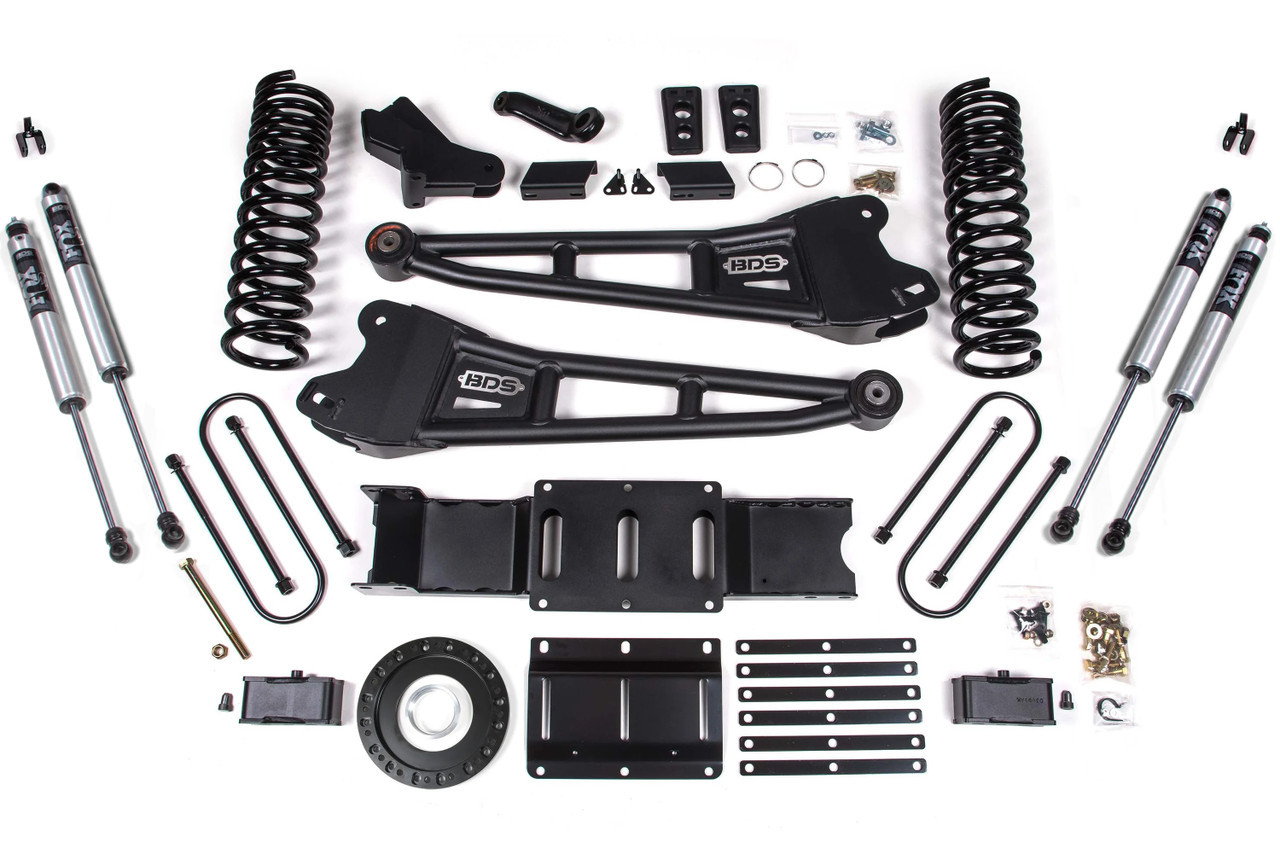

Kit Components:

• Includes one BDS012215, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612116
• Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
• Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

The BDS SUSPENSION BDS1704FS 4-Inch Lift Kit is meticulously crafted to elevate the performance and stance of your RAM 3500 diesel truck, ensuring an impressive upgrade for both off-road and on-road adventures. Engineered to accommodate 35-inch tires, this lift kit transforms your vehicle’s capability while maintaining optimal ride quality.

This comprehensive kit includes diesel-specific Pro-Ride coil springs that provide a balanced lift of 4 inches in the front and an additional 2 inches in the rear, achieved through a high-strength, fabricated lift block. The sturdy tubular radius arms replace the factory components, enhancing handling and caster control, making your truck more responsive and reliable across various terrains. The integration of a forged drop pitman arm and a heavy-duty track bar relocation bracket ensures precise steering geometry and maintains centered axle position throughout suspension travel.

Incorporating cutting-edge FOX 2.0 Performance shocks, this lift kit significantly improves ride performance, delivering superior control and comfort. Each shock features a CNC-machined aluminum design with an internal floating piston and race-developed high-flow piston technology, making them ideal for rugged environments and challenging conditions.

Installation is straightforward, with components such as an indexing ring and transmission crossmember provided to ensure seamless integration with factory driveshafts. Additional features, like sway bar correction brackets and brake line brackets, enhance safety and performance while preserving the factory’s ride quality.

Ideal for trucks without factory rear overload leafs, this lift kit fosters substantial improvements in both aesthetics and functionality. Elevate your RAM 3500 with the BDS1704FS Kit and experience the perfect balance of ruggedness and refined ride comfort. Make your truck a formidable force on and off the road.
